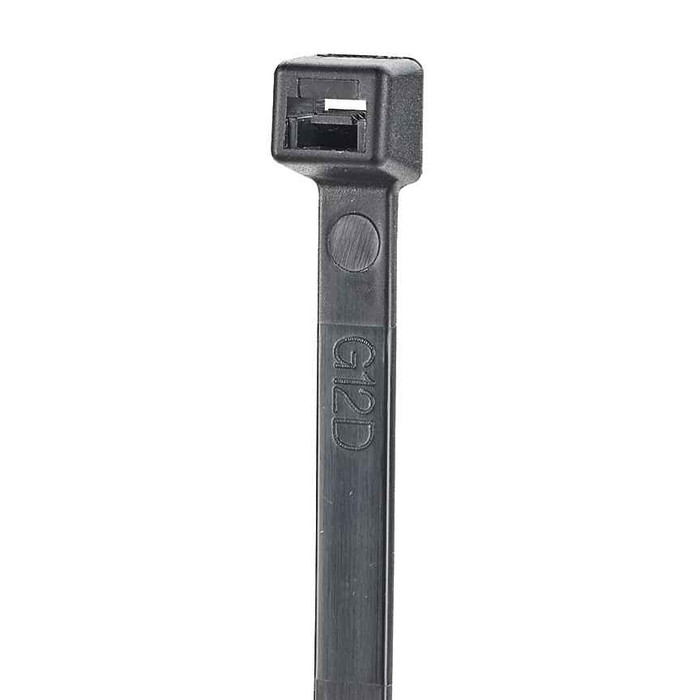

Panduit StrongHold Cable Tie 6.3" 50 lb Tensile Strength UV-Resistant Nylon 6.6

Panduit StrongHold Cable Tie 6.3" 50 lb Tensile Strength UV-Resistant Nylon 6.6

Professional-grade cable management with superior tensile strength and UV resistance

The Panduit StrongHold Cable Tie delivers reliable cable bundling performance with 50 lb minimum loop tensile strength and UV-resistant Nylon 6.6 construction. Designed for plenum environments, this 6.3" cable tie accommodates bundle diameters from 0.12" to 1.5" while maintaining consistent performance across temperature ranges from -40�F to 185�F. UL 62275 compliant and RoHS compliant construction ensures professional installation standards.

Professional Features & Benefits

• 50 lb Tensile Strength: Provides secure bundling for demanding applications with reliable holding power that won't fail under stress.
• UV-Resistant Nylon 6.6 Material: Ensures long-term durability in outdoor and high-UV environments without degradation or brittleness.
• Plenum Environment Rating: Meets fire safety requirements for installation in air handling spaces and critical building infrastructure.
• Wide Temperature Range (-40�F to 185�F): Maintains flexibility and strength across extreme temperature conditions for versatile installation environments.
• 1.5" Maximum Bundle Diameter: Accommodates substantial cable bundles while maintaining secure closure and professional appearance.
• UL 62275 Compliance: Meets rigorous safety standards for electrical installations and professional cable management systems.
• 6.3" Overall Length: Provides optimal length for most standard bundling applications with minimal waste and maximum efficiency.

Technical Specifications

• Application: General
• Arra Compliant: Y
• Body Thickness In : 0.051
• Body Thickness Mm : 1.3
• Body Width In : 0.19
• Body Width Mm : 4.8
• California Pro65 Cancer: No
• Country Of Origin: China, Thailand
• Ean: 6.13056E+11
• Environment: Plenum
• Gtin Carton: 5.06131E+13
• Gtin Package: 6.13056E+11
• Hazardous Material Flag: N
• Material Description: Nylon 6.6 (UV-Resistant)
• Maximum Bundle Diameter In : 1.5
• Maximum Bundle Diameter Mm : 38
• Maximum Operating Temperature C : 85
• Maximum Operating Temperature F : 185
• Mercury Content Indicator: N
• Min Order Qty: 1,000.00
• Minimum Bundle Diameter In : 0.12
• Minimum Bundle Diameter Mm : 3
• Minimum Loop Tensile Strength Lb : 50
• Minimum Loop Tensile Strength N : 222
• Minimum Operating Temperature C : -40
• Minimum Operating Temperature F : -40
• Overall Length In : 6.3
• Overall Length Mm : 160
• Pallet Quantity: 224,000
• Pallet Volume: 33.602431
• Pallet Weight: 586.88
• Product Color: Black
• Product Material: Nylon 6.6
• Product Segment: IEI
• Product Type: Cable Tie
• Reach Status: N
• Resistance Properties: UV-Resistant
• Rohs Compliant: Compliant
• Standard Carton Volume Ft3: 0.15
• Standard Carton Weight Pounds: 2.62
• Standard Package Volume Ft3: 0.015
• Standard Package Weight Pounds: 0.262
• Std Carton Height In: 7.8
• Std Carton Height Mm: 198.12
• Std Carton Length In: 10.1
• Std Carton Length Mm: 256.54
• Std Carton Width In: 5.7
• Std Carton Width Mm: 144.78
• Std Ctn Qty: 1000
• Std Package Height In: 1.5
• Std Package Height Mm: 38.1
• Std Package Length In: 8.1
• Std Package Length Mm: 205.74
• Std Package Width In: 5.15
• Std Package Width Mm: 130.81
• Std Pkg Qty : 100
• Std Pkg Uom: Piece

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Data Center Cable Management
• Telecommunications Infrastructure
• Industrial Control Panels
• Commercial Building Systems
• Plenum Space Installations
• Outdoor Equipment Connections
• HVAC System Wiring

Why Choose Panduit Quality?

Panduit StrongHold cable ties deliver proven reliability with UL 62275 compliance and RoHS compliant construction. The UV-resistant Nylon 6.6 material and plenum environment rating ensure long-term performance in demanding professional installations, backed by rigorous quality standards and consistent manufacturing excellence.
