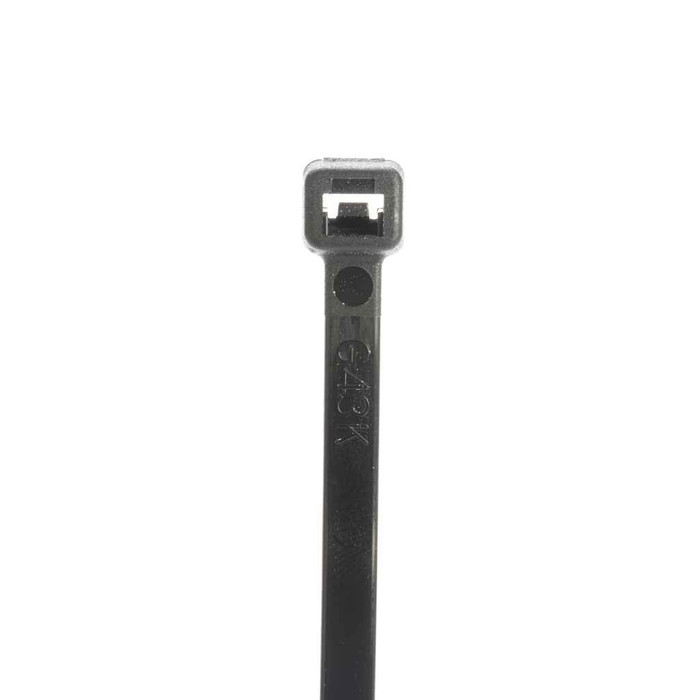

Panduit S7-50-C0 StrongHold, S7-50-C0 Cable Tie, Black, PA 6.6, 50lb Min Loop Tensile, 7.4"

Panduit StrongHold S7-50-C0 Cable Tie, Black Nylon 6.6, 100-Pack

(No reviews yet) Write a Review

Model: S7-50-C0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.06
$5.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold S7-50-C0 Cable Tie, Black Nylon 6.6, 7.4" 100-Pack

The Panduit StrongHold S7-50-C0 Cable Tie is a 7.4" black tie molded from UV-Resistant Nylon 6.6 (PA 6.6), engineered for secure bundling in demanding electrical and data environments. Rated for a 50lb minimum loop tensile strength (222N) and UL 62275 Compliant (Type 2, 21) for plenum use, it accommodates bundle diameters from 0.12" to 1.81" and operates from -40°F to 185°F. Sold in a 100-piece pack.

Key Features

  • Trade Size: 7.4" overall length accommodates bundle diameters from 0.12" (3mm) up to 1.81" (46mm).
  • Durable Construction: Molded from UV-Resistant Nylon 6.6 (PA 6.6) for long-term outdoor and plenum-rated durability.
  • StrongHold Design: Self-locking construction delivers a 50lb minimum loop tensile strength (222N) for secure bundle retention.
  • Body Dimensions: 0.19" body width and 0.051" body thickness for a low-profile, snag-resistant bundle.
  • Wide Operating Range: Performs from -40°F (-40°C) up to 185°F (85°C).
  • Plenum-Rated: Designed for plenum environment installations under UL 62275 Type 2, 21 compliance.
  • Finish: Black color for standard bundling applications.

Certifications & Compliance

  • UL 62275 Compliant (Type 2, 21)
  • RoHS Compliant

Technical Specifications

  • Overall Length In: 7.4
  • Overall Length Mm: 188
  • Body Width In: 0.19
  • Body Width Mm: 4.8
  • Body Thickness In: 0.051
  • Body Thickness Mm: 1.3
  • Minimum Loop Tensile Strength Lb: 50
  • Minimum Loop Tensile Strength N: 222
  • Maximum Bundle Diameter In: 1.81
  • Maximum Bundle Diameter Mm: 46
  • Minimum Bundle Diameter In: 0.12
  • Minimum Bundle Diameter Mm: 3
  • Maximum Operating Temperature F: 185
  • Maximum Operating Temperature C: 85
  • Minimum Operating Temperature F: -40
  • Minimum Operating Temperature C: -40
  • Material Description: Nylon 6.6 (UV-Resistant)
  • Resistance Properties: UV-Resistant
  • Environment: Plenum
  • Std Pkg Qty: 100
  • Std Ctn Qty: 1000
  • Country Of Origin: Thailand, China

Typical Applications

  • Cable and Wire Bundling in Electrical Installations
  • Data Center and IT Infrastructure Cabling
  • Plenum-Rated Ceiling and Air-Handling Space Installations
  • Commercial and Industrial Wire Management
  • Outdoor and Wet-Location Bundling with UV-Resistant Nylon

Why Panduit?

Panduit's StrongHold cable ties are molded from UV-Resistant Nylon 6.6 for long-term performance in harsh electrical and IT environments, backed by UL 62275 compliance (Type 2, 21) and RoHS compliance for consistent quality. The S7-50-C0's 50lb minimum loop tensile strength and wide -40°F to 185°F operating range make it a dependable choice for professional cable management.

Manufacturer Resources

Product Specs

Arra Compliant:
Y
Body Thickness In :
0.051
Body Thickness Mm :
1.3
Body Width In :
0.19
Body Width Mm :
4.8
California Pro65 Cancer:
No
Country Of Origin:
Thailand, China
Ean:
6.13056E+11
Environment:
Plenum
Gtin Carton:
5.06131E+13
Gtin Package:
6.13056E+11
Hazardous Material Flag:
N
Material Description:
Nylon 6.6 (UV-Resistant)
Maximum Bundle Diameter In :
1.81
Maximum Bundle Diameter Mm :
46
Maximum Operating Temperature C :
85
Maximum Operating Temperature F :
185
Mercury Content Indicator:
N
Min Order Qty:
1,000.00
Minimum Bundle Diameter In :
0.12
Minimum Bundle Diameter Mm :
3
Minimum Loop Tensile Strength Lb :
50
Minimum Loop Tensile Strength N :
222
Minimum Operating Temperature C :
-40
Minimum Operating Temperature F :
-40
Overall Length In :
7.4
Overall Length Mm :
188
Pallet Quantity:
160,000
Pallet Volume:
33.145255
Pallet Weight:
436.8
Product Color:
Black
Product Material:
Nylon 6.6
Product Segment:
IEI
Product Type:
Cable Tie
Reach Status:
N
Resistance Properties:
UV-Resistant
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.2072
Standard Carton Weight Pounds:
2.73
Standard Package Volume Ft3:
0.0207
Standard Package Weight Pounds:
0.273
Std Carton Height In:
5.75
Std Carton Height Mm:
146.05
Std Carton Length In:
9.8
Std Carton Length Mm:
248.92
Std Carton Width In:
9.7
Std Carton Width Mm:
246.38
Std Ctn Qty:
1000
Std Package Height In:
1.55
Std Package Height Mm:
39.37
Std Package Length In:
10.15
Std Package Length Mm:
257.81
Std Package Width In:
5.1
Std Package Width Mm:
129.54
Std Pkg Qty :
100
Std Pkg Uom:
Piece
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100

Panduit S7-50-C0 – Frequently Asked Questions

1) Can I use these cable ties above a drop ceiling in a plenum air-handling space?
Yes. The S7-50-C0 is rated for plenum environments and is UL 62275 Compliant as Type 2, 21, which is the plenum designation, so it can be used in air-handling ceiling spaces for data and electrical bundling.
2) Will a nylon cable tie hold up outdoors in sunlight and freezing weather?
This one is built for it. The tie is molded from UV-resistant Nylon 6.6, and its rated operating range runs from -40 F (-40 C) up to 185 F (85 C), so exterior runs, rooftop equipment, and unheated garages are all inside spec. Standard natural nylon ties without the UV package are the ones that chalk and snap in sun.
3) Is a 50 lb tensile cable tie strong enough for supporting bundled cable runs?
The S7-50-C0 carries a 50 lb minimum loop tensile strength (222 N), which is the standard intermediate strength class used for general electrical and communications bundling. It is a bundling tie, not a load-bearing hanger, so cable trays and J-hooks still carry the weight of a long run; the tie keeps the bundle dressed and together.
4) How many Panduit S7-50-C0 ties come in a pack, and what is the minimum order?
They ship 100 pieces per standard package, 1,000 per standard carton, and the minimum order quantity is 1,000 pieces, so plan on a full carton. A pallet runs 160,000 pieces for stocking distributors.
5) How wide is the strap on this tie, and will it cut into low-voltage cable jackets?
The strap is 0.19 inch (4.8 mm) wide and 0.051 inch (1.3 mm) thick. That width spreads clamping load over the jacket rather than biting a narrow line into it, and the thin low-profile body keeps the head from snagging when you pull bundles through a sleeve or over a tray rail. Snug it, don't crank it, on fiber or Cat 6A.
6) Is the black version of this tie the one I want for exposed exterior work?
Yes, black is the color to use outdoors. The S7-50-C0 is black Nylon 6.6 with the UV-resistant formulation, and carbon-pigmented black nylon is the standard choice for sun exposure. Natural (white) ties are for indoor, protected runs.
7) What is the exact part number and shipping carton size for the Panduit StrongHold 7.4 inch 50 lb black tie?
Order it as Panduit S7-50-C0. The 1,000-piece standard carton measures 9.8 x 9.7 x 5.75 inches, 0.2072 cubic feet, and weighs 2.73 pounds; a single 100-piece package weighs 0.273 pounds.
