Sure-Loc Logan Single Cylinder Deadbolt

Sure-Loc Logan Single Cylinder Deadbolt

(No reviews yet) Write a Review

Model: DB201-LN 11P
From the Ridgecrest Collection
$91.49
$63.72
Selected Finish is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.49
$63.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sure-Loc Logan Single Cylinder Deadbolt

The Sure-Loc Logan Single Cylinder Deadbolt is a single-cylinder deadbolt from Sure-Loc, part of the Ridgecrest collection. Available in Vintage Bronze, Satin Nickel, Flat Black and Satin Brass finishes, so it coordinates with the rest of the Sure-Loc Logan line.

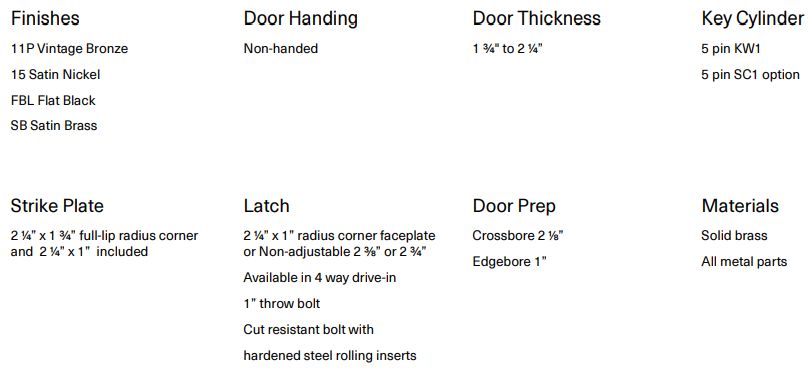

Specifications

  • Solid brass housing Cut resistant bolt with hardened steel rolling inserts Fixed 2⅜″ or 2¾″ (60-70mm) backset Fits doors 1¾″ – 2¼″ (45-55mm) thick RESOURCES Logan-Deadbolt Cutsheet

Sure-Loc bored locks fit standard residential door preparation with an adjustable 2-3/8" or 2-3/4" backset and reversible handing, and ship direct from the manufacturer.

Manufacturer Resources

Product Specs

Subcategory:
Deadbolts
Collection:
Ridgecrest
Product Type:
Deadbolts
Product Group:
Mechanical Locks
Product Subgroup:
Deadbolts
Commercial/Residential:
Residential
Lock Function:
Deadbolt
Keyed:
Yes
Series:
Logan
Theme:
Contemporary
Electronic:
No
Product Function:
Cylinder x Thumbturn
Product Style:
Logan
Product Material:
Brass
Product Substrate:
Stainless Steel
Product Category:
Mechanical Locks
Department:
Door Hardware

Sure-Loc DB201-LN 11P – Frequently Asked Questions

1) Is the Sure-Loc Logan deadbolt keyed on both sides or does it have a thumbturn inside?
Cylinder outside, thumbturn inside. The Logan DB201 is a single cylinder deadbolt, so it keys from the exterior and throws by hand from the interior with no key needed to get out. If you need a key on both sides, which is what some jurisdictions and insurers want next to glass, that's a double cylinder and the Logan is not it. Double cylinder options include the Baldwin Reserve Contemporary Round or Square deadbolt and the Callan Model 210S.
2) Can I get Sure-Loc Logan deadbolts keyed alike across a set of rental units?
Yes, and it's a no-charge option at order. The Logan DB201 is offered keyed alike or keyed different, so you can run one key across several doors in a unit or building, or keep every door on its own key. Keyed alike sets need to be ordered together as one set so they're cut to the same bitting.
3) Does the Sure-Loc Logan deadbolt come in a Kwikset or Schlage keyway?
Both. The Logan deadbolt is ordered with either a 5-pin KW1 keyway, which is the standard, or a 5-pin SC1. That matters if you're adding a door to a building already keyed one way: pick the keyway your existing keys are cut on and the new deadbolt can be keyed into that system. KW1 is the Kwikset/Weiser family and SC1 is the Schlage family.
4) Is the Sure-Loc Logan DB201 deadbolt rated for a commercial entry door?
The Logan DB201 is a residential deadbolt. It suits houses, apartment unit doors, and light multi-family entries. For a commercial opening, a business entrance, a school, or anything on an exit door with traffic behind it, go to a commercial-rated deadbolt instead: the Accentra D111 or the Delaney LM Series are Grade 1 cylinder-by-thumbturn deadbolts, and the Cal-Royal CB160 or Arrow DBX61 are Grade 2 single cylinder options.
5) I need a double cylinder deadbolt instead of a thumbturn - what takes the place of the Logan?
The Logan is a cylinder x thumbturn deadbolt, keyed outside with a turn inside, so it will not serve an opening that requires a key on both faces. The Dexter DB2000 double cylinder is a Grade 2 deadbolt for 1-3/8 inch to 1-3/4 inch doors, the Delaney LU Series is a Grade 2 double cylinder deadbolt in stainless steel US32D, and the Design Hardware D1 Series is a Grade 1 extra heavy duty double cylinder deadbolt for 1-3/4 inch doors. Confirm your local code allows a double cylinder on the opening before specifying one.
6) The Logan has a fixed backset - what single cylinder deadbolt has an adjustable backset if I do not know the bore?
The Logan ships with a fixed 2-3/8 inch or 2-3/4 inch backset, so the backset has to be known at time of order. Where the bore is unverified, the Brinks Raleigh Series is a transitional round single cylinder deadbolt with a 4-way adjustable backset, the Brinks Mendocino Series is the contemporary square equivalent with the same adjustable backset, and the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with adjustable backset for 1-3/8 inch to 1-3/4 inch doors. All are cylinder x thumbturn like the Logan.
7) I need a fire rated deadbolt for a labeled door - can I use the Logan?
The Logan is a residential-duty deadbolt and is specified for standard entry openings. Where a labeled opening drives the selection, the Hager 3215 is a Grade 2 single cylinder deadbolt with a 1 inch throw carrying a fire rating for 1-3/8 inch to 1-3/4 inch doors, the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder, also fire rated over that range, and the Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
8) Can I key the Logan into an existing small format interchangeable core system?
The Logan takes a standard 5-pin cylinder in KW1 or SC1 and can be ordered keyed alike or keyed different. For an opening that has to accept an SFIC core from your existing system, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt prepped for an interchangeable core with a 2-3/4 inch backset, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LM Series is a Grade 1 single cylinder less core deadbolt in dull chrome US26D.
9) How well does the Sure-Loc Logan deadbolt hold up to someone attacking the bolt with a saw?
The bolt is cut resistant, with hardened steel rolling inserts. Those inserts spin under a hacksaw or reciprocating blade instead of letting it bite, which is the usual defense against a bolt-cutting attack through the gap between door and frame. The housing is solid brass over a stainless steel substrate.
10) What finishes does the Sure-Loc Logan deadbolt come in, and will it match my other door hardware?
Four finishes: 11P Vintage Bronze, 15 Satin Nickel, FBL Flat Black, and SB Satin Brass. The Logan is a contemporary-styled deadbolt in the Ridgecrest collection, so if you are matching levers or knobs on the same opening, staying inside Sure-Loc's Ridgecrest line in the same finish code is the cleanest way to get a match across the door.
11) I need a deadbolt on a thick 2-1/4 inch entry door. What are my options?
The Sure-Loc Logan DB201 handles it. Its range runs to 2-1/4 inches (55mm), which is wider than most residential deadbolts reach. Among commercial alternatives, the Corbin Russwin DL3011 cylindrical deadlock is listed for 1-3/4 to 2-1/4 inch doors, though that one is cylinder by blank plate rather than a thumbturn, so nobody can throw or retract it from the inside without a key.
12) What deadbolt matches the Logan's contemporary look if I want a square rose instead of round?
The Logan is a contemporary-styled deadbolt sold in Vintage Bronze, Satin Nickel, Flat Black and Satin Brass. For a square trim shape in the same cylinder x thumbturn function, the Bravura 310SC Elite is a Grade 2 contemporary square deadbolt and the Brinks Mendocino Series is a contemporary square single cylinder deadbolt with a 4-way adjustable backset. If round contemporary trim is what you are after, the Bravura 310RC Elite is the round counterpart in the same Grade 2 Elite family.
13) Is the Arrow E60 exit deadlock a substitute for the Logan single cylinder deadbolt?
No. The Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate outside and a thumbturn inside, so it cannot be opened by key from the exterior. The Logan is a keyed cylinder x thumbturn deadbolt. If the exterior face needs to be keyed, the Arrow DBX61 is the keyed Grade 2 single cylinder deadbolt in the Arrow line. The Callan Model 205S is likewise a one-sided half-bore deadbolt, not a keyed two-sided lock.
14) Is the Corbin Russwin DL3011 the same kind of deadbolt as the Logan?
They are not interchangeable. The Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock configured cylinder x blank, meaning the inside face carries no thumbturn, and it covers 1-3/4 inch to 2-1/4 inch doors. The Logan is cylinder x thumbturn, keyed outside with a turn on the inside, and fits the same 1-3/4 inch to 2-1/4 inch thickness. The DL2211 and DL3211 in the Corbin Russwin line are likewise cylinder x blank and are specified for 1-3/4 inch doors.
15) What deadbolt gives me keypad or credential access instead of a key like the Logan uses?
The Logan is a mechanical, non-electronic deadbolt operated by key outside and thumbturn inside. Where credential or code access is required, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Codelocks CL2200 is an electronic surface deadbolt in brushed steel, and the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override. Those change the door prep and power considerations relative to a mechanical bolt.
16) Will a mortise deadbolt work in place of the Logan on a bored door?
No, the prep is different. The Logan is a tubular deadbolt for a bored door with a fixed 2-3/8 inch or 2-3/4 inch backset. The Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch, square and round trim respectively, and the Dormakaba D900 is a small case mortise deadbolt with a D cylinder. Each of those requires a mortise pocket cut into the door edge rather than a cross bore and edge bore.
17) What single cylinder deadbolt should I standardize on across a school or classroom building instead of the Logan?
The Logan is a residential-duty deadbolt. For classroom-function openings, the Falcon D111 is a Grade 1 heavy duty classroom deadbolt with adjustable backset in the D100 Series, the Falcon D211 is the Grade 2 medium duty classroom-function version with single cylinder operation, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder for 1-3/8 inch to 1-3/4 inch doors. Choosing within one series keeps keying and trim consistent across the building.
18) Is the BEST 8T tubular deadbolt tube a replacement for the Logan deadbolt?
No. The BEST 8T is a T Series tubular deadbolt tube component, the bolt assembly on its own rather than a complete lock with outside cylinder and inside thumbturn. The Logan is a complete keyed cylinder x thumbturn deadbolt. Two other items that read like deadbolts but are not complete locks: the Baldwin Reserve 8BR0618001 is a deadbolt spacer for double cylinder applications, and the Arrow 460 is a mortise lock strike for latchbolt and deadbolt functions with a straight lip.
19) What Grade 2 single cylinder deadbolt has a tamper resistant cylinder guard for an exposed exterior door?
The Logan uses a cut resistant bolt with hardened steel rolling inserts in a solid brass housing. Where the cylinder face itself is the exposure, the Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard. The Bravura 310B Elite is a Grade 2 traditional round single cylinder deadbolt and the Deltana CL200LM is a Grade 1 single cylinder deadbolt, both in the same cylinder x thumbturn function as the Logan.
20) Is the Sure-Loc Logan deadbolt a smart lock or does it need batteries?
Neither. The Logan DB201 is a mechanical deadbolt with a key cylinder and a thumbturn, no electronics, no batteries, no app. If you want keypad or credential entry on that door, look at an electronic deadbolt like the Delaney KP400 with programmable remote, or the Dormakaba Saffire LX-D RFID electronic deadbolt for multi-housing.
21) What is a solid brass alternative to the Logan deadbolt if I want a heavier decorative look?
The Logan has a solid brass housing in a contemporary style with Vintage Bronze, Satin Nickel, Flat Black and Satin Brass finishes. For a heavier decorative treatment in the same keyed cylinder x thumbturn function, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt. The Emtek 8323 Modern Disc is a brass deadbolt but in double cylinder configuration, so it keys on both faces rather than carrying a thumbturn.
