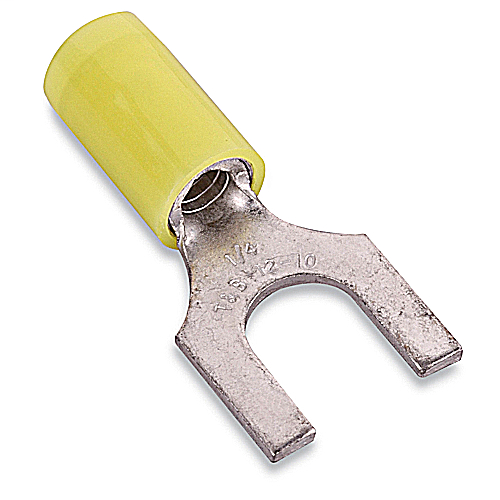

Thomas & Betts RC10-10F T&B RC10-10F Ins Nyl Fork Term 12-10 #10 Yellow
Model: TB-RC10-10F
T&B RC10-10F Ins Nyl Fork Term 12-10 #10 Yellow
Features
Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded...
Thomas & Betts
$53.03
$3.03

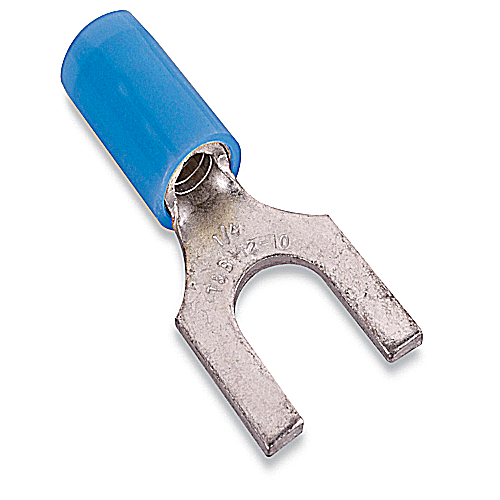

T&B RB14-10F Ins Nyl Fork Term 18-14 #10 Blue
Certifications
- CSA
- UL
Features
- Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Manufacturer Resources
Product Specs

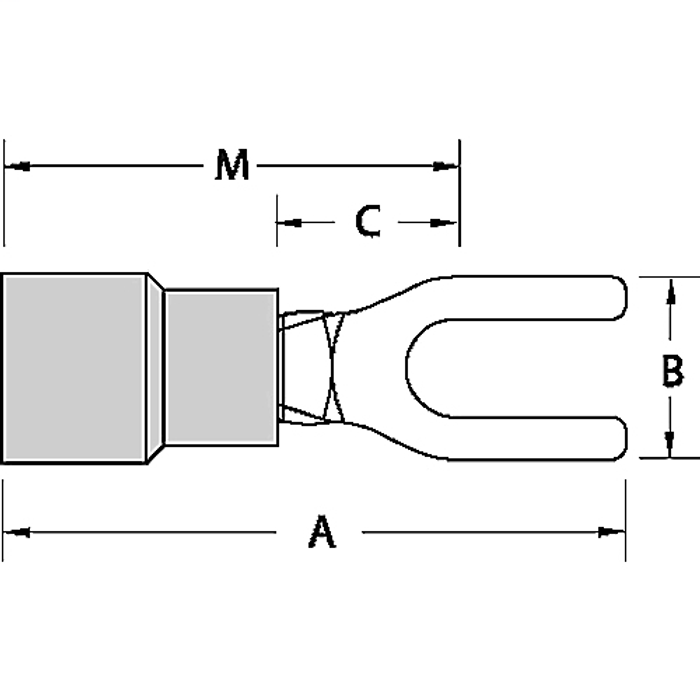

- A Inches :
- 0.87
- Alternate Package Qty:
- RB1153
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
- B Inches :
- 0.38
- C Inches :
- 0.25
- Color:
- Blue
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches :
- 0.71
- Material:
- Copper
- Maximum Insulation Inches :
- 0.162
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.8
- Package Length:
- 15.1
- Package Type:
- Standard
- Package Width:
- 9.5
- Product Group:
- Terminals
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #10
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.88 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- Department:
- Electrical
- Product Subgroup:
- Insulated Terminals
