T&B RC10-14X 12-10 INS RING TERM
Features
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
Certifications
- CSA
- UL
Manufacturer Resources
Product Specs

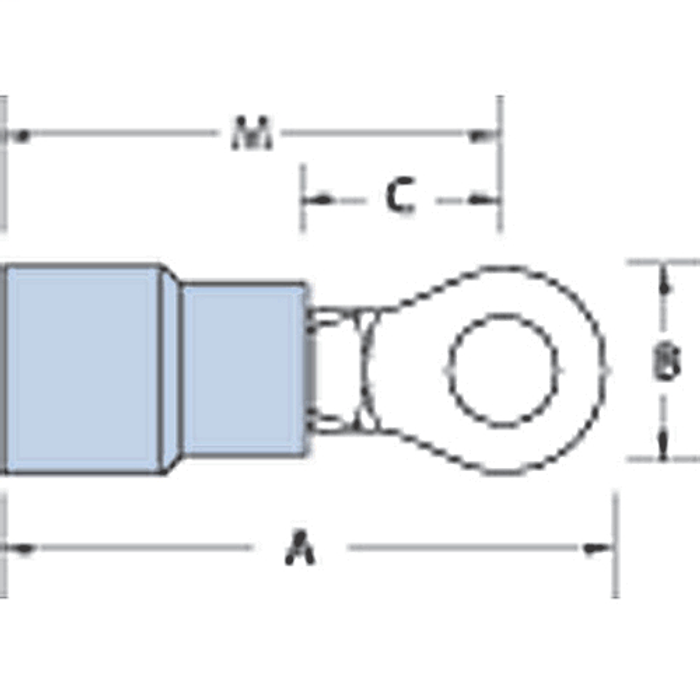

- A Inches :
- 1.22
- Alternate Package Qty:
- RC714
- Application Tools:
- WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
- B Inches :
- 0.53
- C Inches :
- 0.32
- Color:
- Yellow
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 50
- Insulation Type:
- Expanded Insulated Nylon
- M Inches :
- 0.96
- Material:
- Copper
- Maximum Insulation Inches :
- 0.25
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 8.9
- Package Length:
- 15
- Package Type:
- Standard
- Package Width:
- 9.3
- Product Group:
- Hardware
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.04
- Stud Size:
- 4-Jan
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 7.5 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RC
- Voltage Rating:
- 600V
- Wire Range:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Rings
