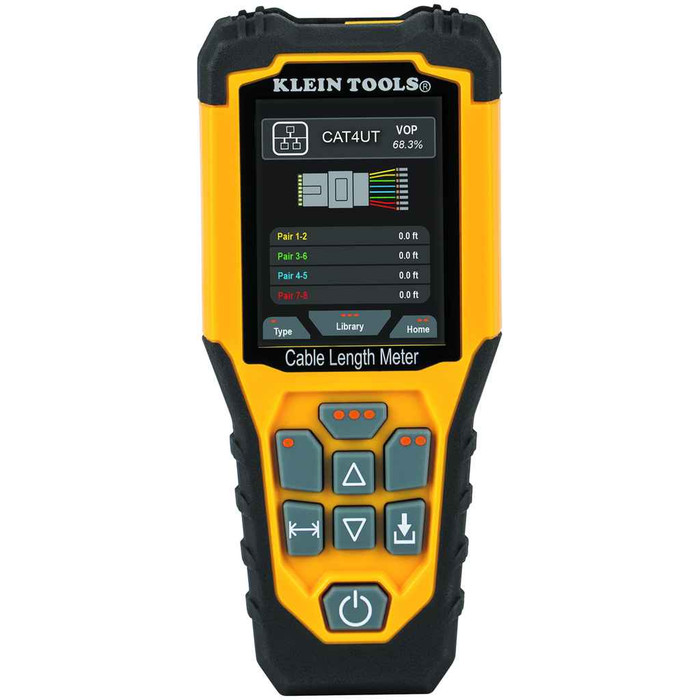

TDR Cable Length Meter
501-915 - spec sheet
Warnings
- The Cable Length Meter should NOT be used on energized cabling systems.
- Internal components of the Cable Length Meter are protected up to 30V peak AC or DC. Connecting the meter to voltages above this range may pose a safety hazard to the user and the meter.
Features
- Includes padded carrying case and leads
- RJ45 jack for accurate length measurement of terminated data cables
- TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
- Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex® and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
- Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)
- Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types
- Velocity of Propagation Range: 20 to 99.9%
- Simple interface with full color, interactive LCD
- Measurements can be switched between and metric and imperial units
- Cable length meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)
- Stores custom cable VoP values for consistently accurate results and time savings
501-915 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- VDV500123
- Batteries:
- 2 × AA Alkaline
- Battery Life:
- Active - Approx 15 hr; Standby - Approx 3 yr.
- Cable Type:
- Coaxial, Data, Electrical
- Connection Adapter Types:
- Alligator clips, Female Coax-F, Male Coax-F, RJ45, BNC
- Display:
- Backlit LCD
- Drop Protection:
- 6.6' (2 m)
- Faults Detected:
- Distance-to-Fault, Open or Short
- Item Depth:
- 2.7140 in
- Item Height:
- 6.2350 in
- Item Weight:
- 0.4760 lbs
- Item Width:
- 1.4300 in
- Material:
- ABS Plastic
- Multiple Style Tone Generator:
- Two Tones
- Overall Height:
- 6.2" (15.7 cm)
- Overall Length:
- 2.7" (6.9 cm)
- Overall Width:
- 1.4" (3.6 cm)
- Replacement Parts:
- 770910
- Test Measure Types:
- Length, Distance-to-Fault
- Type:
- Cable Meter
- Weight:
- 7.6 oz (215 g) without batteries
