Ideal Industries Test-Tone-Trace Kit

Professional Voice-Data-Video Cable Testing and Tracing Solution

The Ideal Industries Test-Tone-Trace Kit delivers professional-grade cable testing and tracing performance for voice, data, and video installations. This comprehensive testing solution features VDV multimedia cable tester with LCD display and Pro amplifier probe designed for electricians, telecommunications professionals, and low-voltage installers, providing the reliable performance and industry-leading quality that electrical professionals demand.

Professional Features & Benefits

Advanced Testing Capabilities

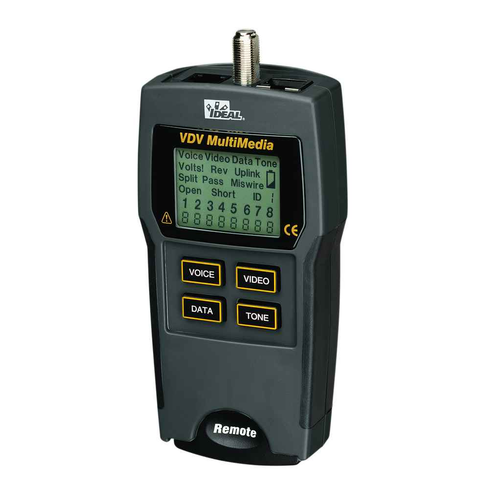

• Voice-Data-Video LCD Wiremap Tester - Tests RJ-45, RJ-11/12, and coax cables with pin-to-pin error identification for reliable installations

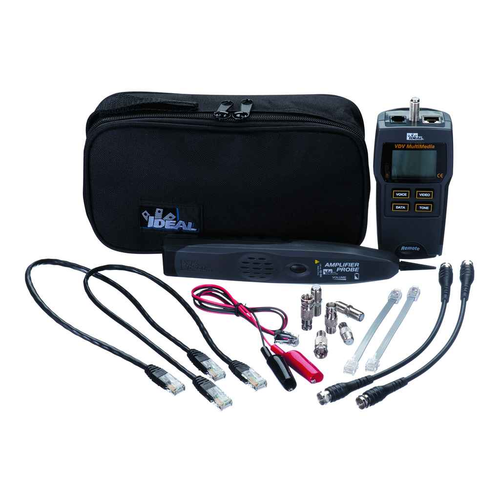

• Pro Amplifier Probe with Volume Control - Audibly amplifies analog signals with plastic tip to prevent sparking in energized systems
• Built-in Tone Generator with 4 Selectable Tones - Locates and identifies cables within bundles with pin, pair, or all conductor toning options
• Comprehensive Error Detection - Identifies opens, shorts, miswires, reversals, split pairs, and shield continuity issues

Safety and Compliance Features

• Plastic Probe Tip Design - Prevents sparking in energized systems for enhanced electrical safety
• 9V Battery Operation - Safe low-voltage operation with included batteries for reliable field performance
• Professional Grade Construction - Durable design meets electrical contractor standards for daily jobsite use

Technical Specifications

Compatible with Cat 3/5/5e/6/6a twisted pair cables and RG59/6/6 Quad coax cables. Features RJ-45 (8P8C), RJ-11/12 (6P6C/6P4C), and Female F port interfaces. LCD display shows PASS/ERROR results with pin-to-pin wiremap visualization. Includes main remote for far-end termination, carrying case, patch cables, alligator clips, BNC and RCA adapters. Operating temperature suitable for indoor and outdoor installations.

Installation & Setup

1. Connect main remote to far end of cable run for professional testing setup
2. Select appropriate test mode - Data for RJ-45, Voice for RJ-11/12, or Video for coax cables
3. Activate wiremap test to verify proper cable termination and continuity
4. Use tone generator with amplifier probe to trace and identify cables within bundles
5. Review LCD display for PASS/ERROR results and specific error type identification
6. Document test results for code compliance and installation verification

Professional Applications

Ideal for:

• Data Communications Installation - Cat 5e/6/6a Ethernet cable testing and certification for network infrastructure
• Voice System Installation - Phone system wiring verification and troubleshooting for commercial buildings
• Video System Installation - Coax cable testing for security cameras and video distribution systems
• Low Voltage Electrical Work - Structured cabling verification for commercial and residential projects
• Telecommunications Infrastructure - Cable plant testing and maintenance for telecom installations
• Network Troubleshooting - Field testing and problem identification for existing cable installations
• Cable Plant Certification - Pre-installation and post-installation testing for code compliance
• Maintenance and Repair - Ongoing cable system verification and fault location services

All-in-One Testing Advantage

The Ideal Industries Test-Tone-Trace Kit combines three essential functions - testing, toning, and tracing - in one comprehensive solution. This integrated approach eliminates the need for multiple tools while providing accurate wiremap testing, precise cable identification, and reliable signal tracing capabilities that electrical and telecommunications professionals require for efficient installations.

Why Choose Ideal Industries Quality?

Ideal Industries commitment to professional-grade testing equipment ensures reliable performance and accurate results for electrical contractors and telecommunications installers. The Test-Tone-Trace Kit delivers the precision, durability, and comprehensive functionality needed for code-compliant installations and efficient troubleshooting in voice, data, and video applications.
