Thomas & Betts 90 Degree Non-I...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$30.13

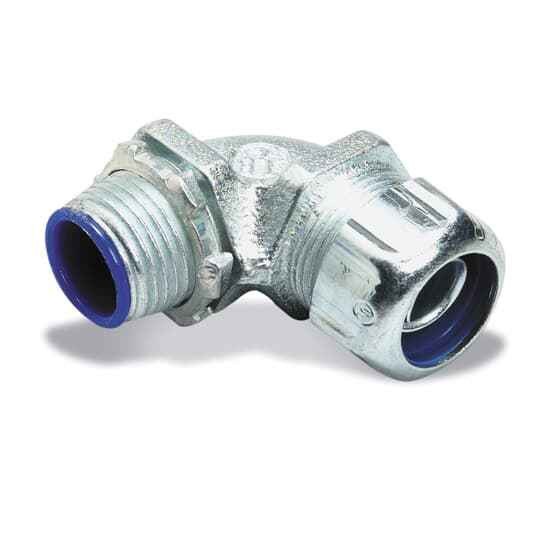

Thomas & Betts 90 Degree Non-Insulated Malleable Iron Strain Relief Connector

Thomas & Betts 90 Degree Non-Insulated Malleable Iron Strain Relief Connector

(No reviews yet) Write a Review

Model: 5253

In Stock (leaves warehouse same day if ordered before 3pm ET)

$30.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts 1-1/4 Inch 90 Degree Non-Insulated Malleable Iron Strain Relief Connector

Professional 90 Degree Electrical Connection Solution

The Thomas & Betts 1-1/4 inch 90 degree non-insulated strain relief connector delivers reliable electrical connections with malleable iron construction for demanding applications. This professional-grade connector provides secure conduit termination with 90 degree configuration for space-efficient installations where directional changes are required.

Professional Features & Benefits

  • 1-1/4 Inch Size: Accommodates standard conduit diameter for versatile electrical installations and compatibility with common wiring systems.
  • 90 Degree Configuration: Enables efficient directional changes in conduit runs while maintaining secure electrical connections in tight spaces.
  • Non-Insulated Design: Provides direct electrical continuity and grounding path for applications requiring metallic connection integrity.
  • Malleable Iron Construction: Delivers exceptional durability and corrosion resistance for long-term performance in demanding environments.
  • Strain Relief Function: Protects cables and conductors from mechanical stress at connection points, extending system reliability.
  • Professional Connector Design: Ensures secure attachment and proper sealing for electrical safety and code compliance.

Technical Specifications

  • Department: Electrical
  • Material: Malleable Iron
  • Number Of Batteries: 0
  • Product Group: Connectors
  • Product Subgroup: Strain Relief Connectors
  • Product Type: Connectors-90 Degree

Professional Applications

  • Commercial Electrical Installations
  • Industrial Conduit Systems
  • Residential Electrical Projects
  • Professional Electrical Contracting
  • Maintenance and Repair Operations
  • Code-Compliant Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts strain relief connectors provide dependable performance with malleable iron construction that ensures long-lasting durability and reliable electrical connections. Professional contractors trust Thomas & Betts quality for critical electrical applications requiring secure, code-compliant connections.

Manufacturer Resources

Product Specs

Number Of Batteries:
0
Product Group:
Conduit & Raceway
Department:
Electrical
Product Subgroup:
Liquidtight Conduit & Fittings
Product Material:
Malleable Iron
Product Type:
90 Degree Liquidtight Connector

Thomas & Betts 5253 – Frequently Asked Questions

1) Is the Thomas & Betts 5253 connector insulated, and does that matter for my pull?
It is a non-insulated body, so there is no insulated throat liner protecting conductor insulation as it turns the corner. On a metallic connector like this the metal path is continuous, which is what you want for bonding, but if your conductors are fine-strand or the job spec calls for an insulated throat, specify an insulated version instead.
2) Why use a 90 degree strain relief connector instead of a straight one plus an elbow?
The 90 degree body makes the turn inside the fitting itself, so you can terminate into a box or enclosure sitting close to a wall or ceiling without the extra length a straight connector plus a separate elbow needs. It also keeps the strain relief grip at the same point as the turn, so the cable is clamped where the bending stress is. If you have the clearance for a straight run into the box, a straight strain relief connector is the simpler part.
3) Will this connector provide a bonding path back to the enclosure?
Yes. The non-insulated malleable iron construction gives direct metal-to-metal continuity through the fitting, which is the point of a metallic non-insulated connector. Where the enclosure has a concentric or eccentric knockout, most inspectors still want a bonding bushing or bonding locknut on that entry, so plan for it on service-side equipment.
4) What is the Thomas & Betts 90 degree strain relief connector body made of?
Malleable iron. That is a cast, heavier-duty body rather than a die-cast zinc or stamped steel fitting, which is why these get specified for industrial conduit systems and exposed commercial work where the fitting can take a knock.
