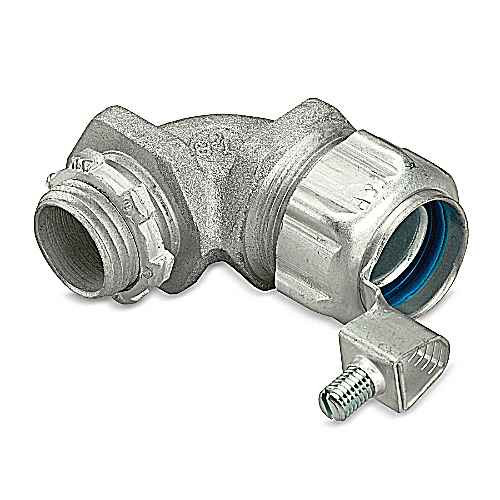

Thomas & Betts 90° Grounding Connector NPT Malleable Iron Electro Zinc Plated

Thomas & Betts 90° Grounding Connector NPT Malleable Iron Electro Zinc Plated

(No reviews yet) Write a Review

Model: 5352GR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$69.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts 90-Degree Grounding Connector 1/2 Inch NPT Malleable Iron with Electro Zinc Plated Finish

Professional 90-Degree Grounding Connection Solution

Thomas & Betts delivers reliable grounding connectivity with this professional 90-degree grounding connector featuring 1/2 inch NPT threading and durable malleable iron construction. The electro zinc plated/chromate coating finish provides corrosion resistance while the external thread design enables secure installation with low torque effort for efficient electrical grounding applications.

Professional Features & Benefits

  • 90-Degree Elbow Design: Provides optimal cable routing and space-saving installation in tight spaces and corner applications.
  • 1/2 Inch NPT Threading: Standard threading ensures compatibility with common conduit systems and reliable mechanical connection.
  • Malleable Iron Construction: Delivers exceptional durability and mechanical strength for long-term performance in demanding electrical environments.
  • Electro Zinc Plated/Chromate Coating: Provides superior corrosion resistance and extended service life in various environmental conditions.
  • Low Torque Installation: Quick installation capability reduces labor time and effort while ensuring proper connection integrity.
  • UL E3060 and CSA Listed: Meets rigorous safety standards for professional electrical installations and code compliance.
  • Steel Housing Material: Robust housing construction provides additional protection and structural integrity for the connection point.

Technical Specifications

  • Approved In Combination With Protective Conduit Csa: Y
  • Approved In Combination With Protective Conduit Ul: Y
  • Connection Type Screw Connection To Housing: Thread
  • Construction Type: External thread
  • Department: Electrical
  • Etim: EC001180 Screw connection for protective metallic hose
  • Inner Dimensions Inches: 9.5x6.9x4.7
  • Inner Quantity: 25
  • Material: Malleable Iron
  • Material Housing: Steel
  • Nominal Size In Inch: 1/2 inch
  • One Piece: N
  • Outer Dimensions Inches: 9.7x7.3x10.4
  • Outer Quantity: 50
  • Product Details: Grounding Connectors-90 degree
  • Product Finish: Electro Zinc Plated/Chromate Coating
  • Product Group: Connectors
  • Product Model: 90�-elbow
  • Product Subgroup: Electrical Connectors
  • Product Type: Grounding Connectors-90 degree
  • Revolving Thread: N
  • Standard: UL E3060, CSA
  • Thread Connection Size: Other
  • Thread Type: NPT
  • Unspsc: 39121420 Liquid tight connectors
  • Weight Uom: 31 lbs. per 100

Professional Applications

  • Commercial Electrical Installations
  • Industrial Grounding Systems
  • Residential Electrical Service Panels
  • Conduit Grounding Connections
  • Equipment Bonding Applications
  • Electrical Code Compliance Projects
  • Professional Electrical Contractor Work

Why Choose Thomas & Betts Quality?

Thomas & Betts grounding connectors deliver proven reliability with UL E3060 and CSA listings ensuring code compliance and safety. The malleable iron construction with electro zinc plated/chromate coating provides long-term durability and corrosion resistance for professional electrical installations requiring dependable grounding connectivity.

Product Specs

Product Finish:
Electro Zinc Plated/Chromate Coating
Product Group:
Grounding & Bonding
Department:
Electrical
Etim:
EC001180 Screw connection for protective metallic hose
Unspsc:
39121420 Liquid tight connectors
Revolving Thread:
N
Approved In Combination With Protective Conduit Csa:
Y
Construction Type:
External thread
Thread Connection Size:
Other
Standards:
UL E3060, CSA
Product Type:
Grounding Connector
Product Details:
Grounding Connectors-90 degree
Approved In Combination With Protective Conduit Ul:
Y
Product Model:
90°-elbow
Thread Type:
NPT
Connection Type Screw Connection To Housing:
Thread
Product Subgroup:
Grounding & Bonding
Product Material:
Malleable Iron
One Piece:
N

Thomas & Betts 5352GR – Frequently Asked Questions

1) Is the Thomas & Betts 5352GR series UL and CSA listed for an inspected job?
Yes. The connectors carry UL E3060 and CSA listings, and are approved in combination with protective conduit under both agencies. That covers the inspection question on commercial and institutional work where the grounding path has to be a listed assembly.
2) Why use a 90-degree grounding connector instead of a straight connector and an elbow?
The 90-degree elbow body turns the conduit at the box in one fitting, which is what you want when the box sits tight to a wall, in a corner, or behind equipment where a straight connector plus a separate bend won't physically fit. It also gives you a single grounding termination point instead of two joints in the bonding path. If you have the clearance to come straight into the box, a straight grounding connector is the simpler choice.
3) Does the 5352GR grounding connector come as one piece or does it assemble?
It is a multi-piece fitting, not a single casting, and the thread is non-revolving. Practically that means you set the body's orientation by how you thread it in rather than spinning a swivel after the fact, so plan which way the elbow needs to point before you tighten it down.
4) Can I order the same 90-degree grounding connector in several conduit sizes to standardize a building?
Yes. The same Thomas & Betts 90-degree grounding connector is offered in 1/2, 3/4, 1, and 2 inch, all in malleable iron with the same electro zinc plated/chromate finish and the same UL E3060 and CSA listings. For an MRO crib that means one fitting family and one finish across the panel and equipment bonding terminations, with the part number changing only by size: 5352GR, 5353GR, 5354GR, 5357GR.
5) Will a zinc plated malleable iron grounding connector hold up in a damp or corrosive area?
The body is malleable iron with an electro zinc plated/chromate coating, which gives corrosion resistance suitable for general indoor, damp, and sheltered industrial locations. For direct-buried, chemical exposure, or constant washdown, electricians normally specify a fitting rated for those conditions rather than a plated iron one.
