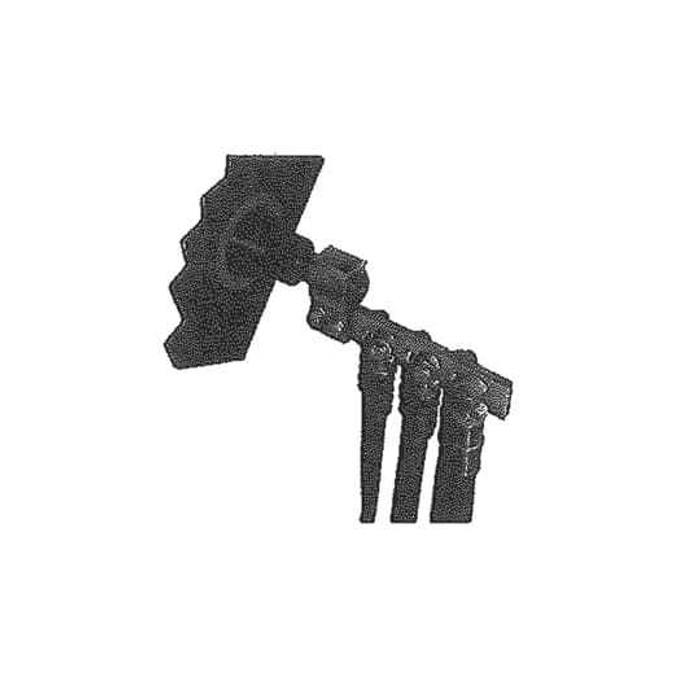

THRD STUD TRANS CONN 6POS 12-500
Manufacturer Resources
Product Specs
- Connection Type:
- Mechanical
- Country Of Origin:
- United States (US)
- Number Of Secondary Ports:
- 6
- Outside Diameter:
- 3/8 in
- Product Group:
- Wire & Cable Management
- Product Type:
- Threaded Stud Transformer Connector
- Selling Unit Of Measure:
- each
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Aluminum
Blackburn TSL6SE10 – Frequently Asked Questions
1) What is the Blackburn TSL6SE10 used for on a transformer?
The TSL6SE10 is a threaded stud transformer connector. It slips over a 3/8 inch threaded transformer stud or spade and gives you six secondary ports to land branch conductors, so one stud feeds six circuits without stacking lugs. Connections are mechanical (set screw type), not compression, so no crimp tool or die set is needed.
2) What wire range do the six ports on the Blackburn TSL6SE10 take?
The ports accept conductors from 12 AWG up to 500 kcmil, which is the 12-500 in the part designation. That span covers small control and lighting taps through large secondary feeders on the same connector body.
3) Can I use this connector with both copper and aluminum conductors?
The body is aluminum. Aluminum-bodied mechanical connectors of this type are commonly dual rated for copper and aluminum conductors, but confirm the AL9CU marking stamped on the individual part before landing copper on it.
4) Do I need a crimp tool to install the Blackburn TSL6SE10?
No crimp tool. It's a mechanical connector, so installation is set screws torqued to the values marked on the connector. That makes it workable in a tight transformer cabinet where a hydraulic crimper won't fit, and it lets you re-land a conductor later without cutting it back.
5) What is the exact manufacturer part number for this 6-port threaded stud connector?
Blackburn TSL6SE10. The 6 in the designation is the six secondary ports, and it's built for a 3/8 inch stud with a 12 AWG to 500 kcmil port range.
6) Is the TSL6SE10 sold individually or in a box?
The TSL6SE10 sells each, one connector per unit. Order one per stud you need to tap, so a three-phase secondary plus neutral typically means four.
7) Is the Blackburn TSL6SE10 made in the USA?
Country of origin is the United States, which matters if you're buying against a Buy American or domestic-preference clause on a government or institutional job.
