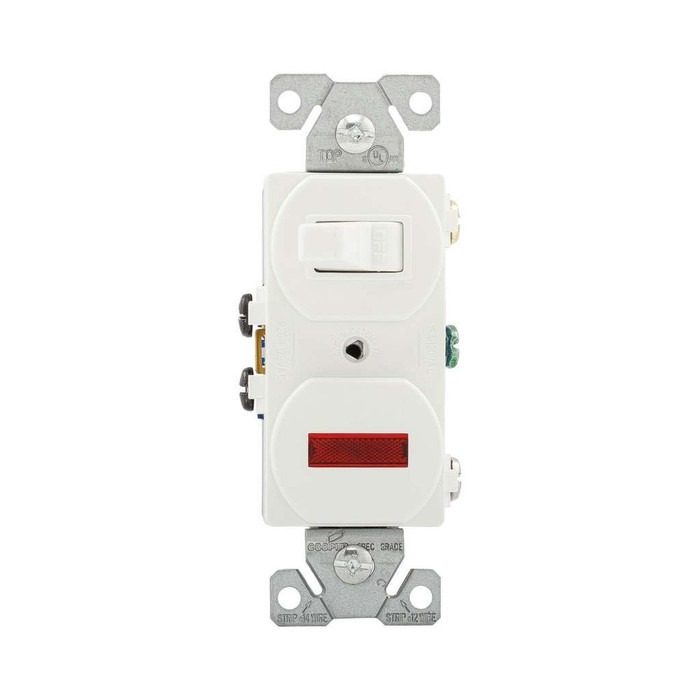

Cooper Wiring Devices Toggle Switch with Pilot Light, Thermoplastic

Cooper Wiring Devices Toggle Switch with Pilot Light, Thermoplastic

(No reviews yet) Write a Review

Model: 277W-BOX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cooper Wiring Devices Toggle Switch with Pilot Light, Thermoplastic

The Cooper Wiring Devices Toggle Switch with Pilot Light combines a single-pole 15A toggle switch and a 125V neon pilot light in one thermoplastic device, giving installers a visual on/off indicator alongside standard switching. Rated 120V for the switch and 125V for the pilot light, this maintained-closure device is built for commercial applications with a flush mounting profile and screw-terminal wiring. Brass contacts and a durable thermoplastic body support reliable performance across an operating temperature range of -20 to 60°C.

Key Features

  • Combination Configuration: Integrates a toggle switch and 125V neon pilot light into a single duplex-style device for at-a-glance status indication.
  • Durable Construction: Molded thermoplastic housing with brass contacts resists wear and supports long-term reliability in commercial settings.
  • Screw Wiring Connections: Back-and-side screw terminals accommodate #14 - #12 AWG wire for a secure, code-compliant termination.
  • Electrical Rating: 15A, 120V switch rating with a 125V neon pilot light rated at 1/25W for continuous indicator illumination.
  • Single-Pole Maintained Switching: Toggle actuator provides simple maintained on/off control for single-location switching applications.
  • Flush Mounting: Designed for flush installation into standard wallboxes for a clean, low-profile finish.
  • Wide Operating Range: Rated for operation from -20°C to 60°C, suitable for varied commercial environments.
  • Clean White Finish: White thermoplastic finish blends with standard commercial device and wallplate colors.

Technical Specifications

  • Amperage Rating: 15A
  • Voltage Rating: 120V (Switch) / 125V (Pilot Light)
  • Material: Thermoplastic
  • Connector Type: Screw
  • Actuator: Toggle
  • Number of Poles: Single-pole
  • Wiring Method: Back and side
  • Allowable Wire Size: #14 - #12 AWG
  • Closure Type: Maintained
  • Mounting Type: Flush
  • Contact Type: Brass
  • Style Type: Duplex
  • Illumination: Neon pilot
  • Wattage: 1 / 25W
  • Color: White
  • Operating Temperature: -20 to 60°C

Typical Applications

  • Commercial Electrical Installations
  • Equipment and Appliance On/Off Indication
  • Break Rooms, Utility Rooms, and Mechanical Spaces
  • Renovation and New Construction Wiring
  • Panel and Control Switching with Visual Status Indication

Why Cooper Wiring Devices?

Cooper Wiring Devices builds this toggle switch with pilot light from durable thermoplastic and brass contacts, delivering a combination device engineered for dependable commercial performance. The integrated 125V neon pilot light and single-pole maintained toggle switching make it a practical choice for professionals who need reliable switching plus clear visual status in one compact, flush-mount device.

Manufacturer Resources

Product Specs

Configuration:
Toggle switch and 125V pilot light
Connector Type:
Screw
Voltage Rating:
120V (Switch)|125V (Pilot Light)
Actuator:
Toggle
Number Of Poles:
Single-pole
Wiring Method:
Back and side
Allowable Wire Size:
#14 - #12 AWG
Operating Temperature:
-20-60˚C
Closure Type:
Maintained
Installation Category:
Flush
Contact Type:
Brass
Style Type:
Duplex
Amperage Rating:
15A
Illumination:
Neon pilot
Product Wattage:
1 / 25W
Product Type:
Standard
Connection Type:
Screw
Product Material:
Thermoplastic
Product Color:
White
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Switches
Product Length:
1.3 in
Product Width:
1.08 in
Product Height:
4.19 in
Product Weight:
0.2 lb
Application:
Commercial

Cooper Wiring Devices 277W-BOX – Frequently Asked Questions

1) Does the Cooper 277W-BOX pilot light stay lit when the switch is on, or when it's off?
The 277W-BOX pairs a single-pole maintained toggle with a 125V neon pilot lamp rated 1/25W. It's a status indicator device: the neon lamp shows the state of the circuit the switch controls, so you can tell from the hallway whether the exhaust fan, water heater or attic light is running. That's the whole reason to spend the extra money over a plain 15A toggle.
2) Do I need a neutral in the box to wire a Cooper 277W-BOX pilot light toggle switch?
Plan on having a neutral available. A neon pilot lamp has to be energized across a complete circuit to glow, and this device carries its own 125V lamp, so the box needs a neutral to run it. If you're working a switch loop with only a hot and a traveler and no white conductor, a pilot-light switch is the wrong device for that opening and you'd want a standard single-pole 15A toggle instead. Terminations here are screw type, back and side, for #14 to #12 AWG copper.
3) Can I use the Cooper 277W-BOX in a three-way setup to control a light from two doors?
No. This is a single-pole device, so it controls the load from one location only. For two switch points you need a pair of three-way switches, and if you also want indication you'd need a three-way rated pilot light switch. Single-pole maintained toggle is what the 277W-BOX does.
4) Can I use this pilot light switch in an unheated garage or mechanical room?
Yes. The Cooper 277W-BOX is rated for operation from -20 to 60 degrees C, which covers unconditioned garages, attics, utility and mechanical spaces in most climates. Body is thermoplastic with brass contacts. It's a flush interior device, so it still needs to go in a proper wallbox, not open weather exposure.
5) I'm standardizing switches across a building. Will the Cooper 277W-BOX match my other white commercial devices?
Color-wise yes, it's white thermoplastic and reads the same as standard commercial white device lines. The difference is the opening: because it uses a duplex-style face rather than a toggle face, those locations take a duplex wallplate while your plain toggles take toggle plates. Keep that in mind when you're pulling plate quantities for a floor.
6) What part number do I order for the Cooper white toggle switch with neon pilot light?
Cooper Wiring Devices 277W-BOX. One configuration only: white, 15A, 120V single-pole toggle with a 125V neon pilot, screw terminals. There are no handing, finish, or amperage variations to specify.
