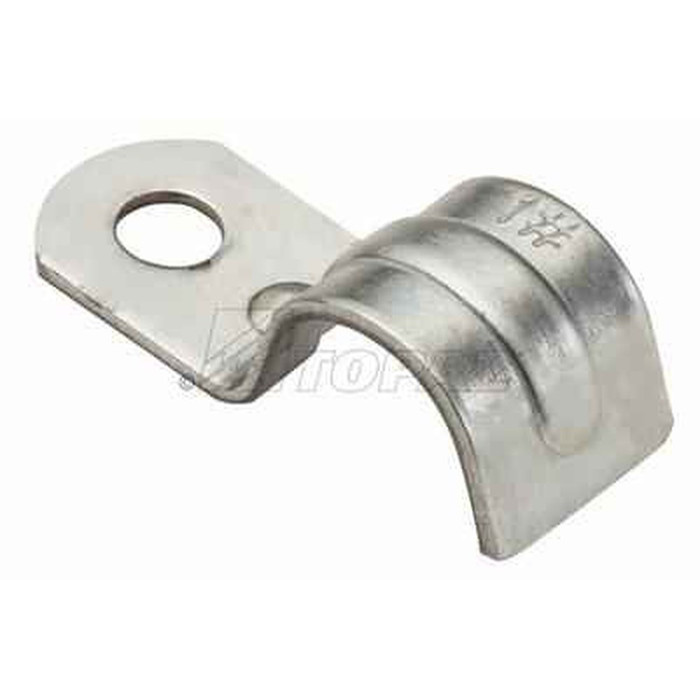

Topaz Lighting 510BX One-Hole BX Cable Strap, 14/2-10/3, Zinc-Plated Steel

Topaz Lighting 510BX One-Hole BX Cable Strap, 14/2-10/3, Zinc-Plated Steel

(No reviews yet) Write a Review

Model: 510BX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.23
$0.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Topaz Lighting 510BX One-Hole BX Cable Strap, 14/2-10/3, Zinc-Plated Steel

The Topaz Lighting 510BX is a one-hole BX cable strap engineered for securing armored BX cable in residential and commercial electrical installations. Constructed from zinc-plated steel, this strap accommodates 14/2 through 10/3 cable sizes and features a single-hole mounting design that simplifies fastening and reduces installation time. Its corrosion-resistant zinc-plated finish makes it well-suited for a wide range of interior wiring environments where reliable cable support is required.

Key Features

  • Cable Size Compatibility: Accommodates 14/2 through 10/3 cable sizes, covering standard residential and commercial armored BX cable applications.
  • Durable Construction: Zinc-plated steel body delivers corrosion resistance and long-lasting mechanical strength across varied installation environments.
  • One-Hole Mounting Design: Single-fastener attachment simplifies installation, reducing hardware requirements and speeding up the mounting process.
  • BX Cable Specific: Engineered specifically for armored BX cable, ensuring a proper fit and consistent cable support throughout the raceway system.
  • Professional Grade: Precision-formed to meet electrical installation standards for dependable cable management and code-compliant performance.

Technical Specifications

  • Product Type: Strap & Support
  • Product Group: Conduit & Raceway
  • Product Subgroup: Conduit Straps & Supports

Typical Applications

  • Residential Electrical Wiring Installations
  • Commercial Building Cable Management
  • Armored BX Cable Securing and Support
  • Electrical Panel and Service Entrance Wiring
  • Renovation and New Construction Projects
  • Industrial Interior Cable Routing

Why Topaz Lighting?

Topaz Lighting manufactures professional-grade electrical components built to perform in demanding installation environments. The 510BX cable strap combines zinc-plated steel construction with a purpose-built one-hole design, delivering reliable cable support and corrosion resistance that professional electricians depend on for 14/2 through 10/3 armored BX cable. Topaz Lighting's precision-engineered fittings are designed for consistent, code-compliant performance across residential, commercial, and industrial applications, making the 510BX a dependable choice for cable management on any job site.

Product Specs

Product Type:
Strap & Support
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Straps & Supports
Product Material:
Zinc-Plated Steel
Product Color:
Zinc-Plated
Product Size:
14/2-10/3
Pack size (unit):
100

Topaz Lighting 510BX – Frequently Asked Questions

1) What size BX cable does the Topaz 510BX one-hole strap fit?
The Topaz 510BX one-hole strap is sized for 14/2 through 10/3 armored BX cable, which covers the range you run for standard branch circuits in residential and light commercial work. If the cable on your job is larger than 10/3, this is not the strap for it.
2) Will a one-hole BX strap hold armored cable properly, or do I need a two-hole strap?
A one-hole strap like the 510BX takes a single fastener through the mounting tab, so it goes up fast on studs, joists, and box sides where you are running 14/2 to 10/3 BX. Two-hole straps are what you reach for when the run is exposed on a wall or ceiling and you want the cable held against rotation and side load at each support point. For ordinary concealed branch-circuit work, the one-hole is the standard choice.
3) Can I use the Topaz 510BX strap outdoors or in a damp location?
Zinc-plated steel is the material, and that plating is a corrosion-resistant finish for interior wiring environments, not a weatherproof coating. Keep the 510BX to dry interior runs: studs, joists, basements, mechanical rooms, panel and service-entrance feeds inside the building. For exposed exterior or wet locations you want a stainless or malleable-iron support rated for that duty.
4) How many straps come in a box of Topaz 510BX?
The 510BX BX cable strap is packed 100 to a box. That is one box for a typical house rough-in when you are strapping 14/2 to 10/3 armored cable, since you are setting a support every few feet along each run.
5) Do Topaz 510BX cable straps come with screws or nails?
Straps only. The 510BX ships as the zinc-plated steel strap with a single mounting hole, so you supply the fastener to suit the substrate, a wood screw or nail into framing, a self-drilling screw into metal stud, an anchor into masonry.
6) Can I use a BX strap on NM (Romex) cable instead?
The 510BX is formed for armored BX cable in the 14/2 to 10/3 range, and the strap profile follows the round armor of that cable. Flat NM cable wants a flat NM staple or strap so the jacket is not pinched or crushed. Use the matching type for each cable rather than sharing straps between them.
7) Is the Topaz 510BX strap the same part electricians call an AC or MC cable strap?
BX is the trade name for armored cable, so a one-hole BX strap and a one-hole AC cable strap are the same item in most supply houses. Order by the cable size range rather than the nickname: the 510BX covers 14/2 through 10/3. MC cable of the same overall diameter sits in the same strap, but check your cable's outside diameter against that range before you standardize on it.
8) Can I stack two BX cables in one 510BX strap?
One cable per strap. The 510BX is formed to grip a single run of 14/2 to 10/3 armored cable, and doubling cable into it leaves the clamp loose on both. Where two runs follow the same path, set two straps side by side or move to a multi-cable support designed for stacking.
