Topaz Lighting 632I Zinc Die-Cast Set-Screw EMT Connector, Insulated Throat

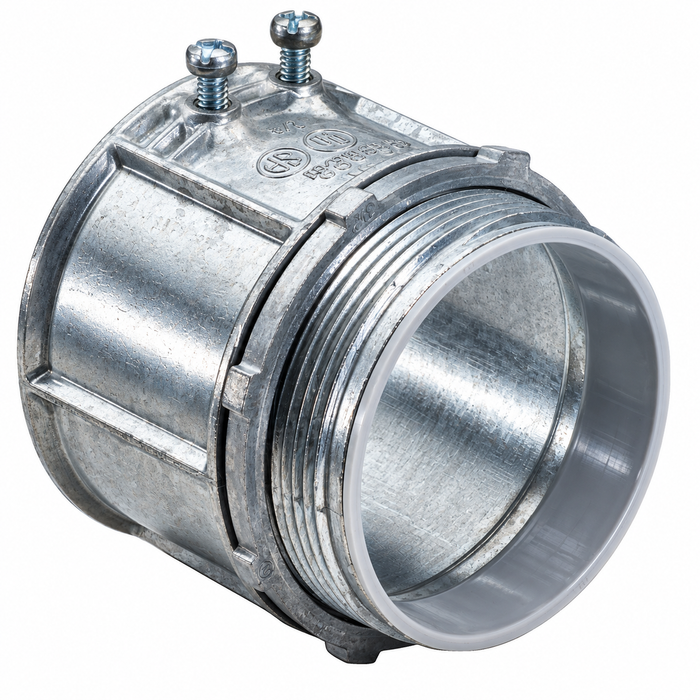

Topaz Lighting's 632I Set-Screw EMT Connector is engineered to securely bond EMT thin-wall conduit to electrical boxes and enclosures in dry locations. Constructed of durable zinc die-cast, this connector is available in trade sizes of 3/4" and 1", delivering concrete-tight protection when taped. The built-in insulated throat provides superior abrasion protection for conductors at the point of entry, while the set-screw assembly ensures a reliable, long-lasting connection between EMT conduit and its termination point. UL Listed and NEMA/ANSI FB-1 compliant, the 632I is built for code-confident commercial and industrial installations where dependable conduit-to-enclosure bonding is required.

Key Features

  • Trade Sizes: Available in 3/4" and 1" trade sizes to accommodate common EMT thin-wall conduit installations in dry locations.
  • Durable Construction: Manufactured from zinc die-cast for long-lasting durability, efficient performance, and superior corrosion resistance in dry-location applications.
  • Set-Screw Assembly: Set-screw type connection provides a secure, reliable bond between EMT thin-wall conduit and electrical boxes or enclosures.
  • Insulated Throat: Integrated insulated throat delivers superior protection against conductor abrasion at the conduit entry point, safeguarding wire insulation integrity over the life of the installation.
  • Concrete-Tight When Taped: Designed to achieve concrete-tight protection when taped, making this connector suitable for demanding installation environments.
  • Code Compliance: UL Listed and NEMA/ANSI FB-1 compliant, ensuring conformance with industry standards for electrical fittings.

Certifications & Compliance

  • UL Listed
  • NEMA/ANSI FB-1 Compliant
  • Suitable for Dry Locations
  • Concrete-Tight When Taped

Technical Specifications

  • Conduit Type: EMT
  • Connection Type: Set Screw
  • Listing: UL Listed, NEMA/ANSI FB-1 Compliant
  • Pack Size: 100

Typical Applications

  • Bonding EMT Thin-Wall Conduit to Electrical Boxes and Enclosures in Dry Locations
  • Commercial and Industrial Electrical Conduit Raceway Systems
  • New Construction and Renovation Wiring Installations
  • Panelboard, Load Center, and Enclosure Conduit Terminations
  • Concrete and Masonry Installations When Connector Is Taped for Concrete-Tight Protection

Why Topaz Lighting?

Topaz Lighting's 632I Set-Screw EMT Connector is built from durable zinc die-cast material, delivering the corrosion resistance and mechanical strength that professional electricians demand on the job site. With UL Listing and NEMA/ANSI FB-1 compliance, it meets rigorous industry standards for safe, code-compliant conduit installations. The insulated throat and concrete-tight-when-taped design reflect Topaz Lighting's commitment to protecting conductors and ensuring reliable, long-lasting performance across a broad range of commercial and industrial electrical applications.

Product Specs

Product Type:
EMT Connector
Conduit Type:
EMT
Connection Type:
Set Screw
Listing:
UL Listed
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Fittings
Product Material:
Zinc Die-Cast
Pack size (unit):
100
Product Size:
3/4" - 1"
Standards:
NEMA/ANSI FB-1

Topaz Lighting 632I – Frequently Asked Questions

1) Can I use the Topaz 632I EMT connector outdoors or in a wet location?
No. The 632I zinc die-cast set-screw connector is rated for dry locations only. It is concrete-tight when taped, so it can be poured into a slab or masonry, but that is not the same as raintight or wet-location rated. For outdoor or damp runs you need a compression (raintight) EMT connector instead.
2) Does the Topaz 632I EMT connector meet code for a commercial job?
It is UL Listed and built to NEMA/ANSI FB-1, the standard governing fittings for conduit and cable assemblies. That is what an inspector or a spec section on a commercial or institutional job will be looking for on an EMT termination.
3) Is an insulated throat EMT connector required, or can I use a plain one?
The insulated throat on the 632I puts a smooth insulating ring at the conduit entry so conductors are not dragged across a bare metal edge when you pull wire. The NEC requires conductor protection at raceway terminations, and a factory insulated throat satisfies it without adding a separate bushing. A non-insulated connector can still be used if you install a bushing, which is one more part and one more step at every box.
4) Will a set-screw EMT connector bond the conduit for grounding?
Yes. The 632I is zinc die-cast and the set-screw clamps metal to metal on the EMT, with the locknut making up the connection to the box, so the raceway is bonded through the fitting. It is UL Listed and FB-1 compliant for that use in dry locations.
5) Can I pour a set-screw EMT connector in concrete?
The 632I achieves concrete-tight protection when taped, so wrapping the fitting body before the pour is what qualifies it for concrete or masonry work. Untaped, it is not concrete-tight. It is still a dry-location fitting, not a wet-location one.
6) How many EMT connectors come in a box of Topaz 632I?
They ship 100 to the pack. For a panel rough-in or a commercial raceway job that is a realistic single-box quantity per size, and you would order the 3/4 inch (632I) and 1 inch (633I) separately rather than as a mixed box.
