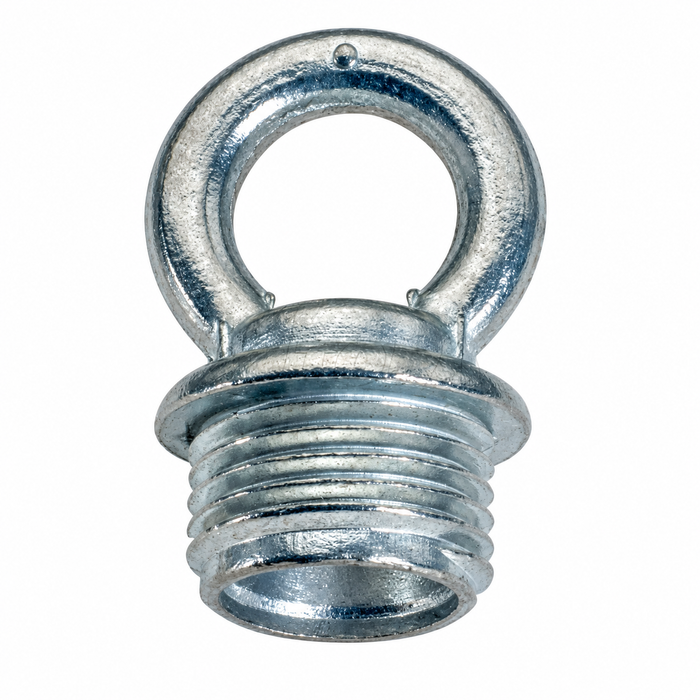

Topaz Lighting 71 Zinc Die-Cast 1/2" Male Fixture Loop

The Topaz Lighting 71 is a 1/2" male fixture loop built from durable zinc die-cast construction with a threaded connection for secure fixture and conduit hanging applications. Designed for electricians and installers who need a reliable, code-compliant hanging point, this fixture loop combines rugged zinc die-cast material with a 1/2" male threaded fitting for straightforward installation into standard electrical boxes and fixtures.

Key Features

  • Trade Size: 1/2" male threaded connection for standard electrical box and fixture compatibility.
  • Durable Construction: Zinc die-cast body resists wear and provides long-lasting mechanical strength.
  • Threaded Connection: Simplifies secure installation to fixtures, boxes, and conduit systems.
  • Compact Loop Design: Provides a dependable suspension and mounting point for fixture hanging applications.

Technical Specifications

  • Product Type: Conduit & Raceway
  • Connection Type: Threaded
  • Product Material: Zinc Die-Cast
  • Product Size: 1/2" MALE

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Light Fixture Hanging and Suspension
  • Conduit and Raceway Systems
  • Renovation and New Construction Electrical Work

Why Topaz Lighting?

Topaz Lighting's 71 fixture loop delivers dependable zinc die-cast construction and a secure 1/2" male threaded connection for professional electrical installations. Built for reliable performance, it's a practical solution for electricians needing a sturdy fixture hanging point that stands up to daily job-site demands.

Product Specs

Product Type:
Conduit & Raceway
Connection Type:
Threaded
Department:
Electrical
Product Group:
Hangers, Supports & Fasteners
Product Subgroup:
Mounting Hardware
Product Material:
Zinc Die-Cast
Product Size:
1/2" MALE

Topaz Lighting 71 – Frequently Asked Questions

1) What is a Topaz 71 fixture loop actually used for?
The Topaz 71 is a hanging point, not a fitting that carries wire. It threads onto a 1/2 inch male connection and gives you a closed loop to suspend a light fixture, a chain, or a hook from an outlet box or a conduit system. If what you need is a coupling or a connector to join two runs of conduit, this is the wrong part; the loop's only job is to give a fixture something to hang from.
2) Will a Topaz 71 loop thread into a standard 1/2 inch knockout or fixture stud?
It is a 1/2 inch MALE threaded fitting, so it screws into a female 1/2 inch tapped opening, a fixture stud, a hickey, or a box hub. It will not thread onto another male stud. If the opening you are working with is male, you need a female-to-female adapter between the two, or a loop with a female thread.
3) Is zinc die-cast strong enough to hang a commercial light fixture from?
The 71 loop is zinc die-cast, a one-piece cast body with no seam or weld to open under load. That is the standard material for fixture loops and hickeys in commercial electrical work and it holds up to job-site handling. For heavy suspended fixtures, the limiting factor is usually the box and the structure above it, not the loop, so make sure the outlet box you are threading into is a fixture-rated box.
4) Is the Topaz 71 the same thing as a fixture stud or a hickey?
No, and the three do different jobs. A fixture stud is the male threaded post that mounts to the box. A hickey is a threaded coupling body used to make up the fixture connection and route the wires through. The 71 is a loop: a closed eye on a 1/2 inch male thread, meant to give a chain, hook, or cable something to grab. If you need to pass conductors through the fitting, you want a hickey, not a loop.
5) Can I use a Topaz 71 loop outdoors or in a damp location?
Zinc die-cast handles the mechanical side fine, but a threaded loop is not a seal. In a wet or damp location the weather integrity comes from the box, the gasket, and the sealant on the threads, not from the loop. Treat the 71 as a support fitting and let the enclosure do the weatherproofing.
6) Are there different versions of the Topaz 71 I need to pick from when ordering?
One configuration only. The 71 is the 1/2 inch male zinc die-cast loop, ordered under manufacturer part number 71, with no finish or size options to specify. That makes it easy to standardize on across a building if you are repeating the same fixture hanging detail on multiple floors.
