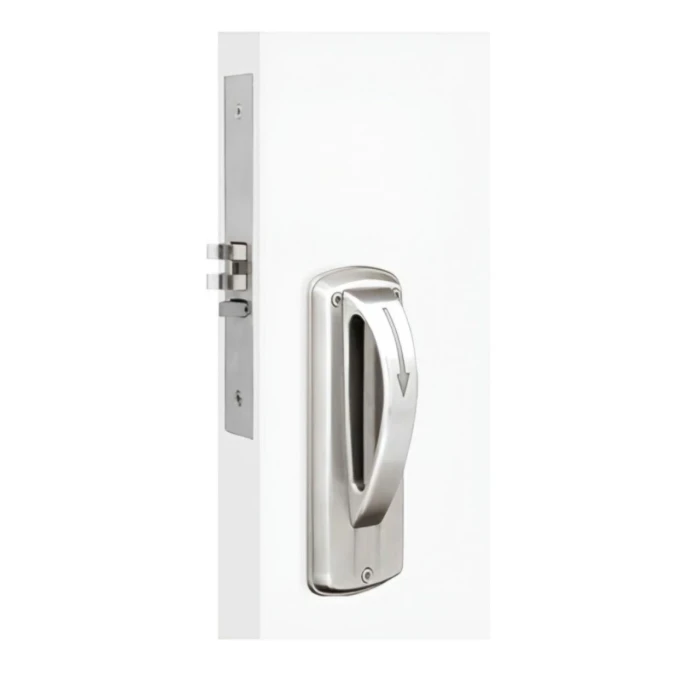

TownSteel MRX-A-19 ANSI Grade 1 Ligature-Resistant Privacy/Bathroom Mortise Lock with 5-Point Stainless Steel Arch Trim

TownSteel MRX-A-19 ANSI Grade 1 Ligature-Resistant Privacy/Bathroom Mortise Lock with 5-Point Stainless Steel Arch Trim

(No reviews yet) Write a Review

Model: MRX-A-19-630-RH
$1,094.00
$879.77
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,094.00
$879.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TownSteel MRX-A-19 ANSI Grade 1 Ligature-Resistant Privacy/Bathroom Mortise Lock with 5-Point Stainless Steel Arch Trim

The TownSteel MRX-A-19 is an ANSI Grade 1 mortise lock engineered with a ligature-resistant arch trim, purpose-built for behavioral, mental, and psychiatric healthcare facilities housing at-risk patients. This privacy/bathroom function lockset features a 5-point ligature-resistant stainless steel arch trim, tamper-resistant mounting screws, and an included cylinder for added security. Designed for versatile installation, the MRX-A-19 mounts on both wood and metal doors with a door thickness range of 1-3/4", making it a heavy-duty commercial solution for demanding environments.

Key Features

  • Door Thickness Compatibility: Engineered for doors with a 1-3/4" thickness range for secure, precise installation.
  • Stainless Steel Face Plate: 1-1/4" x 8" stainless steel face plate for durable, corrosion-resistant performance.
  • ASA Door Strike: 1-1/4" x 4-7/8" ASA strike for reliable latching and long-term durability.
  • 5-Point Ligature-Resistant Arch Trim: Stainless steel arch trim with a 5-point ligature-resistant design to minimize attachment points in behavioral health settings.
  • Tamper-Resistant Mounting Screws: Specialized fasteners help prevent unauthorized disassembly in high-risk environments.
  • Includes Cylinder: Ships complete with a cylinder for immediate installation.
  • Versatile Door Mounting: Mounts onto both wood and metal doors for flexible application across facility types.
  • Heavy-Duty Commercial Construction: Built for demanding commercial use consistent with ANSI Grade 1 performance standards.

Certifications & Compliance

  • ANSI Grade 1 Certified

Technical Specifications

  • Series: MRX-A Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Mortise Locks
  • Subcategory: Mortise Locks
  • Commercial/Residential: Commercial
  • Keyed Function: Non-Keyed
  • Duty Level: Heavy Duty
  • Lock Function: Non-Keyed
  • Product Attribute: Mortise Locks
  • Electronic: No
  • Product Function: Privacy/Bed/Bath
  • Door Thickness Range: 1-3/4"
  • Face Plate: 1-1/4" x 8", stainless steel
  • Door Strike: 1-1/4" x 4-7/8", ASA Strike
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Behavioral Health Facilities
  • Psychiatric Care Units
  • Correctional Facilities
  • Assisted Living Facilities
  • Hospital Patient Rooms
  • Mental Health Treatment Centers
  • Healthcare Institutions

Why TownSteel MRX-A?

TownSteel MRX-A Series mortise locks deliver professional-grade reliability for the most demanding behavioral and psychiatric healthcare environments. Built to ANSI Grade 1 standards with a 5-point ligature-resistant stainless steel arch trim and tamper-resistant mounting hardware, the MRX-A-19 is engineered to reduce risk while providing dependable privacy/bathroom function performance on both wood and metal doors.

Product Specs

Series:
MRX-A Series
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Keyed Function:
Non-Keyed
Duty Level:
Heavy Duty
Grade:
Grade 1
Handle Type:
Arch Trim
Lock Function:
Non-Keyed
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Privacy/Bed/Bath
Door Thickness Range:
1-3/4"
Face Plate:
1-1/4" x 8", stainless steel
Door Strike:
1-1/4" x 4-7/8", ASA Strike
Product Category:
Mechanical Locks
Department:
Door Hardware

TownSteel MRX-A-19-630-RH – Frequently Asked Questions

1) Will the TownSteel MRX-A-19 mortise lock fit a 1-3/4 inch door?
Yes, and only that thickness. The MRX-A-19 is built for 1-3/4 inch doors, which is the standard commercial door thickness. It mounts on either wood or metal doors, and the lock body takes a 1-1/4 x 8 inch stainless steel face plate. If your openings are thicker or thinner, this is not the lock.
2) Do I have to specify handing when ordering the MRX-A-19?
Yes. The MRX-A-19 ligature resistant mortise lockset is ordered by hand: LH, LHR, RH, or RHR. Stand outside the door, on the side the key or pull is on; if the hinges are on your left it is left hand, and if the door swings out toward you it is the reverse version. Get this wrong and the arch trim and latch will face the wrong way.
3) What does the -19 function do on the TownSteel MRX-A mortise lock?
It is the privacy/bed/bath function with a deadbolt, so it is non-keyed. It is meant for patient bathrooms and bedrooms where the occupant needs to secure the door but staff need to control the opening, not for corridor or storeroom doors that need keyed entry.
4) Is the TownSteel MRX-A-19 suitable for a behavioral health unit?
That is exactly what it is built for. The MRX-A is intended for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. It carries a 5-point ligature-resistant stainless steel arch trim, so there is no lever or knob to loop a cord over, and it uses tamper-resistant mounting screws so the trim cannot be removed with a common driver.
5) Will the MRX-A-19 work with the ASA strike prep already in my frame?
It uses a 1-1/4 x 4-7/8 inch ASA strike, which is the standard mortise strike cutout in commercial hollow metal frames. If your existing frame is prepped for a standard ASA mortise strike, the MRX-A-19 drops into that prep. The lock body also needs a standard mortise pocket and a 1-1/4 x 8 inch face plate cutout in the door edge.
6) What is a standard-trim equivalent to the TownSteel MRX-A-19 privacy mortise lock for a patient bathroom that does not need ligature resistance?
The MRX-A-19 is a Grade 1 privacy/bed/bath mortise lockset with a deadbolt and a 5-point ligature-resistant stainless steel arch trim with tamper-resistant mounting screws. Where ligature resistance is not required, the Cal-Royal NM8440 is a heavy duty Grade 1 privacy/bed/bath mortise lockset with deadbolt for 1-3/4 inch doors, the same door thickness the MRX-A-19 lists. The Hager 3840S is another Grade 1 privacy/bed/bath mortise lock, with a 2-3/4 inch backset and a 1-3/4 inch to 2 inch door thickness range. Both use conventional lever trim rather than an arch trim, so they do not carry the anti-ligature profile.
7) Which ligature-resistant mortise option should I use on a behavioral health corridor door that needs no locking at all?
The MRX-A-19 is the privacy/bed/bath function with a deadbolt, so it locks the opening from the inside. For a door that should always be operable, the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset described as ligature resistant and ADA compliant in satin stainless steel, which is the same 630 satin stainless finish the MRX-A-19 is supplied in. The 5PDN is a push/pull paddle rather than the MRX-A-19's arch trim.
8) Do I need to buy a cylinder separately for the MRX-A-19?
No. The MRX-A ships with a cylinder included. The -19 function itself is non-keyed privacy with deadbolt, so there is no keyed entry to specify a keyway or keying for on the outside lever side.
9) Is the TownSteel MRX-A-19 a Grade 1 lock?
Yes, it is an ANSI Grade 1 mortise lock rated heavy duty and catalogued for commercial use. That is the top ANSI/BHMA durability tier, which is what specifiers generally require for institutional and healthcare openings.
10) I need a keyed mortise lock for a staff or storage door in the same facility as the MRX-A-19 - what are the options?
The MRX-A-19 is non-keyed, with privacy/bed/bath function. For keyed openings, the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors, and the Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever. For a classroom function, the Cal-Royal NM8070 and the Corbin Russwin ML2003 are both Grade 1 classroom mortise locksets listed for 1-3/4 inch doors. None of these carry the arch anti-ligature trim of the MRX-A-19.
11) Is the Schlage CO-100 mortise privacy lock a substitute for the TownSteel MRX-A-19?
They share a function but not a technology. The Schlage CO-100-MS-40-KP is a standalone electronic mortise lock with a keypad reader, Grade 1, heavy duty, privacy function, for 1-3/4 inch doors. The MRX-A-19 is a mechanical, non-electronic Grade 1 privacy lockset with a deadbolt and a ligature-resistant arch trim on 1-3/4 inch doors. If the specification calls for credential management, the CO-100 answers that; if it calls for anti-ligature trim on a patient room, the CO-100's keypad housing does not.
12) What finish does the MRX-A-19 come in?
Satin stainless steel, BHMA 630. That is the only finish offered on this lockset, which suits it to matching other stainless trim and push/pull hardware common in healthcare corridors.
13) Is the TownSteel MRX-A-19 an electronic or access control lock?
No, it is purely mechanical. If the opening needs credential control, that is a different product entirely, for example the Schlage CO-100 standalone electronic mortise lock in privacy function with a keypad reader for 1-3/4 inch doors. The MRX-A-19 has no power, no reader, and no audit trail.
