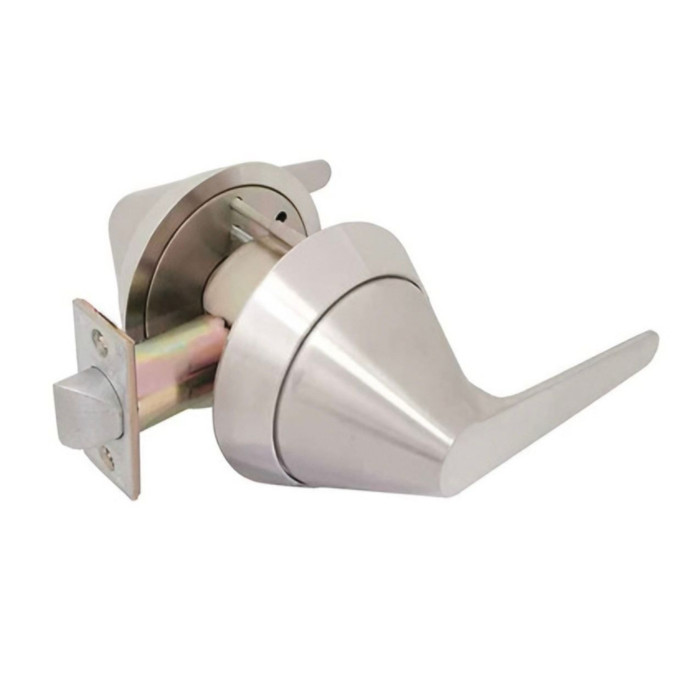

TownSteel TownSteel TRX-L-76 Privacy Function - Satin Stainless Steel Heavy Duty Ligature Resistant Lever Cylindrical Lockset TWS-TRX-L-76

TownSteel TRX-L-76 Heavy Duty Cylindrical Lockset with Privacy Function and Ligature-Resistant Lever

(No reviews yet) Write a Review

Model: TRX-L-76-630
$640.00
$527.92
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$640.00
$527.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TownSteel TRX-L-76 Heavy Duty Cylindrical Lockset with Privacy Function and Ligature-Resistant Lever

The TownSteel TRX-L-76 is a heavy-duty, ANSI Grade 1 sectional cylindrical lockset engineered with a ligature-resistant stainless steel lever for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. Configured for Privacy/Bed/Bath function with non-keyed operation, this commercial-grade lockset mounts on both wood and metal doors with a 1-3/4" door thickness range and a 1-1/8" face plate. Tamper-resistant mounting screws add an extra layer of security, making the TRX-L-76 a dependable choice wherever patient safety and durability are top priorities.

Key Features

  • Door Thickness Compatibility: Engineered for standard 1-3/4" door thickness with a 1-1/8" face plate for precise, secure installation.
  • ANSI Grade 1 Durability: Sectional cylindrical lock construction meets ANSI Grade 1 standards for heavy-duty commercial performance.
  • Ligature-Resistant Lever: Stainless steel lever design is specifically engineered to resist ligature attachment, supporting patient safety in behavioral and psychiatric healthcare environments.
  • Tamper-Resistant Mounting Screws: Specialized fasteners help deter unauthorized disassembly or tampering in high-risk facilities.
  • Versatile Door Mounting: Compatible with both wood and metal doors for flexible installation across a variety of facility types.
  • Privacy/Bed/Bath Function: Non-keyed privacy operation is ideal for patient rooms, bathrooms, and other areas requiring occupancy privacy without key access.
  • Heavy-Duty Commercial Construction: Built to withstand the demands of high-traffic commercial and institutional settings.

Certifications & Compliance

  • ANSI Grade 1 Sectional Cylindrical Lock

Technical Specifications

  • Series: TRX-L Series
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Leversets
  • Subcategory: Cylindrical Locks
  • Commercial/Residential: Commercial
  • Keyed Function: Non-Keyed
  • Duty Level: Heavy Duty
  • Product Attribute: Cylindrical Locks
  • Product Function: Privacy/Bed/Bath
  • Door Thickness Range: 1-3/4"
  • Face Plate: 1-1/8"
  • Product Category: Mechanical Locks
  • Department: Door Hardware

Typical Applications

  • Behavioral and Psychiatric Healthcare Facilities
  • Mental Health Treatment Centers
  • Hospital Patient Rooms
  • Correctional Healthcare Units
  • Assisted Living and Senior Care Facilities
  • Educational Facility Restrooms
  • Commercial Office Buildings

Why TownSteel TRX-L?

TownSteel TRX-L Series lockset products deliver professional-grade reliability with ANSI Grade 1 sectional cylindrical construction and a ligature-resistant stainless steel lever for high-risk healthcare environments. Tamper-resistant mounting screws and wood or metal door compatibility make the TRX-L-76 well-suited for demanding institutional applications where patient safety and dependable performance are essential.

Product Specs

Series:
TRX-L Series
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Cylindrical Locks
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Keyed Function:
Non-Keyed
Duty Level:
Heavy Duty
Grade:
Grade 1
Product Attribute:
Cylindrical Locks
Product Function:
Privacy/Bed/Bath
Door Thickness Range:
1-3/4"
Face Plate:
1-1/8"
Product Category:
Mechanical Locks
Department:
Door Hardware

TownSteel TRX-L-76-630 – Frequently Asked Questions

1) Will the TownSteel TRX-L-76 fit a 1-3/8 inch door?
No. The TRX-L-76 ligature-resistant lever lock is built for 1-3/4 inch doors only. If your openings are 1-3/8 inch, this is the wrong part for them. Among Grade 1 cylindrical locks we carry with a wider range, the Dexter C1000 Series covers 1-3/8 to 2 inch doors and the Falcon K101 covers 1-3/8 to 2-1/4 inch, though neither is a ligature-resistant design.
2) Is the TownSteel TRX-L anti-ligature lever lock suitable for a behavioral health unit?
That is exactly what it was built for. The TRX-L is aimed at behavioral, mental, and psychiatric healthcare facilities housing patients at risk. The stainless lever is sloped so bedding, cord, or clothing will not hold on it, and the mounting screws are tamper-resistant so a patient cannot back the lock off the door. The -76 is the privacy function, so it suits patient bedrooms and bathrooms where occupant privacy is needed without a key.
3) Does the TRX-L-76 take a key, or is it non-keyed?
It's a non-keyed privacy set. The inside turn locks the door and there is no keyed cylinder for normal entry, which is what the privacy (bed/bath) function means. Note the TRX-L family is ordered with a Schlage C keyway option for the keyed functions in the series, so if your spec calls for staff key override on patient rooms, you want a keyed TRX-L function rather than the -76.
4) What backset does the TownSteel TRX-L-76 use, and will it drop into an existing 161 prep?
It ships with the 2-3/4 inch standard backset, which is the usual commercial bore spacing, on a 1-1/8 inch face plate latch front. If the door you're replacing already carries a 2-3/4 inch backset cylindrical lock, the bore and cross-bore line up. Confirm your existing latch front matches 1-1/8 inch wide or plan to swap the strike and face plate mortise.
5) What is a Grade 1 privacy lever alternative to the TownSteel TRX-L-76 for a standard patient room that does not need a ligature-resistant lever?
The TRX-L-76 is a Grade 1 non-keyed cylindrical privacy lockset with a ligature-resistant stainless steel lever and tamper-resistant mounting screws, intended for behavioral, mental and psychiatric healthcare facilities. On an opening where anti-ligature design is not required, the Arrow MK02-TA is a Grade 1 privacy/bed/bath cylindrical lock that is fire rated and non-keyed, but uses a Tudor knob rather than a lever, so it will not satisfy an ADA lever requirement. The Hager 2540 with the Withnell lever is a Grade 2 cylindrical lock with a lever handle for 1-3/8 inch to 2 inch doors.
6) For a behavioral health corridor door that needs no locking at all, what pairs with the TownSteel TRX-L-76?
The TRX-L-76 handles the bed and bath openings, since it is a privacy/bed/bath function cylindrical lever lock. For corridor and closet doors where the latch just needs to retract, a passage function lever is the match: the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, for 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet cylindrical lever lock, fire rated, for 1-3/4 inch to 2 inch doors. Neither carries a ligature-resistant lever, so confirm which openings in the facility fall under anti-ligature requirements before mixing them in.
7) What should I use instead of the TownSteel TRX-L-76 on a patient toilet or utility door that needs an asylum function?
The TRX-L-76 is a non-keyed privacy/bed/bath lock, so it has no key override from the outside. Where the opening calls for asylum or institution function instead, the Dexter C1000 is a Grade 1 asylum (F87) cylindrical lock for 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum/institution/utility cylindrical lock with a conventional cylinder in the Schlage C keyway. Both are keyed both sides rather than privacy, so confirm the function code on the door schedule before swapping.
8) Can the TRX-L lockset go on a hollow metal door, or is it wood only?
Both. The TRX-L mounts on wood or metal doors, so you can standardize one lock across hollow metal patient room doors and wood doors in the same wing.
9) Is the TownSteel TRX-L-76 Grade 1?
Yes, ANSI Grade 1, heavy duty, and rated for commercial use. It's a sectional cylindrical lock, so it's the highest ANSI grade for a bored lockset, which is what most institutional and healthcare specs call for on patient-accessible doors.
10) Why choose a ligature-resistant lever like the TRX-L over a standard Grade 1 privacy lockset?
A conventional privacy lever, even a Grade 1 one, has a return or a projecting handle that a cord or sheet can be looped over. The TRX-L uses a sloped stainless lever plus tamper-resistant screws specifically for rooms housing at-risk patients. If the opening is a staff office, a corridor, or any door outside the patient-accessible area, you don't need the anti-ligature design and a standard Grade 1 privacy set like the Arrow MK02-TA will do the job.
11) Is the TRX-L-76 handed? Do I need to specify left or right?
No handing to specify on the TRX-L-76. It's ordered by backset, cylinder option and finish only, so one part covers both left and right hand openings.
12) I need passage and privacy on the same patient room suite. Can I match the TRX-L across functions?
Yes. The -76 is the privacy function within the TRX-L series, and the series runs other functions on the same sectional cylindrical chassis and the same ligature-resistant lever, so a bathroom privacy door and an adjacent door carry identical trim. All of it sits on 1-3/4 inch doors with the 2-3/4 inch backset, so the prep is consistent across the suite.
13) Does a keypad or electrified lever do the same job as the TownSteel TRX-L-76?
No. The TRX-L-76 is a mechanical non-keyed privacy lock with a ligature-resistant lever, controlled at the door by the occupant. A Delaney LP250 electronic keypad leverlock is Grade 2 and code-driven, and the Corbin Russwin CL33903 is a Grade 1 electrified fail safe cylindrical lever running on 12VAC/DC for 1-3/4 inch to 2 inch doors, which requires power and access control wiring to the opening. Neither provides the ligature-resistant lever geometry the TRX-L-76 is built around.
14) What finish does the TRX-L-76 privacy lever come in?
630 satin stainless steel, and the lever itself is stainless. That's the standard institutional finish, so it will match other 630 / US32D hardware already on your doors, including closers, hinges and push plates in satin stainless or satin chrome families.
15) Can I order a dummy lever that matches the TownSteel TRX-L-76 for an inactive leaf?
The TRX-L-76 is a working privacy function cylindrical lockset, not a dummy. For an inactive leaf or a closet pull, dummy trim options include the BEST 9K Series 1DT single dummy trim, a Grade 1 non-keyed heavy duty cylindrical lever, and the Accentra 455LN Augusta, a Grade 1 heavy duty dummy cylindrical lever in the 5400 Series. Those are separate lever designs, so the trim will not visually match a ligature-resistant lever on adjacent doors.
