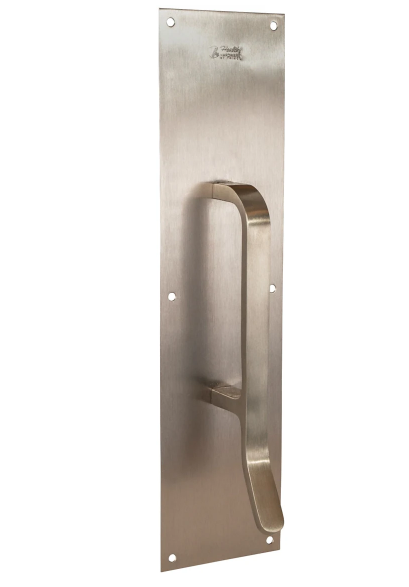

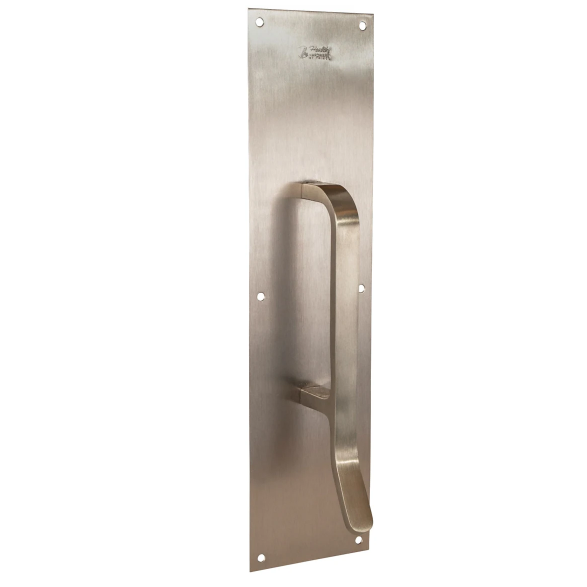

1035 & 1835 ULTIMATE RESTROOM PUSH AND PULL SET
Trimco’s 1035 and 1835 Ultimate Restroom Pulls are manufactured in North America by master craftsmen from stainless steel, bronze or brass. The ULTIMATE Restroom Pull utilizes the ADA compliant 1135 hospital grip and is combined with a .05” or 1/8” Push Plate. The pull has a special design that allows the user to pull the door open using their arm without having to “grip” the pull. The Ultimate Restroom Pulls are made with Healthy Hardware® – Bactericidal Copper and are also available in standard finishes.
FEATURES & BENEFITS
- Manufactured from stainless steel, bronze or brass for maximum durability.
- Utilizes 1135 hospital grip.
- .05” Pull Plate or Push/Pull Plate Set.
- 1/8” Pull Plate or Push/Pull Plate Set.
- Custom sizes available.
- Standard finished available.
- ADA Compliant.
APPLICATIONS
- Commercial & Industrial Buildings
- Government & Military Facilities
- Hospitality
- Hospitals & Health Care Facilities
- Manufacturing Facilities
- Nurseries & Pre-Schools
Manufacturer Resources
Product Specs
- Series:
- 1035 Series
- Duty Level:
- Heavy Duty
- ADA Compliant:
- Yes
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Pulls, Push and Pull Plates
- Product Type:
- Door Pulls
- Commercial/Residential:
- Commercial
- Subcategory:
- Door Pulls, Push and Pull Plates
- Healthy Hardware:
- Yes
- (CTC) Center-to-Center:
- 6"
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Trimco TRI-1035-1.630 – Frequently Asked Questions
1) Does the Trimco 1035 Ultimate Restroom Pull meet ADA requirements for a restroom door?
Yes, the 1035 is ADA compliant. It uses Trimco's 1135 hospital grip, and the grip is shaped so a user can hook a forearm through it and pull the door open without having to close a hand on it or twist anything. That is the point of the design on a restroom exit door, where the person leaving has wet hands or is carrying something.
2) Does the Trimco 1035 restroom pull include a push plate for the other side of the door, or is that ordered separately?
Both configurations are made. The 1035 can be ordered as a pull plate on its own, or as a push/pull plate set that includes the push plate for the opposite face. Plate stock is offered in .05 inch or 1/8 inch, so the order needs the configuration and the plate thickness called out, not just the finish and size. The heavier 1/8 inch plate is the one to specify where the door face takes cart and equipment contact.
3) I'm replacing an existing restroom pull. Will the Trimco 1035 cover the old fastener holes?
The plate is what does that work. The 1035 grip mounts 6 inches center to center, and it sits on a plate measuring 3 x 12, 3-1/2 x 15, or 4 x 16 inches, so old hole patterns that fall inside that footprint end up behind the plate. If the pull coming off is also a 6 inch center-to-center pull, the grip holes line up with what is already drilled. Measure the old pattern first and pick the plate size that swallows it; anything outside the plate footprint stays visible.
4) For a hospital or school restroom, what is the difference between the 630TG and 710CU finishes on the Trimco 1035?
Three finishes are offered and they take different approaches to hygiene. 630 is plain satin stainless steel. 630TG is that same satin stainless with the TrimGuard antimicrobial coating applied over it, so the protection lives on the surface. 710CU is Healthy Hardware Steralloy Silver, Trimco's bactericidal copper, where the copper is in the alloy itself. Every one of the three finishes is available in all three plate sizes, so picking on hygiene does not restrict which size you can order.
5) What is the closest ADA compliant alternative to the Trimco 1035 restroom pull when the opening only needs a pull and no push plate?
The Trimco 1035 Ultimate Restroom Pull is an ADA compliant heavy duty commercial pull that mounts the 1135 hospital grip on a plate, with the grip on a 6 inch center-to-center pattern. Where the door schedule calls for a bare pull with no plate behind it, the Ives 8145 45 degree offset door pull is also an ADA compliant pull and comes with heavy duty mounting hardware. The difference is what covers the stile: the 1035 grip sits on a 3 x 12, 3-1/2 x 15 or 4 x 16 plate, while the 8145 mounts as an offset bar on its own.
6) Does the grip spacing on the Trimco 1035 change between the different plate sizes?
No. The grip is 6 inches center to center on all of them. What changes is the plate: 3 x 12, 3-1/2 x 15, or 4 x 16 inches. So the size decision is about how much of the door face you want covered and what hole pattern you need to hide, not about how the pull feels in use. Trimco also makes the 1035 in custom sizes when none of the three suits the opening.
7) Why use a restroom pull instead of a standard straight door pull on a restroom door?
A straight pull is gripped with the hand. The Ives 8103HD is a 1 inch round bar heavy duty pull with through bolt mounting, and the ABH AB3300 is a 1 inch diameter flat end pull, both fine on a corridor or entry door. The Trimco 1035 exists for the exit side of a restroom: the ADA compliant 1135 hospital grip takes a forearm instead of a hand, and it can be ordered as a push/pull set so the push side of the door is covered too. If hand contact on the way out is not a concern on your project, a straight pull is the simpler layout.
8) I need a pull on both faces of the door, not a push plate on one side. What should I order instead?
The 1035 hospital grip pull is built to pair with a push plate, so it suits a door that pushes one way and pulls the other, which is the normal restroom setup. For a door that gets pulled from both sides, go to a back-to-back set: the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull, the SSPORBB24 is the round offset version of the same, and the Deltana OHP620 off-set handle pull is a back-to-back set listed for 1-1/8 to 1-3/8 inch doors.
9) Is there an ADA pull for a restroom door that doesn't put a plate on the door face?
The Ives 8145EZHD is a 45 degree offset pull described as ADA compliant, with heavy duty mounting hardware, and it goes on as a pull by itself. The Trimco 1035 takes the other route: its ADA compliant 1135 hospital grip is mounted on a plate, which costs you some door face but hides old holes and gives the door a wear surface where hands and carts hit it. On a repaint or a new door with no history, the bare pull is cleaner; on a retrofit, the plate usually earns its keep.
10) I need a plain stainless pull for a back of house door instead of a restroom push and pull set. What are the straight commercial options?
The Trimco 1035 Ultimate Restroom Pull is a commercial heavy duty set built around the 1135 hospital grip combined with a push plate, and it is offered in 630 satin stainless steel. For a door that only needs a grab bar with no plate, the ABH AB7200 is a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting, and the Ives 8103HD is a heavy duty straight pull at 1 inch round, also through bolted. Both are straight bars, so the arm-pull geometry of the 1035 grip is not part of them.
11) Is the Cal-Royal PUL-175 an equivalent to the Trimco 1035 restroom pull?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches high in stainless steel, which is the trim that goes around a rim cylinder so the door can be pulled shut at the lock. The Trimco 1035 Ultimate Restroom Pull is an ADA compliant heavy duty commercial pull that carries the 1135 hospital grip on a push plate and is meant to open a restroom door with the forearm. They mount in different places on the door and do different jobs, so one does not replace the other.
12) The Trimco 1035 grip is 6 inch center to center. What if I need a much longer pull on an entrance door?
The Trimco 1035 Ultimate Restroom Pull uses the 1135 hospital grip on a 6 inch center-to-center pattern, sized for a restroom door where the user opens with the arm. For an entrance leaf that calls for a full-length handle, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull with a flat profile and the Deltana SSPORBB24 is the 24 inch back-to-back version with round offsets. On a single-face application, the Deltana SSP1210 is a 12 inch contemporary pull mounted on one side only.
13) Staff wear gloves on this door and need knuckle clearance. Does the Trimco 1035 suit that, or is there a better shape?
The Trimco 1035 Ultimate Restroom Pull is shaped so the door can be pulled open with the forearm without gripping the pull, which is the opposite of a hand-around-the-bar grab. For a gloved full-hand pull, the Ives 8102HD is a heavy duty straight pull on a 3/4 inch round bar with 1-1/2 inch clearance behind it, and the Ives 8169 is a C style offset solid pull at 1 inch diameter with heavy duty mounting. All three are heavy duty; the difference is whether the hand goes around the bar or the arm hooks the grip.
14) Our spec calls for an antimicrobial pull surface. How does the Trimco 1035 compare with a standard stainless commercial pull?
The Trimco 1035 Ultimate Restroom Pull is built with Healthy Hardware bactericidal copper and is ordered in 710CU Healthy Hardware Steralloy Silver or in 630TG satin stainless with TrimGuard antimicrobial coating, alongside plain 630 satin stainless. A standard commercial pull such as the ABH AB7200 is solid stainless steel, a flat end bar at 7/8 inch diameter with through-bolt mounting, and the ABH AB3300 is a straight flat end commercial pull at 1.00 inch diameter. Those are bare bar pulls in stainless; the finish choice on the 1035 is what carries the copper or coated surface.
15) Will the Trimco 1035 hold up on a high traffic public restroom door?
It is rated heavy duty and specified for commercial use, made in North America from stainless steel, bronze or brass. Trimco lists it for hospitals and health care facilities, government and military, hospitality, manufacturing plants, nurseries and pre-schools, and commercial and industrial buildings. For the roughest traffic, order the 1/8 inch plate rather than the .05 inch.
16) I need a pull that fits around a rim cylinder night latch. Is the Trimco 1035 the right part?
No. The 1035 is a hospital grip restroom pull mounted on a push or pull plate, with no provision for a cylinder. For an out-swinging door where the pull has to surround a rim cylinder, the Cal-Royal PUL-175 night latch cylinder pull is the part for that job, 3-1/2 inch height in stainless steel construction.
17) The Trimco 1035 comes in three plate sizes. Where do I go if the grip length has to be something other than a catalog size?
The Trimco 1035 Ultimate Restroom Pull is offered in 3 x 12, 3-1/2 x 15 and 4 x 16, and custom sizes are made to order. If the requirement is a bare pull cut to a specific length rather than a grip on a plate, the ABH AB3330 is an offset round end pull with custom length options. The AB3330 is a surface pull on its own, so a push plate on the opposite face would be specified separately.
18) What is the difference between a surface mounted offset pull like the ABH AB3310 and the Trimco 1035 restroom pull?
The ABH AB3310 is an offset flat end door pull, commercial grade and surface mounted, so it fastens to the door face as a standalone handle. The Trimco 1035 Ultimate Restroom Pull carries the 1135 hospital grip on a plate that spans 3 x 12, 3-1/2 x 15 or 4 x 16 and pairs with a push plate on the opposite face, so it covers the stile and finishes both sides of the door as a set. Both are commercial pulls; the choice comes down to whether the door needs a bare handle or a matched push and pull assembly.
