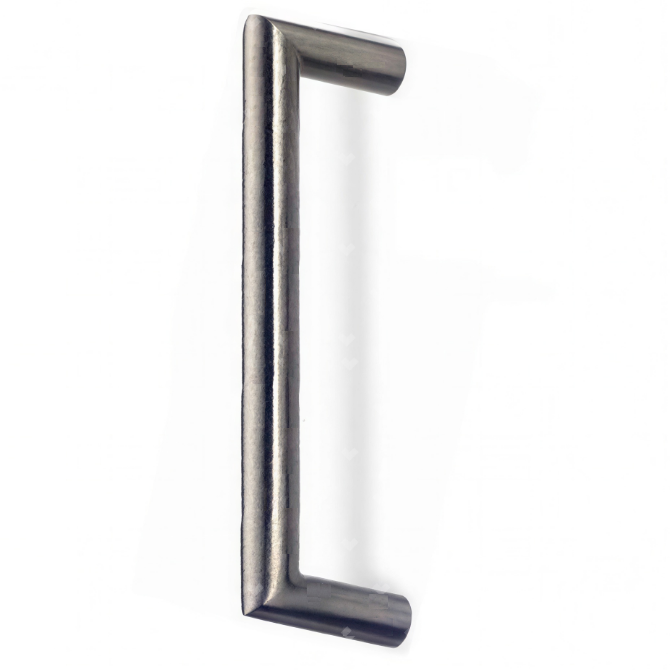

Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered

Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered

(No reviews yet) Write a Review

Model: TRI-AP132-8-4.605
From the AP100 Series Collection
$956.81
$832.46
Selected Finish is
Selected Mounting is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$956.81
$832.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO AP132 1-1/4" DIAMETER ARCHITECTURAL STRAIGHT PULLS MITERED OVERVIEW

AP132 1-1/4" Diameter Architectural Straight Pulls Mitered. 1-1/4" Diameter Architectural Straight Pulls Mitered.

Trimco’s AP100 Series Straight Pulls offer a wide variety of products to fit most any application. The AP100 Pull Series is ADA compliant and options include leather wrapped grips, engraving and back-to-back mounting. These Straight Pulls are manufactured from stainless steel, bronze, brass and aluminum to meet any design specification.

Buy the TRIMCO AP132 Series today to add a stylish hardware for your home!

TRIMCO AP100 SERIES DIAMETER ARCHITECTURAL STRAIGHT PULLS MITERED PRODUCT FEATURES

  • Wide array of material sizes and dimensions to meet any design specification
  • Manufactured from stainless steel, bronze, brass and aluminum for durability and long life
  • Large range of center-to-center dimensions: 8″ to 48″
  • Material options include 3/4″ round, 1” dia. and 1-1/4″ dia.
  • ADA Compliant
  • Optional: Engraving for Singe Pulls or Back to Back (BTB) Pulls
  • Optional: Leather Wrapped
  • If a price is not shown for a particular finish, it may be available at the special price or by special quotation if quantaties warrant. Minimum quantities may apply.

TRIMCO AP132 SERIES COLOR VARIATIONS

Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Bright Brass (605)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Brass (606)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Bright Bronze (611)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Bronze (612)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Oil Rubbed Bronze (613)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Dark Oxidized Satin Bronze (613E)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Matte Black (622)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Bright Chrome (625)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Chrome (626)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Aluminum (628)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Bright Stainless Steel (629)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Stainless Steel (630)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Bright Stainless Steel (316P)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Satin Stainless Steel (316S )
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Healthy Hardware Steralloy Silver (710CU)
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered Special Finish (SF)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

TRIMCO AP100 SERIES COLLECTION

Trimco AP111 3/4" Diameter Architectural Straight Pulls Bent
Trimco AP112 3/4" Diameter Architectural Straight Pulls Mitered
Trimco AP122 1" Diameter Architectural Straight Pulls Mitered
Trimco AP121 1" Diameter Architectural Straight Pulls Bent
Trimco AP131 1-1/4" Diameter Architectural Straight Pulls Bent
Trimco AP132 1-1/4" Diameter Architectural Straight Pulls Mitered
Trimco AP142 1-1/2" Diameter Architectural Straight Pulls Mitered

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP100 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Diameter:
1-1/4"
Product Dimension:
1-1/4" Diameter
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP100 Series
Department:
Door Hardware

Trimco TRI-AP132-8-4.605 – Frequently Asked Questions

1) What sizes does the Trimco AP132 straight pull come in, and how is the size measured?
The AP132 mitered straight pull is ordered by center-to-center dimension: 8, 10, 12, 18, 24, 36 and 48 inches. That is the distance between mounting points, not the overall bar length, so lay out your door prep to the center-to-center figure. The grip itself is 1-1/4 inch diameter across every size.
2) Will the AP132 pull work on a 1-3/4 inch commercial door?
Yes. The AP132 is ordered to door thickness, and 1-3/4 inch is one of the choices, along with 1-3/8, 2, 2-1/4, 2-1/2 and 3 inches. Because the pull is specified by thickness, you get fasteners sized to the door instead of cutting screws on site, so confirm the leaf thickness before you order rather than after.
3) Is the Trimco AP132 pull ADA compliant for a public building entrance?
The AP100 Series straight pulls, AP132 included, are ADA compliant. It is a commercial-rated pull, used on commercial and industrial buildings, government and military facilities, hospitality, multifamily and retail openings.
4) My doors are 1-1/8 inch thick. Will the AP132 fit?
No. The AP132 starts at 1-3/8 inch door thickness and goes up to 3 inches, so a 1-1/8 inch leaf is below its range. For a thinner door, the Deltana OHP620 back-to-back off-set pull covers 1-1/8 to 1-3/8 inch.
5) I need an offset pull instead of a straight one - what should I use in place of the Trimco AP132?
The AP132 is a straight pull with mitered ends, so it mounts parallel to the door face with no offset leg. For an offset grip, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware and is ADA compliant, the Ives 8169 is a C style offset solid pull in 1 inch diameter, and the ABH AB3310 is an offset flat end pull for surface mount. The AP132 itself is ADA compliant as well, so the choice between straight and offset is a grip geometry and clearance decision rather than a code one.
6) What is the closest equivalent to a Trimco AP132 straight pull from another manufacturer?
The Trimco AP132 is a 1-1/4 inch diameter straight architectural pull with mitered ends, made of stainless steel. The closest straight-bar equivalents from other makers are the Ives 8103HD, a heavy duty straight door pull in 1 inch round bar with through-bolt mounting, and the ABH AB3300, a straight flat end pull handle in 1.00 inch diameter for commercial doors. Both trade the AP132's 1-1/4 inch bar for a 1 inch bar, so if the drawing calls out grip diameter, that is the point to check before swapping.
7) What is the difference between E-Mount and G-Mount on Trimco AP100 pulls?
Mounting is a required choice on the AP132: E-Mount is the standard option, G-Mount the alternate. Pick one at order time, because it determines the fastener arrangement that ships with the pull. Fasteners supplied are wood and machine screws.
8) Mitered or bent straight pull, which should I specify?
The AP132 is the mitered version, meaning the grip meets the post at a cut angle for a crisp squared-off look. If you want the softer radiused return instead, the AP131 is the same 1-1/4 inch diameter in a bent profile. Both are in the AP100 Series, so you can mix profiles across a building and keep the same finish.
9) What finishes can I get the AP132 pull in to match the rest of my hardware?
Twelve stocked finishes: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 625 bright chrome, 626 satin chrome, 628 satin aluminum, 629 bright stainless and 630 satin stainless. 630 is the usual match for commercial levers and exit devices.
10) Can I get the AP132 mounted back to back on a glass or entry door?
Yes, back-to-back (BTB) mounting is an option on the AP100 Series, as is engraving on either single or back-to-back pulls, and leather wrapped grips. Specify the option with the order; the base pull is stainless steel, with bronze, brass and aluminum also produced in the series.
11) Which pull should I use if the Trimco AP132 bar is too heavy looking for a light interior door?
The AP132 carries a 1-1/4 inch diameter bar. For a slimmer profile, the ABH AB7200 is a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting, and the ABH AB3300 uses a 1.00 inch diameter bar. Within Trimco's own straight pull family the AP112 and AP122 cover 3/4 inch and 1 inch diameters in the same mitered style, so the look carries over at a lighter scale.
12) Is a Deltana SSP1210 a substitute for a Trimco AP132 on a commercial entrance?
They are different animals. The Deltana SSP1210 is a 12 inch contemporary pull supplied single side. The Trimco AP132 is specified as commercial, runs center-to-center sizes from 8 inch up to 48 inch, and is offered in door thicknesses from 1-3/8 inch to 3 inch. If the opening needs a long pull, a thick door, or a matched back-to-back set, the AP132 covers that range; the SSP1210 is a fixed 12 inch single-side unit.
13) What back-to-back pull sets compare to ordering the Trimco AP132 back to back?
The AP132 is part of Trimco's AP100 Series, which offers back-to-back mounting as an option along with engraving and leather wrapped grips. If you want a factory back-to-back set from another maker, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull, the Deltana SSPORBB24 is a 24 inch back-to-back round offset pull, and the Sure-Loc PL-2KN is a knurled long door pull supplied double-sided. All three are offset or knurled grips rather than the AP132's plain mitered straight bar.
14) For a high-traffic entrance, how does the Trimco AP132 compare to the Ives heavy duty pulls?
The Trimco AP132 is a commercial 1-1/4 inch diameter stainless steel straight pull, ADA compliant, used on commercial and industrial buildings, government and military facilities, hospitality, multifamily and retail. The Ives 8102HD is a heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance, and the Ives 8103HD is a heavy duty straight pull in 1 inch round with through bolt mounting. The main practical difference is grip size and mounting method: the AP132 ships with wood and machine screws, while the 8103HD is specified with through bolts.
15) Is the Trimco AP132 suitable for a residential front door, or should I look at something else?
It will work, but the AP132 is a commercial pull with an architectural mitered profile. If you want a decorative residential look, the Emtek Baden, Brisbane, Arts and Crafts and cast bronze Art Nouveau 8 inch pulls are the ornamental route, and the Deltana SSP1210 is a 12 inch contemporary single-side pull.
