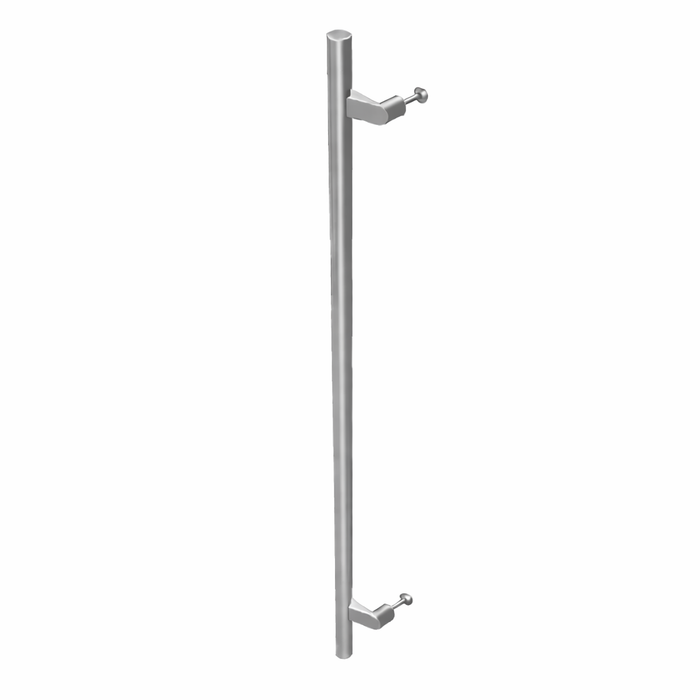

Trimco AP413 1-Inch Diameter Architectural Ladder Pull with Offset Standoffs and Square Ends, Satin Stainless Steel finish, E-Mount, single pull shown

Trimco AP413 Architectural Ladder Pull, Offset Standoffs, Square Ends, 1" Diameter

(1 review) Write a Review

Model: AP413E-128.605
From the AP400 Series Collection
$526.64
$423.73
Selected Finish is
Selected Mounting is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$526.64
$423.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trimco AP413 Architectural Ladder Pull — Offset Standoffs, Square Ends

The Trimco AP413 is a commercial-grade architectural ladder pull built for high-traffic openings where clean geometry and reliable grip matter. Its defining features: 1" diameter round bar, offset standoffs that project the bar away from the door face for a clear grip zone, and square ends for a crisp, contemporary profile. ADA compliant across all configurations.

Available in two mounting systems — E-Mount (through-bolt for metal and wood doors) and G-Mount (glass door mounting) — and in lengths from 12" to 96", the AP413 covers single-door entries through full-height sidelite and storefront applications. Thirteen standard architectural finishes including satin stainless (630), matte black (622), oil rubbed bronze (613), and marine-grade 316 stainless (316S/316P).

Key Features

  • 1" diameter grip — offset standoffs project bar clear of door face for comfortable, code-compliant grasp
  • Square ends — clean architectural profile suited to modern commercial and institutional design
  • E-Mount (metal/wood doors) and G-Mount (glass doors) available on every size and finish
  • Sizes: 12", 18", 24", 36", 48", 60", 72", 84", 96"
  • Substrate: stainless steel, bronze, brass, or aluminum depending on finish selected
  • ADA compliant
  • Includes wood and machine screws
  • Optional engraving (single pull or back-to-back)
  • Optional leather wrap

Typical Applications

  • Glass storefront and sidelite doors (G-Mount)
  • Commercial office and retail entrances
  • Healthcare, government, and institutional facilities
  • Hospitality and multifamily common areas
  • High-traffic wood and hollow metal doors (E-Mount)

Resources & Downloads

AP400 Series Pulls Cut Sheet (PDF)

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Series:
AP400 Series
Subcategory:
Door Pulls, Push and Pull Plates
Fasteners:
Wood and Machine Screws
Product Diameter:
1"
Product Dimension:
1" Diameter
Product Category:
Door Trim and Accessories
Product Substrate:
Stainless Steel
Collection:
AP400 Series
Department:
Door Hardware

Trimco AP413E-128.605 – Frequently Asked Questions

1) Will the Trimco AP413 ladder pull mount on a glass storefront door?
Yes, order it in G-Mount. The AP413 comes in two mounting systems: E-Mount, which through-bolts metal and wood doors, and G-Mount for glass doors. Both are offered on every size from 12 to 96 inches and in all thirteen finishes, so choosing glass mounting doesn't limit the pull you can put on the opening. For a wood or hollow metal leaf, E-Mount is the one you want.
2) Is the Trimco AP413 ladder pull ADA compliant?
Yes. The AP413 is ADA compliant across all configurations. The offset standoffs are what do it: they hold the 1 inch round bar clear of the door face so a hand can wrap the grip without knuckles hitting the door, which is the graspability requirement. That holds in every length and both mounting types.
3) What else could I use instead of the Trimco AP413 for a 1 inch diameter commercial door pull?
A few real alternatives depending on what you're matching. The Ives 8103HD is a 1 inch round straight pull with through-bolt mounting, heavy duty, if you want a straight bar rather than offset standoffs. The Ives 8169 is a 1 inch diameter C style offset solid pull. The ABH AB3300 Series is a 1 inch straight flat end pull. If you're going the other way and want a lighter bar, the ABH AB7200 is 7/8 inch solid stainless with through-bolt mounting. Where the AP413 pulls ahead is length range and finish count, since those alternatives are single-format pulls rather than a 12 to 96 inch program in thirteen finishes.
4) What is the closest equivalent to the Trimco AP413 ladder pull in a 1 inch diameter offset pull from another manufacturer?
The nearest match is the ABH AB3330, an offset round end pull with custom length options, and the ABH AB3310, an offset flat end door pull in a commercial grade surface mount. Both share the AP413's defining geometry: a bar carried on offset standoffs rather than sitting flat against the door. The difference is at the ends. The AP413 uses square ends and the AB3330 uses round ends, so if the drawing calls for a crisp square terminal, the AB3330 reads differently on the door. The AB3310 uses flat ends. The AP413 also carries a 1 inch diameter bar and is offered from 12 inches through 96 inches in E-Mount for metal and wood doors and G-Mount for glass.
5) I need a 1 inch round pull but the door has no room for standoff projection - what should I use instead of the Trimco AP413?
Go to a straight pull, where the bar mounts parallel to the door face instead of being carried out on offset standoffs. The Ives 8103HD is a heavy duty straight door pull, 1 inch round, with through bolt mounting, and the ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter. Both hold the same 1 inch grip diameter as the AP413 without the offset geometry. Note the end treatment differs: the AP413 has square ends, the AB3300 has flat ends.
6) Is the Ives 8169 the same thing as a Trimco AP413?
They are both 1 inch diameter offset pulls, but the bar shape is not the same. The Ives 8169 is a C style offset solid door pull at 1 inch diameter with heavy duty mounting, meaning the pull turns back toward the door at both ends to form the offset. The Trimco AP413 is a ladder pull: a straight 1 inch bar held off the face by separate offset standoffs, with square ends. If the elevation shows a straight horizontal or vertical bar with visible standoffs, the 8169 will not produce that look. The AP413 also runs to 96 inches for full height storefront and sidelite openings.
7) We need an ADA compliant pull for a barrier free entrance - does the Trimco AP413 qualify, and what else does?
The Trimco AP413 is ADA compliant across all of its configurations, with the offset standoffs projecting the bar clear of the door face to give a graspable zone behind the bar. If the specification calls for an angled grip instead of a straight bar, the Ives 8145EZHD is a 45 degree offset door pull with heavy duty mounting hardware, also listed as ADA compliant. The choice between them is geometry: straight ladder bar in lengths from 12 inches to 96 inches for the AP413, versus a 45 degree offset handle for the 8145EZHD.
8) What lengths does the Trimco AP413 architectural pull come in?
Nine lengths: 12, 18, 24, 36, 48, 60, 72, 84 and 96 inches. The short end covers a single office or retail leaf where you just need a grip; 84 and 96 inch cover full-height storefront and sidelite openings where the architect wants the pull to read the full leaf. Every length is offered in both E-Mount and G-Mount.
9) Do I need to buy separate mounting hardware for a Trimco AP413 pull?
No. Wood and machine screws ship with the AP413, so a standard wood or hollow metal install is complete out of the box once the door is prepped. What isn't included is the door prep itself, and on glass you're specifying the G-Mount version because glass takes a different mounting method entirely.
10) What finishes can I get the AP413 ladder pull in to match the rest of my building?
Thirteen architectural finishes: bright and satin 316 marine-grade stainless (316P, 316S), bright brass (605), satin brass (606), blackened satin brass (609), bright bronze (611), satin bronze (612), oil rubbed bronze (613), dark oxidized satin bronze (613E), matte black (622), satin aluminum (628), and bright and satin stainless (629, 630). Those BHMA numbers are what you match against the locks, closers and hinges already on the other openings, so if the building is standardized on 630 satin stainless the pull drops straight into that scheme. Note the substrate follows the finish: stainless, bronze, brass or aluminum depending on which you pick.
11) Should I use a 316 stainless pull or standard stainless on an exterior or coastal door?
For coastal, poolside or heavy wash-down exposure, specify the AP413 in 316S satin or 316P bright, which are marine-grade 316 stainless. The 629 and 630 stainless options give you the same visual look but are the standard architectural stainless finishes. If the opening sees salt air or chlorine, the 316 versions are the ones to spec; on a protected interior lobby door the difference doesn't buy you anything.
12) What is the difference between a square-end offset ladder pull and a round-end offset pull?
It is purely the end cap profile and it decides the look, not the function. The AP413 uses square ends on a 1 inch round bar with offset standoffs, which gives the crisp flat-cut termination modern commercial and institutional design calls for. If you want the softer rounded termination in the same offset format, the ABH AB3330 Series is an offset round end pull, and the ABH AB3310 is an offset flat end. Grip diameter and standoff geometry are what drive comfort and ADA graspability; the end cap is architectural.
13) Can I put the same pull on both sides of the door, back to back?
Yes, the AP413 is configured back to back, and the G-Mount version is the back-to-back arrangement used on glass. On a through-bolted E-Mount wood or metal door, back-to-back is how the two pulls anchor to each other through the leaf. If you need a pull on one face only, order the single pull configuration. Optional engraving is offered either way, single pull or back-to-back.
14) Is the Trimco AP413 heavy enough for a high-traffic entrance or is it a residential pull?
It's a commercial-grade pull built for high-traffic openings, with a stainless steel substrate on the stainless finishes. Typical placements are commercial office and retail entrances, healthcare, government and institutional facilities, hospitality and multifamily common areas, and glass storefront and sidelite doors. If you're specifying for a residential entry with a decorative look instead, the Emtek Baden, Brisbane, Arts and Crafts and Art Nouveau 8 inch pulls are the decorative-side options.
15) Is the Ives 8102HD an alternative to the Trimco AP413 if I want more knuckle clearance?
The Ives 8102HD is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance, so it publishes its clearance dimension directly and uses a thinner bar. The Trimco AP413 uses a 1 inch diameter bar on offset standoffs that project it away from the door face for a clear grip zone, and it is ADA compliant. Both give a straight round bar to grasp; the 8102HD at 3/4 inch is the lighter section, the AP413 the fuller 1 inch grip, and the AP413 is the one available in G-Mount for glass doors and in lengths up to 96 inches.
16) I searched for a door pull and found the Cal-Royal PUL-175 - is that the same kind of part as a Trimco AP413?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height, stainless steel construction. It is the small plate and grip that mounts around a rim cylinder on a night latch door, not a grip bar for opening a full entrance. The Trimco AP413 is an architectural ladder pull, a 1 inch diameter bar on offset standoffs in lengths from 12 inches to 96 inches. If the door needs a cylinder pull at the lock and a ladder pull for the entry, those are two separate items.
