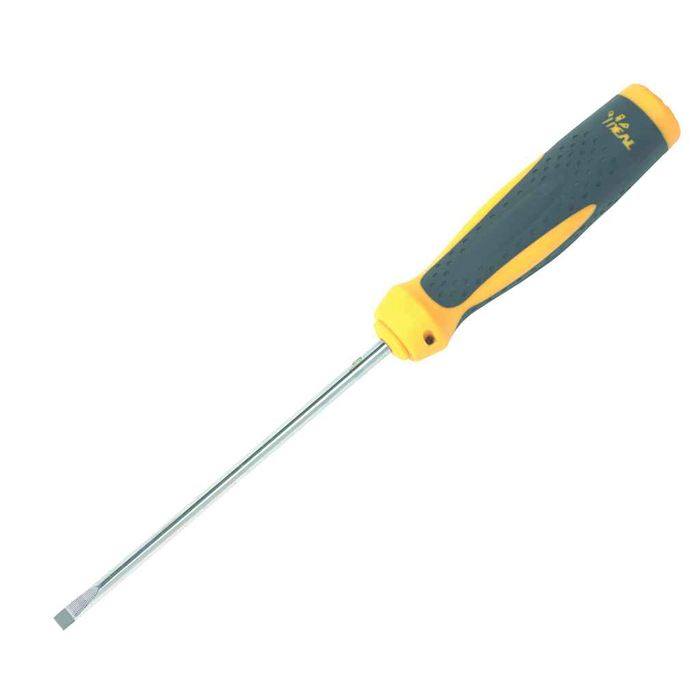

IDEAL Industries 30-333 Twist-a-Nut™ Pro Electrician's Screwdriver, 1/4" x 6", Cabinet Tip

The IDEAL 30-333 is a cabinet tip slotted screwdriver with a 1/4 inch tip on a 6 inch shank. Cabinet tip means the blade sides run straight down with no flare at the tip, so it drops into a recessed or counterbored screw hole that a flared keystone tip would bind in. That is the tip style you want for terminal screws set back in device wells and panel interiors.

Yes. Standard 15A and 20A receptacle and switch terminal screws take a slotted blade in the 3/16 to 1/4 inch range, and the 30-333 is a 1/4 inch slotted cabinet tip, which is the common size for device terminals and panel lug screws. The straight cabinet profile matters here because device terminal screws often sit inside a recess on the yoke.

The 30-333 is a standard trade screwdriver with a chrome vanadium shank and a vapor-blasted cabinet tip. If your work calls for a tool rated for live conductors, you need a driver specifically sold as insulated with a dielectric-tested blade and handle, not a standard-shank driver. Treat this one as a tool for de-energized work.

Twist-a-Nut is IDEAL's handle-end feature for seating twist-on wire connectors. Rather than finishing a wire nut by hand, you engage the connector on the handle end and drive it home, which is quicker and easier on the fingers when you are making up a box full of splices. It is a screwdriver first, with the wire connector driver built into the same tool.

The shank is chrome vanadium steel, which is the standard alloy for hand-tool shanks because it resists twisting and rounding under repeated torque. IDEAL also vapor blasts the tip, giving it a slightly roughened surface that bites the screw slot instead of camming out. That combination is aimed at trade use, not occasional homeowner work.

Go cabinet tip, which is what the IDEAL 30-333 uses, when the screw sits down inside a recess, a counterbore, or a tight device well, because the parallel blade sides clear the hole walls. Go keystone when you want the extra blade strength at the tip for heavy prying-free torque on exposed screws. For panel interiors, device terminals, and enclosure screws set back in a boss, the cabinet profile is the one that reaches.

There is one configuration to order: IDEAL part number 30-333, the 1/4 inch by 6 inch cabinet tip. No handing, no finish, no length choice to specify. If you need a different blade width or shank length, that is a different IDEAL part number rather than an option on this one.
