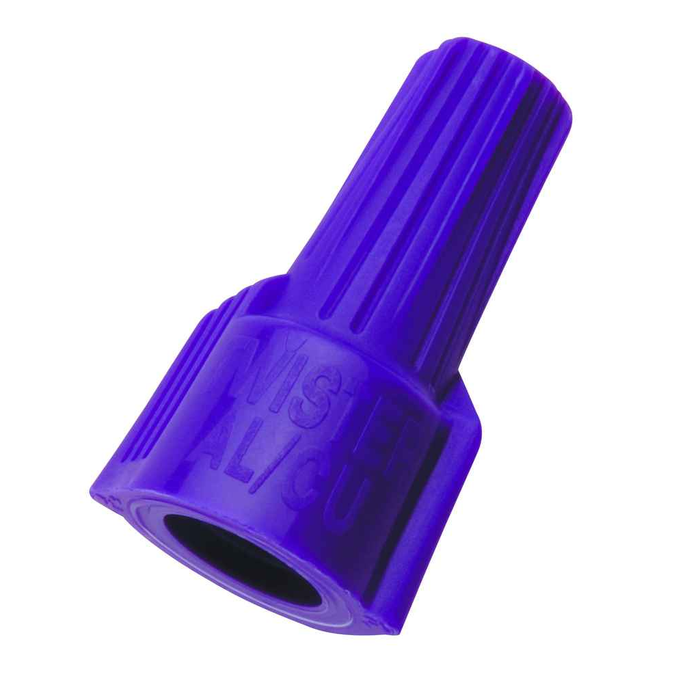

Ideal Industries Twister Al/Cu Wire Connector Model 65
Professional-Grade Aluminum-to-Copper Connection Solution
The Ideal Industries Twister Al/Cu Wire Connector Model 65 delivers professional-grade aluminum-to-copper connection performance for electrical installations. This purple twist-on connector features pre-filled antioxidant compound and live-action spring technology designed for electricians, electrical contractors, and electrical professionals, providing the reliable performance and industry-leading quality that prevents aluminum corrosion while ensuring secure connections.
Professional Features & Benefits
Advanced Connection Technology
- Pre-filled Antioxidant Compound - Prevents oxidation of aluminum conductors for long-lasting electrical connections
- Live-Action Square-Wire Spring - Expands and contracts with aluminum wire to maintain secure connection integrity
- Swept Wings and Hexagonal Head - Enables easy installation by hand or with standard nut driver for efficient electrical work
- Aluminum Corrosion Prevention - Specifically engineered to provide secure connections while preventing aluminum conductor deterioration
Safety and Code Compliance
- UL Listed to 486C Standards - Meets rigorous safety requirements for aluminum-to-copper electrical connections
- CSA Certified to C22.2 #188 - Canadian safety approval for professional electrical installations
- N.E.C. Section 110-14(b) Compliant - Meets National Electrical Code requirements for aluminum-to-copper connections
Technical Specifications
Model 65 purple wire connector designed specifically for aluminum-to-copper and copper clad-to-copper connections. Features thermoplastic construction with antioxidant compound filling. One-time use connector with hexagonal head design for standard nut driver compatibility. UL Listed to 486C and CSA Certified to C22.2 #188 for professional electrical code compliance.
Installation & Setup
- Strip wire ends to appropriate length ensuring clean, straight cuts for optimal connection
- Insert aluminum and copper conductors into connector ensuring proper wire insertion depth
- Twist connector clockwise by hand or with nut driver until wires are securely joined
- Verify connection is tight and conductors are properly seated within connector body
- Ensure antioxidant compound covers all aluminum conductor surfaces for corrosion protection
- Test connection integrity before energizing circuit per electrical code requirements
Professional Applications
Ideal for:
- Residential Electrical - Aluminum service entrance connections to copper branch circuits and panel connections
- Commercial Wiring - Building electrical systems requiring aluminum-to-copper conductor transitions
- Industrial Installations - Manufacturing facility electrical connections between aluminum feeders and copper equipment
- Electrical Panel Work - Service panel connections where aluminum service conductors meet copper branch circuits
- Retrofit Projects - Upgrading electrical systems with mixed aluminum and copper conductor requirements
- Code Compliance Work - Meeting NEC requirements for safe aluminum-to-copper electrical connections
- Service Entrance Applications - Connecting aluminum service conductors to copper distribution systems
- Electrical Maintenance - Professional repair and upgrade work requiring aluminum-copper connections
Antioxidant Technology Advantage
Ideal Industries pre-filled antioxidant compound technology prevents aluminum oxidation that can cause connection failure and electrical hazards. The live-action spring design accommodates aluminum wire expansion and contraction, maintaining connection integrity over time while the swept wing design ensures easy installation for electrical professionals.
Why Choose Ideal Industries Quality?
Ideal Industries commitment to UL listing and CSA certification ensures these aluminum-to-copper connectors meet the highest safety standards for electrical installations. With specialized antioxidant compound and live-action spring technology, these connectors provide reliable performance and code compliance that electrical professionals trust for critical aluminum-copper connection applications.
Manufacturer Resources
Spec Sheet
Product Specs
- Product Group:
- Wire Connectors & Terminals
- Department:
- Electrical
- Product Subgroup:
- Wire Connectors
- Product Type:
- Connector
Ideal Industries 30-265 – Frequently Asked Questions
1) Can I use the Ideal Twister Model 65 purple connector to splice aluminum wire to copper?
That is exactly what the Model 65 is built for. It joins aluminum to copper and copper-clad to copper, and it comes pre-filled with antioxidant compound so the aluminum conductor surfaces are protected from oxidation as soon as the connector is twisted on. A standard tan or yellow wire nut is not rated for that job. The Model 65 is UL Listed to 486C, CSA Certified to C22.2 #188, and meets N.E.C. Section 110-14(b) for aluminum-to-copper connections. Order it as Ideal part 30-265.
2) Do I need to add anti-oxidant paste when using the purple Model 65 Al/Cu connector?
No separate tube of paste is needed. The purple Twister Al/Cu connector ships pre-filled with antioxidant compound. All you do on install is make sure the compound covers the aluminum conductor surfaces once the wires are seated, which happens as you twist the connector down. That is the step that stops the aluminum oxidation that causes hot connections later.
3) Will an inspector accept purple Twister Al/Cu connectors on an aluminum branch circuit repair?
The Model 65 is UL Listed to 486C, the standard covering splicing wire connectors, and CSA Certified to C22.2 #188 for Canadian work. It is stated to meet N.E.C. Section 110-14(b), which is the code section governing splices and the connectors used for them. Those are the listings an inspector looks for on an aluminum-to-copper transition.
4) Is the Ideal Model 65 purple wire connector reusable if I have to pull the splice apart?
It is a one-time use connector. Once it has been twisted onto a splice the antioxidant compound is spent and the spring has already set to those conductors, so if you open the joint, cut back and use a fresh connector rather than reinstalling the same one. Worth keeping that in mind on panel retrofit work where you may be re-terminating the same conductors more than once.
5) What does the live-action spring in the Ideal Twister Al/Cu connector actually do?
Aluminum conductors expand and contract with load and temperature more than copper does, and that movement is what loosens an ordinary splice over time. The square-wire spring inside the Model 65 expands and contracts with the wire so the connection stays tight through those cycles. That, together with the antioxidant fill, is the reason this connector is rated for aluminum where a general purpose wire nut is not.
6) What is the purple wire nut used for versus the standard yellow or red ones?
Color on Ideal Twisters signals the family and range, and purple is the Al/Cu connector, part 30-265, Model 65. Yellow and red Twisters are copper-to-copper connectors and carry no antioxidant fill. If either conductor in your splice is aluminum or copper-clad aluminum, the purple Al/Cu is the one to reach for; if the splice is all copper, use the standard copper-only Twister instead and save the Al/Cu for the transitions.
7) Can the purple Al/Cu Twister connector be driven with a nut driver instead of by hand?
Yes. The head is hexagonal and takes a standard nut driver, and the body has swept wings for hand tightening. On aluminum splices in a crowded panel the nut driver is usually the better call, since aluminum needs the connector run down fully to seat properly.
8) Where does an aluminum-to-copper connector like the Ideal Model 65 typically get used on a building?
The common spots are the service entrance and the panel, where aluminum service or feeder conductors have to land on copper branch circuits or copper equipment leads. It also shows up on retrofit and maintenance work in buildings with mixed aluminum and copper wiring, and in industrial installs where aluminum feeders meet copper equipment terminations. Anywhere the two metals meet in a splice, the connector has to be rated Al/Cu, which the purple Model 65 is.
