Ty-Rap Self-Riveting Cable Tie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1.97

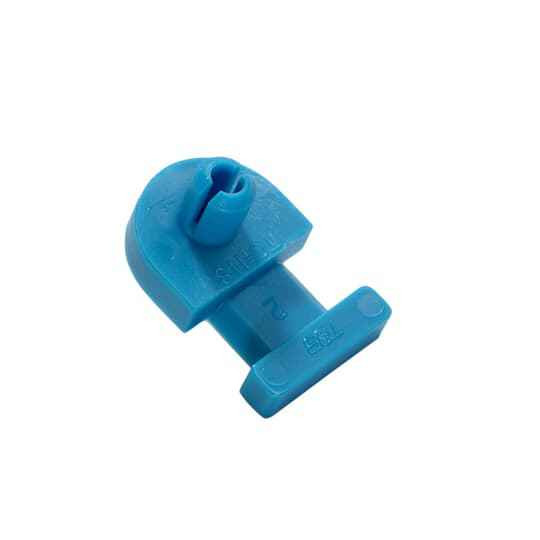

Ty-Rap Rivet-Mounted Mounting Base

Ty-Rap Self-Riveting Cable Tie Mounting Base #8 Push Mount Nylon

(No reviews yet) Write a Review

Model: TC120

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap Self-Riveting Cable Tie Mounting Base #8 Push Mount Nylon

Professional Cable Management Mounting Solution

The Ty-Rap Self-Riveting Cable Tie Mounting Base delivers reliable cable tie mounting with #8 mounting holes and push mount installation. Constructed from durable Nylon/Polyamide 6.6 material, this self-riveting base provides secure cable management solutions with temperature ratings from -40 to +185 °F for versatile professional applications.

Professional Features & Benefits

  • Self-Riveting Design: Firmly locks into position when projecting pin is pushed into the mounting hole for secure installation without additional hardware
  • #8 Mounting Holes: Standard #8 hole compatibility ensures easy integration with existing mounting systems and hardware
  • Push Mount Installation: Simple push-to-install design reduces installation time and labor costs
  • Nylon/Polyamide 6.6 Construction: High-strength material provides excellent durability and chemical resistance for long-term performance
  • Wide Temperature Range: -40 to +185 °F operating range accommodates diverse environmental conditions and applications
  • Professional Cable Management: Designed specifically for cable tie mounting to organize and secure wire runs efficiently

Technical Specifications

  • Brand Label: Ty-Rap
  • Effective Date: 19680627
  • Idea Granular Category Code Igcc: 5065 >> Cable tie mounts
  • Mounting Holes: #8
  • Mounting Type: Push Mount
  • Process Temperature Rating: -40 to +185 °F
  • Product Material: Nylon/Polyamide 6.6
  • Product Name: TY-RAP FASTENING
  • Product Type: Self-Riveting Base
  • Rohs Date: 9AKK107992A8805
  • Special Functions: Firmly locks into position when projecting pin is pushed into the mounting hole. Slip tie under bas
  • Department: Elecrtical

Professional Applications

  • Electrical Panel Cable Management
  • Industrial Equipment Wire Organization
  • Commercial Building Infrastructure
  • Telecommunications Installation
  • Control Cabinet Wire Routing
  • Data Center Cable Management
  • Manufacturing Facility Wiring

Why Choose Ty-Rap Quality?

Ty-Rap cable tie mounting solutions provide proven reliability with high-strength Nylon/Polyamide 6.6 construction and wide temperature tolerance. The self-riveting design ensures secure installation while the push mount system simplifies deployment across professional electrical and telecommunications applications.

Manufacturer Resources

Product Specs

Brand Label:
Ty-Rap
Effective Date:
19680627
Idea Granular Category Code Igcc:
5065 >> Cable tie mounts
Mounting Holes:
#8
Installation Category:
Push Mount
Process Temperature Rating:
-40 to +185 °F
Product Material:
Nylon/Polyamide 6.6
Product Name:
TY-RAP FASTENING
Product Type:
Self-Riveting Base
Rohs Date:
9AKK107992A8805
Special Functions:
Firmly locks into position when projecting pin is pushed into the mounting hole. Slip tie under bas
Department:
Electrical

Ty-Rap TC120 – Frequently Asked Questions

1) How does the Ty-Rap self-riveting cable tie base attach to a panel or enclosure?
It installs with a push. The Ty-Rap self-riveting base has a projecting pin that locks firmly into position once it is pushed into the mounting hole, so you don't need a screw, nut, or rivet gun to set it. Drill or use an existing hole, push the base in, then slip the cable tie under the base to secure the bundle.
2) What size hole do I need to drill for the Ty-Rap TC118 or TC120 push mount base?
Two mounting hole diameters are offered: the TC118-TB fits a 4.4mm hole and the TC120 fits a 4.9mm hole. Both are specified for #8 mounting holes, so match the variant to the hole you already have or will drill. Pushing a 4.9mm pin into a 4.4mm hole will not seat, and a 4.4mm pin in an oversized hole will not lock, so pick by measured hole size.
3) Can I use these cable tie mounts in an unheated warehouse or outdoor-rated enclosure?
The Ty-Rap self-riveting base is rated -40 to +185 degrees F, which covers unheated and uncooled spaces as well as warm equipment cabinets. Note that the base is Nylon/Polyamide 6.6, which is not UV stabilized per the data here, so for exposed outdoor runs use a mount specified for UV exposure.
4) Should I use a push mount base or a screw-mount cable tie mount in a control cabinet?
Push mount is the faster choice when you have sheet metal or a panel you can drill a clean #8 hole in, and nothing has to be reached from the back side. The self-riveting pin locks on insertion, so one hand and one motion sets it. Use a screw-mount or adhesive base instead when the material is too thick or too thin to let the pin's barb grab, when you cannot drill at all, or when you need to remove and relocate the mount repeatedly.
5) Does the Ty-Rap TC118 mounting base come with cable ties?
No. The TC118-TB and TC120 are mounting bases only. The tie slips under the base, so order your cable ties separately and size them to the bundle diameter you are dressing.
6) What part numbers do I order for Ty-Rap push mount cable tie bases?
Two part numbers cover the range: TC118-TB for the 4.4mm mounting hole and TC120 for the 4.9mm mounting hole. Both are Ty-Rap self-riveting bases for #8 holes, so the hole diameter is the only decision.
7) Will a nylon push mount base hold up to cleaning chemicals and oils in a manufacturing plant?
The base is molded from Nylon/Polyamide 6.6, the standard material for industrial cable tie mounts, and it offers good resistance to oils and most shop chemicals along with the mechanical strength to hold a loaded tie. For continuous exposure to strong acids, bases, or solvents, confirm compatibility with the specific chemical before standardizing on nylon.
