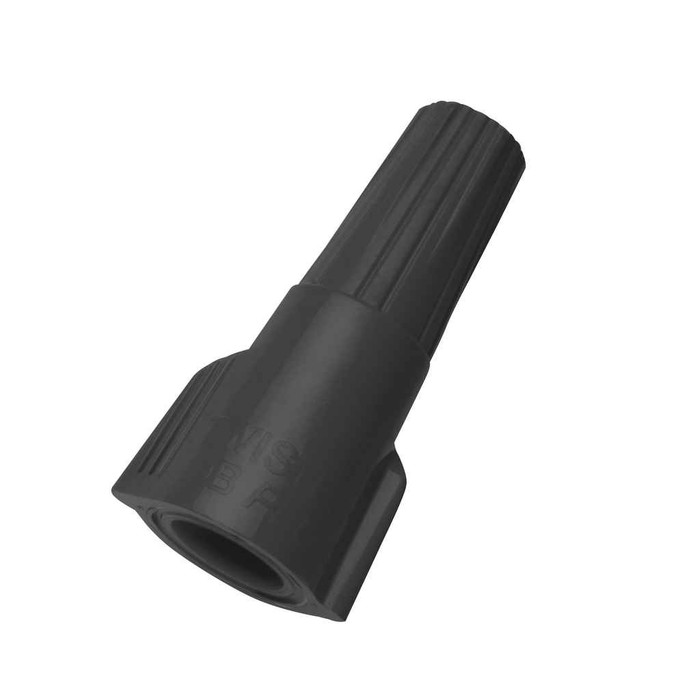

IDEAL Industries 30-1260 UnderGround Wire Connector, Model 60® Gray/Gray, Box of 100

Ideal Industries Underground Wire Connector Model 60 Gray Twist-On Sealed Wet Location UL Listed 100 Pack

(No reviews yet) Write a Review

Model: 30-1260
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$331.00
$313.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries Underground Wire Connector Model 60

Professional-Grade Sealed Twist-On Wire Connector for Wet Locations

The Ideal Industries Underground Wire Connector Model 60 delivers professional-grade sealed connection performance for wet location and direct burial applications. This UL Listed twist-on wire connector features 100% silicone-based sealant and deep skirt design for superior moisture resistance, providing the reliable performance and industry-leading quality that electrical professionals demand for underground and wet location installations.

Professional Features & Benefits

Moisture Protection Technology

  • 100% Silicone-Based Sealant - Protects against moisture infiltration and corrosion for long-lasting underground connections
  • Deep Skirt Design - Provides superior moisture resistance with enhanced sealing protection
  • UL 94V-2 Flame-Retardant Shell - Tough thermoplastic construction rated at 105°C (221°F) for extreme conditions
  • Pre-Filled Twist-On Design - Easy application with consistent sealant distribution for reliable connections

Safety & Code Compliance

  • UL Listed to 486G Standard - Certified for sealed twist-on wire connector applications in wet and damp locations
  • Direct Burial Approved - Meets code requirements for below-grade electrical installations
  • Wet Location Rated - Approved for above-grade damp and wet location applications

Technical Specifications

Model 60 Gray/Gray configuration with expanding live-action square-wire spring mechanism. Operating temperature rated to 105°C (221°F). UL Listed to 486G standard for sealed twist-on wire connectors. Flame-retardant UL 94V-2 rated thermoplastic shell construction. 100% silicone-based moisture sealant. Deep skirt moisture protection design. Box quantity of 100 connectors for professional contractor use.

Installation & Setup

  1. Strip wire conductors to appropriate length ensuring clean, straight cuts for optimal connection
  2. Insert stripped conductors into connector ensuring proper wire insertion depth
  3. Twist connector clockwise until tight connection is achieved and spring mechanism engages
  4. Verify secure connection by gently tugging on individual conductors
  5. Ensure sealant completely covers connection area for moisture protection
  6. Install in approved electrical enclosure or direct burial application per NEC requirements

Professional Applications

Ideal for:

  • Underground Electrical Systems - Direct burial applications for residential and commercial underground wiring
  • Wet Location Installations - Outdoor electrical connections exposed to moisture and weather conditions
  • Landscape Lighting - Low voltage and line voltage outdoor lighting system connections
  • Pool and Spa Electrical - Wet location connections for aquatic facility electrical systems

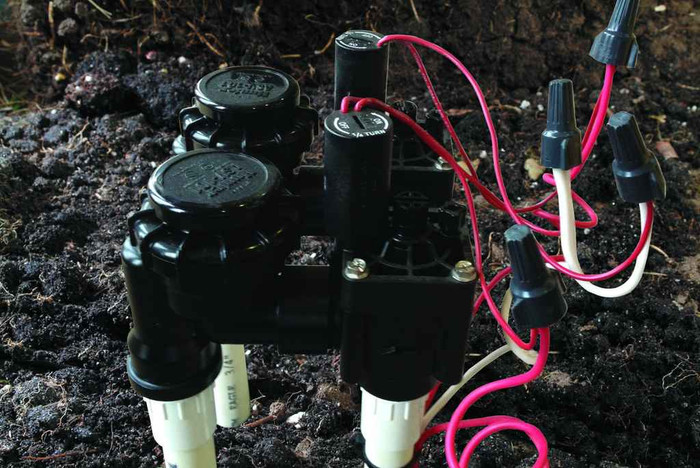

  • Irrigation Control Systems - Underground connections for sprinkler and irrigation electrical controls
  • Outdoor Receptacle Circuits - GFCI protected outdoor outlet and lighting circuit connections
  • Foundation and Basement Wiring - Below-grade electrical connections in damp foundation areas
  • Commercial Underground Distribution - Underground electrical distribution system splice connections

Sealed Connection Advantage

Ideal Industries Model 60 connectors feature advanced moisture protection technology with 100% silicone-based sealant and deep skirt design that creates a superior barrier against water infiltration. The expanding square-wire spring mechanism ensures fast, secure connections while the pre-filled sealant eliminates installation variables for consistent moisture protection performance.

Why Choose Ideal Industries Quality?

Ideal Industries demonstrates unwavering commitment to electrical safety with UL Listed certification to 486G standards, ensuring reliable performance in the most demanding wet location and direct burial applications. Our flame-retardant construction and temperature-rated materials provide the code compliance and long-term reliability that electrical professionals require for underground and moisture-exposed installations.

Manufacturer Resources

Spec Sheet

Product Specs

Product Group:
Wire Connectors & Terminals
Department:
Electrical
Product Subgroup:
Wire Connectors
Product Type:
Twist-On Wire Connector

Ideal Industries 30-1260 – Frequently Asked Questions

1) Can the Ideal Model 60 wire connector be direct buried underground?
Yes. The Ideal Underground Wire Connector Model 60 (part 30-1260) is built for direct burial and wet location work. It comes pre-filled with 100% silicone-based sealant and uses a deep skirt design to keep moisture out of the splice, and it is UL Listed to the 486G standard covering sealed twist-on connectors in damp and wet locations. Typical uses are landscape lighting, irrigation controls, pool and spa circuits, outdoor receptacle branch circuits, and underground distribution splices.
2) Do I need to add silicone or grease to the Model 60 connector before splicing?
No. The Model 60 ships pre-filled with its silicone sealant, so you strip, insert the conductors, and twist clockwise until the square-wire spring grabs. Tug each conductor to confirm it is held, and check that sealant has covered the connection area. Adding your own compound is not part of the procedure.
3) Is a standard tan or red wire nut acceptable for an outdoor buried splice instead of the Model 60?
A standard dry-location twist-on connector is the wrong part below grade or anywhere water can reach the splice. The Model 60 is the sealed version: silicone-filled, deep skirt, and UL Listed to 486G, the standard that covers sealed twist-on connectors for damp and wet locations. If the splice is inside a dry indoor box, a conventional connector is fine; if it is buried, in a handhole, or in a wet outdoor enclosure, use the sealed type.
4) How many connectors come in a box of the Ideal 30-1260?
Each box holds 100 connectors, which is why it is packaged for contractor use rather than a small repair pack. If you are wiring a landscape lighting run or an irrigation controller field where every splice below grade needs sealing, one box covers 100 splices.
5) What temperature is the Ideal Model 60 underground connector rated for?
105 degrees C (221 degrees F) operating temperature, with a flame-retardant thermoplastic shell rated UL 94V-2. That covers the heat you see in an outdoor junction box, a sun-exposed pull box, or a foundation splice.
6) Can I use these connectors for low voltage landscape lighting as well as line voltage?
Both. The Model 60 is called out for low voltage and line voltage outdoor lighting connections, plus irrigation control wiring, pool and spa circuits, GFCI-protected outdoor receptacle circuits, and underground distribution splices. Installation still has to follow NEC requirements for the enclosure or burial method you are using.
7) What color is the Ideal Model 60 and how do I identify it on the job?
Model 60 is the gray/gray configuration, ordered as Ideal part number 30-1260 in the 100-count box. The gray shell is how these sealed underground connectors get told apart from the dry-location wire nuts in the same pouch.
