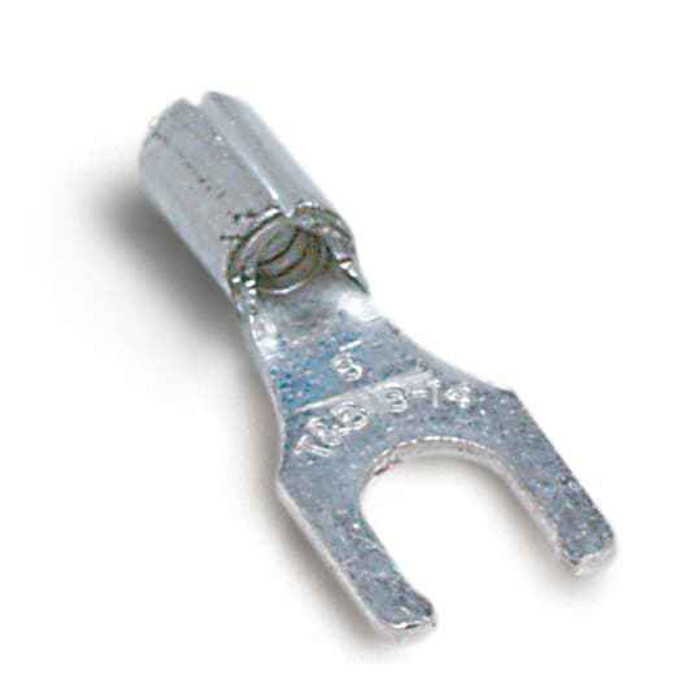

UNINS LKG FORK TERM 18-14 No10
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Locking Fork Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B225 – Frequently Asked Questions
1) What wire sizes does the Sta-Kon B225 fork terminal crimp?
The B225 locking fork terminal takes 18 to 14 AWG stranded copper wire. One barrel size covers that whole range, so a panel wired in a mix of 16 and 14 can use the same terminal and the same crimp die throughout.
2) What screw size does the Sta-Kon B225 fit?
It is a No. 10 stud terminal, so it slips over a #10 screw or stud. Being a fork (spade) tongue, it goes on without pulling the screw all the way out, which is why it gets used on terminal strips and device screws where a ring terminal would mean removing the hardware.
3) What is the difference between a locking fork terminal and a plain spade terminal?
The locking fork has formed tangs at the tips of the tongue that bite under the screw head, so vibration is less likely to walk the terminal out from under the screw. A plain spade will slide straight off once the screw loosens. The B225 is the locking style, in 18-14 AWG for a #10 stud.
4) Is the B225 insulated, and does that matter for a tight terminal block?
No insulation on it, just bare metal. That keeps the overall profile small for crowded terminal blocks and lets you heat shrink over the barrel if you want strain relief, but you get no built-in protection against a neighbouring terminal, so spacing is on you. If you need the sleeve built in, specify an insulated fork terminal instead.
5) What voltage is the Sta-Kon B225 terminal rated for?
600 V, which covers standard commercial and industrial control and power circuits up to 600 volt class. It is UL recognized under file E9809.
6) What material is the B225 fork terminal made from?
Copper, bare metallic finish. Copper barrel means it should be crimped to copper conductors, not aluminium, and it is what gives the low-resistance joint on control and lighting terminations.
7) Is the Sta-Kon B225 made in the USA for a Buy American job?
Country of origin on the B225 is the United States, which is what institutional and government procurement typically needs documented for domestic-sourcing requirements.
8) What part number do I order for the Sta-Kon 18-14 AWG #10 locking fork terminal?
Manufacturer part number B225 from Sta-Kon. That single number covers the 18-14 AWG, No. 10 stud, non-insulated locking fork configuration, with no finish or size options to specify.
