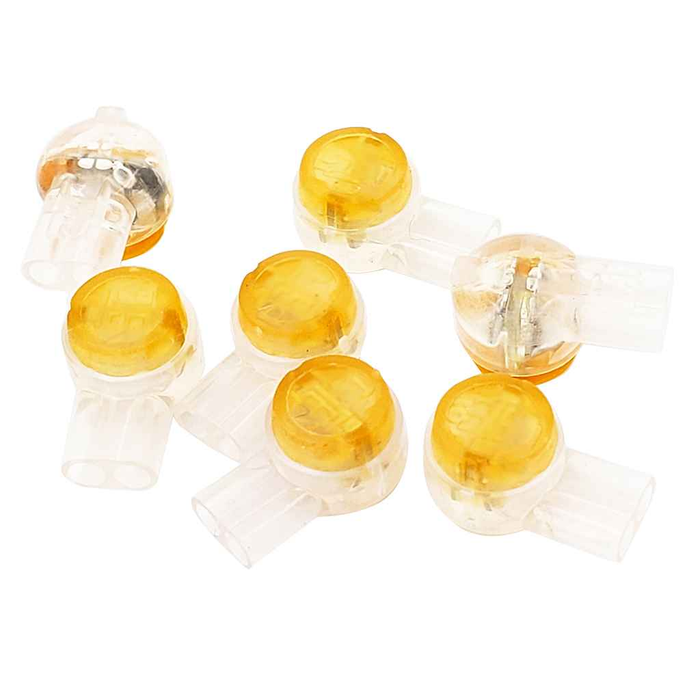

IDEAL Industries 86-955 UY2 Yellow IDC 2-Wire Butt Splice Jellybean Connectors

IDEAL Industries 86-955 UY2 Yellow IDC 2-Wire Butt Splice Jellybean Connectors

(No reviews yet) Write a Review

Model: 86-955
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.25
$0.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
UY2 Yellow IDC 2-Wire Butt Splice Jellybean Connectors

  • Features

    • For solid copper conductors of 26-19 AWG (0,4-0,9mm) having maximum insulated O.D. of .082 in. (2,08mm).
    • 2-Wire IDC connector with internal moisture sealant
    • Fully insert unstripped wires and crimp with the 33-719 or equivalent tool

Manufacturer Resources

Product Specs

Product Group:
Wallplates & Covers
Department:
Electrical
Product Subgroup:
Wallplates

Ideal Industries 86-955 – Frequently Asked Questions

1) Do I have to strip the wires before crimping a UY2 jellybean connector?
No stripping. The UY2 is an insulation displacement connector, so you push the unstripped conductors fully into the barrel and crimp, and the internal contact cuts through the insulation to make the connection. Fully seating the wire before you crimp is the part people get wrong.
2) Will a UY2 work on stranded wire or on 22 AWG stranded alarm cable?
It is specified for solid copper conductors only, 26 to 19 AWG. Stranded conductors can splay under the IDC blade instead of being pierced cleanly, so for stranded cable pick a connector rated for it rather than the UY2.
3) What tool crimps the IDEAL 86-955 UY2 connector?
IDEAL calls for the 33-719 crimp tool or an equivalent. A plain pair of pliers will not close the IDC contact evenly and is the usual cause of an intermittent splice. The crimper is a separate purchase, not packed with the connectors.
4) Can UY2 connectors be used in a damp location like an outdoor pedestal or a basement?
The UY2 is filled with an internal moisture sealant, so the splice is protected against moisture ingress once crimped. That is what makes it the common choice for telephone and alarm splices in pedestals, crawl spaces, and other damp spots rather than a dry-only twist connector.
5) How many wires does the yellow UY2 splice hold, and what do I use for three wires?
The UY2 is a 2-wire butt splice: one conductor in from each side, no more. For joining three conductors or for tapping a run without cutting it, you need a 3-wire jellybean such as the IDEAL UR2 (red) rather than the yellow UY2.
6) What is the difference between the yellow UY2 and the clear UY connector?
Both are 2-wire IDC butt splices. The yellow UY2 is the version IDEAL sells under part 86-955 with internal moisture sealant, rated 26-19 AWG solid copper up to .082 inch insulated diameter. Color is how techs tell the wire-count and family apart in a crowded splice case, so keep the yellow ones for straight two-wire butt joints.
