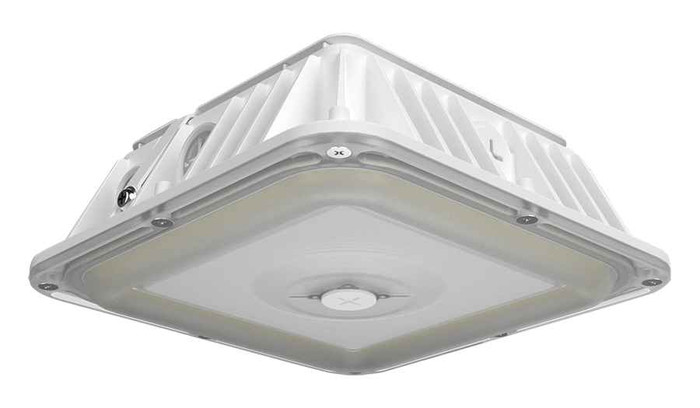

RAB 30W LED Vandalproof Fixture Field Adjustable Power 4475 Lumens Selectable CCT 120V-277V White with Photocell

RAB 30W LED Vandalproof Fixture Field Adjustable Power

Professional-Grade Security Lighting with Smart Controls

The RAB 30W LED Vandalproof Fixture delivers professional-grade security lighting performance for commercial and industrial applications. This rugged LED fixture features field adjustable power (30W/25W/20W) and selectable color temperature designed for electrical contractors, lighting professionals, and facility managers, providing the reliable performance and industry-leading quality that lighting professionals demand.

Professional Features & Benefits

Advanced Power Management

• Field Adjustable Power - Switch between 30W, 25W, or 20W for optimal energy efficiency and light output control
• High Lumen Output - Delivers 2,859 to 4,475 lumens depending on power setting for superior illumination
• Selectable Color Temperature - Choose 3000K, 4000K, or 5000K to match application requirements
• Integrated Photocell - Automatic dusk-to-dawn operation for energy savings and convenience

Energy Efficiency & Compliance

• DLC Premium Listed - Qualifies for maximum utility rebates with DLC ID S-UT93KY
• High Efficacy Performance - Achieves 138.9-152 lumens per watt for exceptional energy efficiency
• 50,000 Hour Life Rating - Reduces maintenance costs with long-lasting LED technology

Technical Specifications

Field adjustable 30W/25W/20W LED fixture delivering 2,859-4,475 lumens with selectable color temperature (3000K/4000K/5000K). Universal voltage 120V-277V operation with constant current driver. Compact 8"x8" vandalproof housing measuring 9.06" L x 9.06" W x 3.94" H, weighing 4.2 lbs. White powder coat finish with integrated photocell for automatic operation. DLC Premium listed for utility rebates.

Installation & Setup

1. Mount fixture securely to wall or ceiling surface using appropriate hardware for substrate
2. Connect electrical supply to universal voltage input (120V-277V) following local electrical codes
3. Select desired power setting (30W/25W/20W) using field adjustable switch
4. Configure color temperature selection (3000K/4000K/5000K) for application requirements
5. Test photocell operation for proper dusk-to-dawn functionality
6. Verify proper light distribution and adjust mounting angle if needed for optimal coverage

Professional Applications

Ideal for:

• Security Lighting - Building perimeters, parking areas, and entrance ways requiring vandal-resistant illumination
• Commercial Facilities - Retail centers, office buildings, and warehouses needing reliable exterior lighting
• Industrial Applications - Manufacturing facilities, loading docks, and service areas requiring durable lighting
• Institutional Buildings - Schools, hospitals, and government facilities with security lighting requirements
• Multi-Family Housing - Apartment complexes, condominiums, and residential communities
• Transit Applications - Bus stops, walkways, and transportation facilities requiring vandal-proof lighting
• Parking Structures - Covered parking areas and garages needing efficient, automatic lighting
• Utility Buildings - Substations, pump houses, and maintenance facilities requiring robust illumination

Vandalproof Design Advantage

RAB's vandalproof construction combines impact-resistant materials with tamper-proof design elements, ensuring reliable operation in high-risk environments. The field adjustable power feature allows contractors to optimize energy consumption while maintaining required illumination levels, and the integrated photocell eliminates the need for separate controls.

Why Choose RAB Quality?

RAB's commitment to DLC Premium listing ensures maximum utility rebate eligibility, while the field adjustable power and selectable color temperature provide installation flexibility that lighting professionals demand. The 50,000-hour LED life rating and constant current driver deliver the reliable, code-compliant performance that contractors trust for critical security lighting applications.
