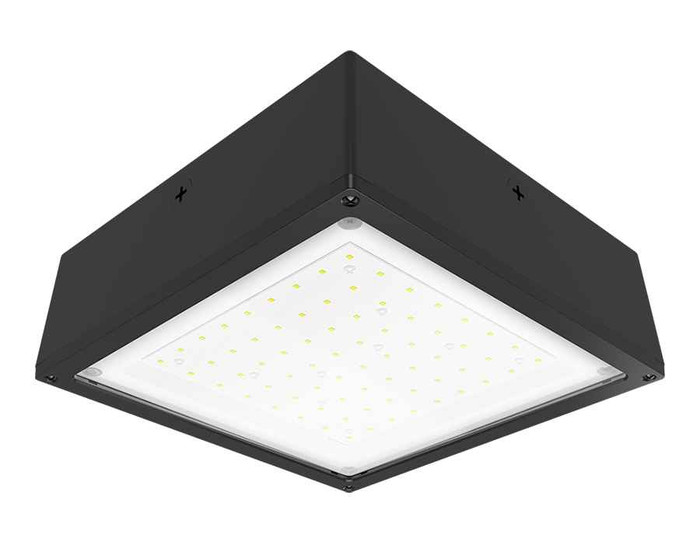

VANLED52F/MVS
VANLED52F/MVS - spec sheet
Features
- Ultra-high efficiency
- IP66 rated, keeps dust, bugs and water out
- Available with drop lens or flat lens
- Photo and motion sensor options available
- Vandal resistant and UV resistant lens
- Clean, contemporary, low-profile design
- Fits the footprint of older canopy lights
VANLED52F/MVS - spec sheet
Manufacturer Resources
Product Specs
- 208v:
- 0.28A
- 277v:
- 0.21A
- Air Tight:
- Housing certified Air Tight as per ASTM E283
- Buy American Act Compliance:
- RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
- Capacitance Load:
- 400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
- Color Stability:
- RAB LEDs exceed industry standards for chromatic stability
- Customizable Detection Area:
- 10, 50, 75 or 100%
- Cut Off Dimming Level:
- 10, 20, 30, 50%
- Cut Off Period:
- 0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
- Cut Off Power:
- Less than 1W
- Daylight Threshold:
- About .2-5 fc for disabled
- Detection Angle:
- About 30 to 150 degrees
- Dimming Driver:
- Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims as low as 10%.
- Efficacy:
- 126.2 lm/W
- Finish:
- Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
- Housing:
- Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
- Input Watts:
- 55.90W
- L70 Lifespan:
- 100,000 hours
- Lumens:
- 7,057
- Max Detection Range:
- 26 ft. diameter at 16 ft. mounting height
- Maximum Mounting Height:
- 16.4 feet
- Microwave Frequency:
- 5.8GHz +/- 75MHz
- Microwave Power:
- <0.2mW
- Operating Temperature:
- -20°C to +60°C (-4°F to +140°F)
- Relay:
- Zero-cross relay
- Remote Control:
- Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options.
- Sensor Principle:
- High Frequency
- Thd:
- 8.33% at 120V, 7.24% at 277V
- Time Delay:
- 5s, 30s, 1min, 5min, 10min, 20min, 30min
- Ul Listing:
- Suitable for Wet Locations. Covered Ceiling Mount Only.
- Watts:
- 52W
- Weight:
- 10.3 lbs
- Product Group:
- Lighting
- Product Subgroup:
- LED Fixtures
- Department:
- Electrical
