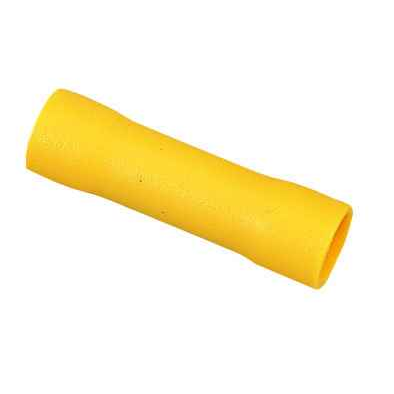

IDEAL Industries 84-9301 Vinyl Insulated Butt Splice, Yellow 12-10 AWG, Box of 1000

IDEAL Industries 84-9301 Vinyl Insulated Butt Splice, Yellow 12-10 AWG, Box of 1000

(No reviews yet) Write a Review

Model: 84-9301
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$488.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Vinyl Insulated Butt Splice, Yellow 12-10 AWG, Box of 500

  • Features

    • Tin-plated brass construction for corrosion resistance
    • Shouldered barrel insulation quickly positions terminal for proper crimping
    • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
    • Butted seam-construction prevents splitting under maximum pressure
    • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support


84-9301 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Product Group:
Wire Connectors & Terminals
Department:
Electrical
Product Subgroup:
Wire Connectors
Pack size (unit):
1000
Product Type:
Crimp Splice

Ideal Industries 84-9301 – Frequently Asked Questions

1) What wire size does the IDEAL 84-9301 yellow butt splice take?
The 84-9301 is the yellow-coded size, sized for 12-10 AWG conductors on both ends. Yellow is the standard color code for that range, so if the wire you are splicing is 14 AWG or smaller you need the blue (16-14) or red (22-18) splice instead, not this one.
2) Is the IDEAL 84-9301 butt splice okay in a damp or corrosive location like a rooftop unit?
The barrel is tin-plated brass, which is what gives it corrosion resistance, and the vinyl insulation covers the joint. That said, it is not a sealed or heat-shrink adhesive-lined splice, so for direct water exposure or submersion you want a heat-shrink insulated butt splice rather than vinyl.
3) Will the 84-9301 splice hold up to pull-out on stranded wire?
The barrel has internal serrations that bite into the strands, which is what resists pull-out and keeps electrical resistance down at the joint. The seam is butted rather than lapped so the barrel will not split open when you crimp it down hard. Proper crimp tool and die for a 12-10 AWG insulated terminal still matters more than anything else for retention.
4) Does the insulation on this IDEAL vinyl butt splice fit over thicker wire jackets like THHN or welding cable?
The 84-9301 has an expanded insulation entry, so it takes a range of insulation diameters within the 12-10 AWG class and gives the jacket extra support where it enters the barrel. Very heavy-jacketed cable such as welding lead is outside what a standard vinyl terminal entry is built for.
5) How do I know the splice is seated right before I crimp it?
The barrel insulation on the 84-9301 is shouldered, so the terminal drops into the crimp die and stops in the correct position instead of sliding around. Push the stripped conductor in until it bottoms in the barrel, crimp each side separately, then tug-test both legs.
6) What is the manufacturer part number for the yellow 12-10 AWG IDEAL butt splice?
It is IDEAL Industries part 84-9301, the vinyl insulated butt splice in the yellow 12-10 AWG size. Order by that number if you are standardizing a truck stock or a panel shop kit.
