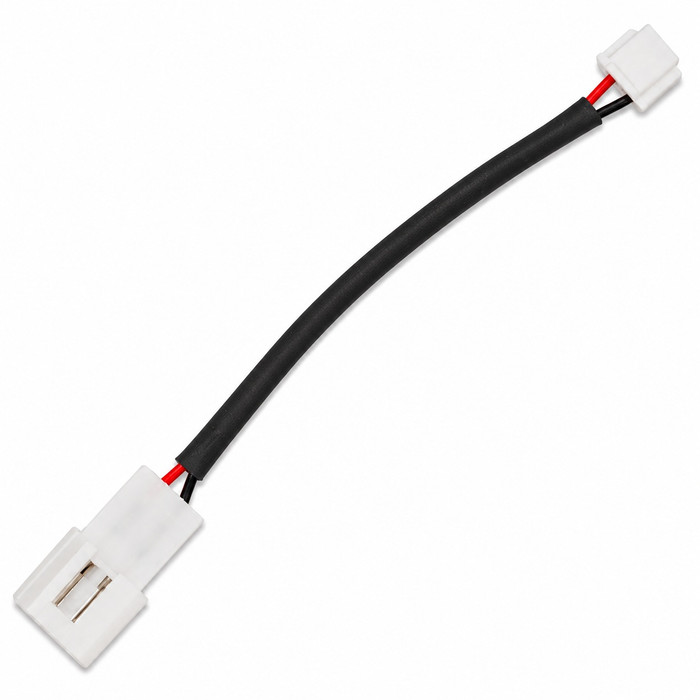

Von Duprin 114320-00 Quiet Electric Latch QEL Short Motor Cable Package for 22, 33A, 35A, 98 & 99 Series Exit Devices

Von Duprin 114320-00 Quiet Electric Latch QEL Short Motor Cable Package for 22, 33A, 35A, 98 & 99 Series Exit Devices

(No reviews yet) Write a Review

Model: 114320-00

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 114320-00 Quiet Electric Latch QEL Short Motor Cable Package for 22, 33A, 35A, 98 & 99 Series Exit Devices

OEM-Grade Internal Motor Cable Assembly for Motorized Latch Retraction Exit Devices

The Von Duprin 114320-00 Quiet Electric Latch (QEL) Short Motor Cable Package is an authentic, factory-standard replacement cable assembly engineered specifically for motorized latch retraction exit devices. Also listed as part numbers 114320 and 161699, this OEM-grade internal cable harness delivers dependable low-voltage power directly to the QEL motor assembly embedded inside the pushpad mechanism case. Designed for compatibility with Von Duprin 22, 33A, 35A, 98, and 99 Series exit devices equipped with QEL options, this component meets ANSI/BHMA Grade 1 standards and is suitable for use on fire-rated and panic hardware assemblies. Manufactured in the United States by Von Duprin (Allegion), it is backed by a Limited 2-Year Electro-Mechanical Manufacturer Warranty.

Professional Features & Benefits

  • Authentic OEM Replacement Component: Engineered by Von Duprin as the exact factory-standard replacement cable package for official QEL motorized assemblies, ensuring precise fit and performance without compromise.
  • Quiet Electric Latch (QEL) Series Compatibility: Formulated explicitly to pair with motorized latch retraction modules on Von Duprin 22, 33A/35A, and 98/99 Series architectural exit devices equipped with QEL options.
  • Plug-and-Play Integration: Features pre-terminated internal connectors with factory-molded multi-pin plugs on the wire leads, enabling rapid, error-free replacement without field splicing or hand-crimping.
  • Optimized for 3-Foot Devices: The compact cable length is tailored for routing through standard exit device touchbar chassis without creating structural congestion or wire pinching.
  • Fire-Rated Assembly Suitability: Suitable for use on fire-rated or panic hardware assemblies, supporting code-compliant installations in demanding commercial environments.
  • ANSI/BHMA Grade 1 Component: Classified as an ANSI/BHMA Grade 1 component accessory, meeting the highest commercial hardware performance standards.
  • Manufacturer Warranty: Backed by a Limited 2-Year Electro-Mechanical Manufacturer Warranty for added confidence and protection.
  • Built for Ultra-Quiet Environments: Ensures consistent electronic power delivery to the QEL motor, maintaining the low-noise operational signature expected in healthcare, institutional, and high-traffic facilities.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Product Subgroup: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Type: Cable
  • Product Function: Cable
  • Product Category: Exit Devices Parts
  • Included Components: Hex Dogging
  • Department: Door Hardware

Professional Applications

  • Healthcare Facilities and Hospitals
  • Commercial Office Buildings
  • Educational Institutions and Schools
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Retail and High-Traffic Commercial Establishments

Why Choose Von Duprin Quality?

Von Duprin exit device parts and accessories deliver professional-grade reliability as authentic OEM components manufactured to factory standards. The 114320-00 QEL Cable Package meets ANSI/BHMA Grade 1 classification, is suitable for fire-rated and panic hardware assemblies, and is backed by a Limited 2-Year Electro-Mechanical Manufacturer Warranty. Manufactured in the United States by Von Duprin (Allegion), this cable assembly is engineered for demanding commercial applications where dependable, ultra-quiet electronic latch retraction performance is essential.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Type:
Cable
Product Function:
Cable
Product Category:
Exit Devices Parts
Included Components:
Hex Dogging
Department:
Door Hardware

Von Duprin 114320-00 – Frequently Asked Questions

1) Will the Von Duprin 114320-00 QEL motor cable work on my 99 Series exit device?
Yes, if the device is a QEL (Quiet Electric Latch) unit. The 114320-00 short motor cable package is built for Von Duprin 22, 33A, 35A, 98 and 99 Series exit devices ordered with the QEL motorized latch retraction option. On a mechanical device with no QEL motor there is nothing for this harness to plug into, so confirm the device carries the QEL prefix before ordering.
2) Is the 114320-00 the short cable or the long one, and which device length does it suit?
It is the short version. Von Duprin builds the 114320-00 QEL cable length for 3-foot devices, so it routes through a standard touchbar chassis without excess wire bunching or pinching. On a wider opening that takes a 4-foot device, the short harness is the wrong part.
3) I found the part stamped 114320 or 161699 inside the pushpad. Is that the same cable?
Same assembly. The Von Duprin QEL short motor cable package is also listed under part numbers 114320 and 161699, so a device or parts breakdown showing either of those numbers is calling out this cable.
4) Do I have to splice or crimp wires to install a QEL motor cable in a Von Duprin exit device?
No field splicing. The cable comes pre-terminated with factory-molded multi-pin plugs on the leads, so it plugs straight into the QEL motor assembly inside the pushpad mechanism case. It is a swap, not a wiring job, though you are working inside the device rail so the touchbar has to come apart to reach it.
5) My QEL device stopped retracting the latch. Is the motor cable a likely fix, or is the whole device shot?
On a QEL device the cable is what carries low-voltage power to the motor assembly buried in the pushpad case, so a dead or intermittent retraction is worth tracing to the harness before condemning the motor or the device. The 114320-00 is the factory-standard replacement for that run on 22, 33A, 35A, 98 and 99 Series QEL devices, in the short length used on 3-foot devices.
6) Can I replace the QEL cable on a fire-rated exit device without voiding the fire label?
The 114320-00 is an OEM Von Duprin component suitable for use on fire-rated and panic hardware assemblies, and it is the factory-standard cable for the QEL devices it serves. Using the manufacturer's own part is what keeps a labeled assembly intact; a generic harness is what puts the label at risk.
7) Is the Von Duprin QEL motor cable a Grade 1 rated part for a spec job?
It carries an ANSI/BHMA Grade 1 component classification, the top commercial tier, and it is manufactured in the United States by Von Duprin (Allegion). For a hospital, school or government spec calling for Grade 1 exit hardware, an OEM Grade 1 component keeps the assembly consistent with what was specified.
8) What is QEL on a Von Duprin exit device and why does the cable matter for a quiet corridor?
QEL stands for Quiet Electric Latch, a motorized latch retraction option that pulls the latch back electrically instead of with a solenoid slam. The motor lives in the pushpad case and this cable feeds it, so a sound harness is what holds that low-noise signature in healthcare, institutional and other high-traffic buildings where a clacking solenoid device is not acceptable.
