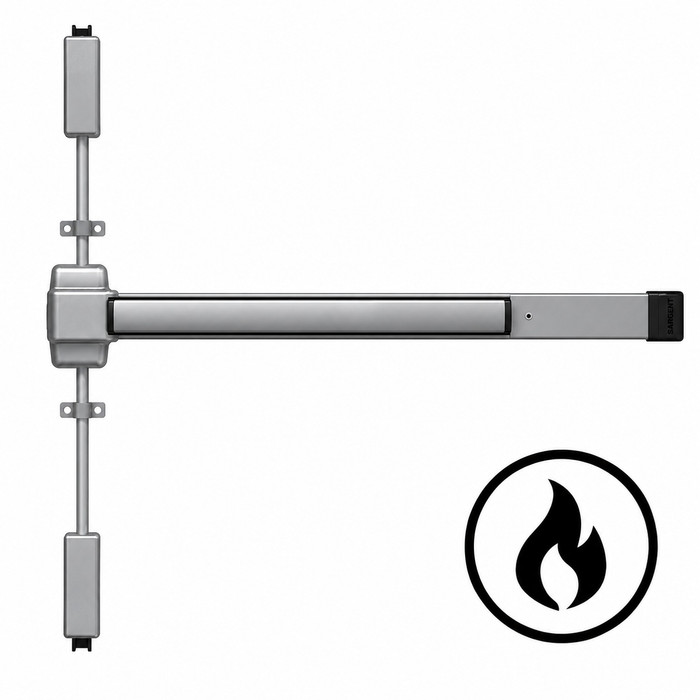

Von Duprin 2227F Series - Fire Rated 4 ft Wide Stile Pushpad Surface Vertical Rod Exit Device, Less Dogging

2227 Surface Vertical Rod

2227 Surface Mounted Vertical Rod Exit Device for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8" (92 mm). The device is non-handed.

SERIES

The 22 Series wide stile devices provide coverage for most standard applications. It is available in several rim and surface vertical configurations combined with electronic options, is ANSI A156.3, Grade 1 certified and has UL fire ratings. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

Features and Benefits

• Several surface-mounted vertical applications
• Several rim applications
• Several trim and electronic options
• Available in 3’ and 4’ lengths for single and double door applications
• Non-handed design

Specifications

Certifications and specifications are specific to each configuration. Refer to the 22 Series catalog for more details.

• ANSI/BHMA A156.3-2008 Grade 1 certified
• ANSI/UL 10C (fire rated only)
• ANSI/UL 305
• CAN/ULC-S104 (fire rated only)
• CAN/ULC-S132

Device Type

Many trims and configurations are available to provide the desired operation for any application. See the 22 Series catalog for a complete list and details.

Functions

• Classroom: the key locks and unlocks the lever or knob
• Dummy: a mechanical trim that is rigid for pull operation
• Exit only: no outside trim
• Passage: lever or knob that is always active
• Storeroom: the key retracts the latchbolt and the lever or knob is rigid

Popular Trims

• 210: knob trim, 3 functions come standard:
  • Classroom (K)
  • Storeroom (NL)
  • Dummy trim (DT)
• 230: lever or thumbpiece trim, 1 function comes standard:
  • Classroom (L or TP)

Levers and Finishes

The 22 Series offers a comprehensive list of levers and finishes. See the 22 Series catalog for more information.

OPTIONS

The 22 Series can be customized to meet any facility needs with several mechanical, electronic and finish options.

• RX: the push pad monitor allows the facility to monitor secure doors
• CON: common connectors link the device to a power supply or a power transfer
• AX: the accessible device is UL certified to meet a 5 lb. operating force requirements for the 2010 ADA (Chapters 404.2.7 and 309.4) and 2013 California Building Code (Chapter 11B-309.4)

Accessories

From mullions to power transfers and strikes, the 22 Series offers many accessories to meet evolving needs of any facility. Refer to the 22 Series catalog for a complete list.

Resources and Downloads

• Von Duprin 22 Series Catalog
• Von Duprin AX Data Sheet
• Von Duprin AX Quick Reference Card
• Von Duprin AX Sell Sheet
• Von Duprin Concealed Vertical Cable Data Sheet
• Von Duprin AX Data Sheet
• Von Duprin Auxiliary Catalog
• Von Duprin Full Line Hyperlinks Catalog
• Allegion Connect Data Sheet
• Allegion Architectural Guide Catalog
