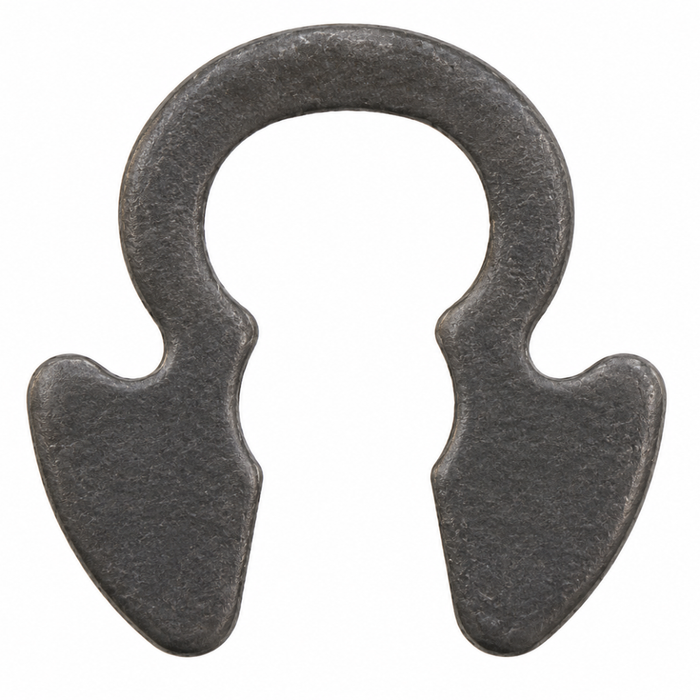

Von Duprin 090063 Latch Linkage Pin Retaining Ring for 33/35/47A/48A Series Exit Devices, Package of 10

Von Duprin 090063 Latch Linkage Pin Retaining Ring for 33/35/47A/48A Series Exit Devices, Package of 10

(No reviews yet) Write a Review

Model: 90063

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.00
$18.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 090063 Latch Linkage Pin Retaining Ring for 33/35/47A/48A Series Exit Devices, Package of 10

Commercial-Grade Replacement Part for Von Duprin Exit Device Latch Assemblies

The Von Duprin 090063 Latch Linkage Pin Retaining Ring is a genuine replacement part designed for use with Von Duprin 33/35/47A/48A Series exit devices. This package includes 10 retaining rings, providing a convenient supply of critical latch linkage components for maintenance, repair, or service of compatible exit device assemblies. Rated Grade 1 for commercial applications, these parts are suited for professional door hardware technicians and facility maintenance teams working with Von Duprin exit device systems.

Professional Features & Benefits

  • Genuine Von Duprin Replacement Part: Engineered specifically for Von Duprin 33/35/47A/48A Series exit devices, ensuring proper fit and reliable function within the latch linkage assembly.
  • Convenient Package Quantity: Sold in a package of 10 retaining rings, providing an efficient supply for service calls, preventive maintenance programs, or facility stockrooms.
  • Grade 1 Commercial Rating: Meets Grade 1 standards for commercial door hardware, confirming suitability for demanding commercial exit device applications.
  • Broad Series Compatibility: Compatible with the 33/35/98/99 Series exit device family, offering versatile serviceability across a wide range of Von Duprin installations.
  • Parts and Accessories Classification: Categorized as an Exit Devices Part within the Exit Devices and Trim product group, making it easy to identify for procurement and inventory management.
  • Commercial Application Ready: Designated for commercial use, supporting professional-grade maintenance and repair in high-traffic facilities.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 33/35/98/99 Series
  • Grade: Grade 1
  • Product Subgroup: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Type: Exit Devices Parts
  • Commercial/Residential: Commercial
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Package: Yes
  • Package Qnty: 10
  • Fire Rating: No
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device parts are manufactured to Grade 1 commercial standards, ensuring dependable performance in the most demanding door hardware applications. The 090063 Latch Linkage Pin Retaining Ring is a genuine Von Duprin component, providing the precise fit and durability required for proper exit device function. Engineered for commercial environments, these replacement parts support long-term reliability and ease of maintenance across the 33/35/98/99 Series exit device family.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
33/35/98/99 Series
Grade:
Grade 1
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Type:
Exit Devices Parts
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Package:
Yes
Package Qnty:
10
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 90063 – Frequently Asked Questions

1) Which Von Duprin exit devices does the 090063 retaining ring fit?
The Von Duprin 090063 latch linkage pin retaining ring is made for Von Duprin 33, 35, 47A and 48A Series exit devices, and it is carried under the 33/35/98/99 Series parts family. It holds the latch linkage pin in the latch assembly, so it is the right part when a pin has worked loose and the latch is no longer being driven properly by the pushpad.
2) My exit device pushpad depresses but the latch does not retract. Is the retaining ring the part I need?
That symptom usually points at the latch linkage. On a Von Duprin 33, 35, 47A or 48A device the 090063 ring is what keeps the latch linkage pin captive; if the ring is gone the pin walks out and the pad stops driving the latch. Pull the cover and check the pin at the latch end before ordering other linkage components.
3) Can an Accentra exit device latch part be used in place of the Von Duprin 090063 retaining ring?
No. The Von Duprin 090063 is a latch linkage pin retaining ring made for Von Duprin 33/35/47A/48A Series exit devices, and it fits that linkage geometry only. The Accentra 60-7010-0049-999 is a top latch replacement component for Accentra 7110/7120 exit devices, and the 60-7010-0050-999 is the corresponding top latch component for the 7110F. Those serve Accentra chassis, not a Von Duprin latch linkage, so keep each brand's service parts with its own device.
4) I need a part for a pair of doors with no center post - is the Von Duprin 090063 what I want?
No. The 090063 is an internal latch linkage pin retaining ring for Von Duprin 33/35/47A/48A Series devices and does nothing for the opening itself. For a double door application you want a mullion: the Falcon 4023 is a steel mullion for double door exit device applications, and the Falcon 525 aluminum mullion stabilizers are an exit device accessory that supports mullion installations.
5) How many retaining rings come in a Von Duprin 090063 package?
Ten rings per package. That quantity suits a service van or a stockroom keeping spares on hand rather than a single repair, since the ring is a small linkage part that is easy to lose during a latch rebuild.
6) Will the 090063 ring work on a Von Duprin 98 or 99 device?
The 090063 is specified for the 33, 35, 47A and 48A Series latch linkage and is filed within the 33/35/98/99 Series parts family. If you are servicing a 98 or 99 device, match the linkage pin and ring to the parts breakdown for that device before ordering, since the part is called out by series in the Von Duprin 98/99 Series catalog.
7) What is the difference between the Von Duprin 090063 retaining ring and the Falcon 23981160 deadlatch part?
They sit at different points in the device. The Von Duprin 090063 is a small retaining ring that holds the latch linkage pin in place on 33/35/47A/48A Series exit devices, supplied 10 to a package. The Falcon 23981160 is a 2-3/8 inch square corner deadlatch replacement part for Falcon T Series, meaning it is the latch body itself rather than a linkage fastener. If your latch bolt is worn or damaged you need a latch component; if the linkage pin is working loose, the retaining ring is the fix.
8) My concealed vertical rod device needs a rod, not a retaining ring - what is the right part?
The Von Duprin 090063 is only the latch linkage pin retaining ring, sold in packs of 10, so it will not replace a rod. For a concealed vertical rod assembly, the Falcon 610061 is a 24 Series Monarch concealed vertical top rod for F-25-C and F-25-CWDC exit devices, catalogued under the 245 Series. Confirm your device model before ordering, since rods are specific to the chassis and door height.
9) Is the Von Duprin 090063 a cylinder or keying part for a rim exit device?
No. The 090063 is a mechanical latch linkage pin retaining ring for Von Duprin 33/35/47A/48A Series devices, with no keying function. If you are working on the cylinder side of a rim device, the Arrow 16RCR-27 is an SFIC rim housing for 6 or 7-pin cores in the 24/25 Series. The two are ordered for entirely different repairs.
10) Is this a residential part or is it built for commercial traffic?
Commercial. The 090063 is classed as a Grade 1 commercial door hardware part, which is the highest ANSI/BHMA durability tier used on exit devices in schools, hospitals, offices and government buildings.
11) What other Von Duprin exit device parts should I stock alongside the 090063?
Think in terms of the wear items on the device you service. The 090063 covers the latch linkage pin on 33, 35, 47A and 48A devices. For other brands on the same site, ZenSupply carries parallel service parts such as the Falcon 610061 concealed vertical top rod for F-25-C and F-25-CWDC devices, the Falcon 23981160 T Series 2-3/8 inch square corner deadlatch part, and Accentra 7110/7120 top latch replacement components.
12) For a fire-rated opening, can I use the Von Duprin 090063 retaining ring?
The 090063 itself carries no fire rating designation; it is a Grade 1 commercial replacement part for Von Duprin 33/35/47A/48A Series latch linkages. The Accentra 60-7010-0050-999 top latch component for the 7110F likewise carries no fire rating. On a labeled opening, the rating belongs to the complete listed device assembly, so replace worn internals with the genuine part specified for your device model and keep the assembly as originally listed.
