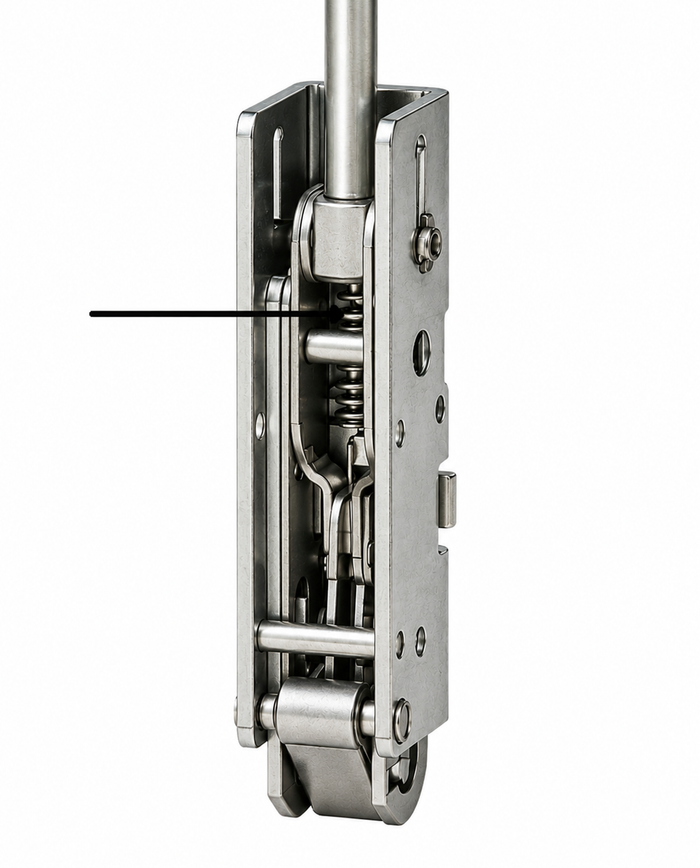

Von Duprin 33/3547A Bolt Return Spring, Package of 10

Von Duprin 090065 Bolt Return Spring for 22/33/98 Series Exit Devices, Package of 10

(No reviews yet) Write a Review

Model: 90065

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 090065 Bolt Return Spring for 22/33/98 Series Exit Devices, Package of 10

Commercial-Grade Replacement Parts for Exit Device Maintenance

The Von Duprin 090065 Bolt Return Spring is a genuine replacement component designed for use with Von Duprin 22, 33, and 98 Series exit devices. Sold in a convenient package of 10, this Grade 1 commercial-grade spring ensures reliable bolt return function, helping to maintain the proper operation of your exit device hardware. Sourced directly from Von Duprin, this replacement part is engineered to meet the performance standards required for demanding commercial door hardware applications.

Professional Features & Benefits

  • Genuine Replacement Component: Designed specifically for Von Duprin 22/33/98 Series exit devices, ensuring proper fit and reliable performance in compatible hardware.
  • Grade 1 Commercial Rating: Meets Grade 1 standards for commercial door hardware, delivering the durability and dependability required in high-traffic environments.
  • Convenient Package Quantity: Sold in a package of 10 springs, making this an efficient solution for facility maintenance teams, locksmiths, and door hardware professionals managing multiple devices.
  • Broad Series Compatibility: Compatible with the 22, 33, and 98 Series Von Duprin exit device lines, providing versatile serviceability across a wide range of installed hardware.
  • Maintains Proper Exit Device Function: Restores correct bolt return action to exit devices, supporting safe and code-compliant egress performance in commercial facilities.
  • Commercial Application Ready: Classified under Exit Devices Parts within the Exit Devices and Trim product group, confirming suitability for professional commercial door hardware service and repair.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 22/33/98 Series
  • Grade: Grade 1
  • Product Subgroup: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Type: Exit Devices Parts
  • Commercial/Residential: Commercial
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Package: Yes
  • Package Qnty: 10
  • Fire Rating: No
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin exit device replacement parts are manufactured to Grade 1 commercial standards, ensuring consistent performance and reliable fit within the 22/33/98 Series exit device product line. With this package of 10 bolt return springs, maintenance professionals can efficiently service multiple units and keep exit devices operating at peak performance. Engineered for demanding commercial applications where dependable, code-compliant egress hardware is essential.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
22/33/98 Series
Grade:
Grade 1
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Type:
Exit Devices Parts
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Package:
Yes
Package Qnty:
10
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 90065 – Frequently Asked Questions

1) Will the Von Duprin 090065 bolt return spring fit a 99 Series exit device?
The 090065 bolt return spring is specified for Von Duprin 22, 33, and 98 Series devices. Those are the lines it is called out for, so if you are servicing a 22, 33, or 98 you are on the right part. For anything outside those three series, match the spring to that device's own parts breakdown rather than assuming this one carries over.
2) Can I use the Von Duprin 090065 spring on a fire rated exit device?
The 090065 spring is not carried as a fire rated part. On a labeled fire door assembly, every component of the exit device has to be one the manufacturer lists for that labeled device, so for fire rated openings work from the fire device's own parts list. For non rated openings on 22, 33, and 98 Series hardware, this is the spring.
3) My exit device push bar is sluggish returning after it is pressed. Is a bolt return spring the fix?
A worn or broken bolt return spring is what causes the bolt to stop returning cleanly on a Von Duprin 22, 33, or 98 Series device, and the 090065 is the replacement for it. It restores the correct bolt return action so the device latches properly on each cycle. If the bar itself is binding rather than the bolt failing to return, look at the device chassis or the rods before ordering springs.
4) Is there a Von Duprin 090065 equivalent spring for a Falcon or Accentra exit device?
No cross brand spring substitution here. The 090065 is specified for Von Duprin 22, 33, and 98 Series devices only. Exit device internals are not interchangeable between manufacturers, so a Falcon or Accentra device needs its own parts. ZenSupply carries brand specific service parts for those lines, including the Falcon 610061 24 Series Monarch concealed vertical top rod and the Accentra 7110/7120 top latch component.
5) Will a Falcon exit device replacement part work in a Von Duprin 22, 33, or 98 Series device?
No. The Von Duprin 090065 bolt return spring is built for the 22/33/98 Series exit device lines, and Falcon service parts are cut to their own series. The Falcon 23981160 deadlatch replacement part is a T Series component, and the Falcon 610061 concealed vertical top rod is a 245 Series part made for the F-25-C and F-25-CWDC devices. Those are different chassis families, so match the spring to the Von Duprin device it is going into rather than substituting a Falcon internal part.
6) What is the equivalent bolt return spring for an Accentra exit device?
There is no cross-brand spring swap here. The Von Duprin 090065 is a genuine Von Duprin bolt return spring for the 22, 33, and 98 Series devices, sold ten to a package. On the Accentra side, latch service is handled at the assembly level: the Accentra 60-7010-0049-999 is a top latch replacement component for the 7110 and 7120 devices, and the 60-7010-0050-999 is the top latch replacement component for the 7110F. If the device on the door is Accentra, order the latch component for that model; if it is a 22, 33, or 98, the 090065 is the spring.
7) How many bolt return springs come in a Von Duprin 090065 order?
Ten springs per package. That quantity is what makes it worth stocking on the shelf rather than ordering one at a time: a maintenance shop running a campus or a portfolio of buildings on 22, 33, or 98 Series devices can service ten openings off one order and keep the rest in the truck for the next call.
8) Is the Von Duprin 090065 bolt return spring rated for high traffic commercial doors?
Grade 1, and catalogued as commercial hardware. Grade 1 is the heaviest ANSI/BHMA duty tier used on exit devices, which is what you want behind a school corridor, a hospital stairwell, or a retail exit that cycles all day. It is a commercial part, not a light duty residential spring.
9) Is the Von Duprin 090065 a genuine Von Duprin part or an aftermarket spring?
Genuine Von Duprin, sourced from the manufacturer as a replacement component for the 22, 33, and 98 Series lines. For distributors and locksmiths who need the OEM part number on the invoice, the designation is Von Duprin 090065, sold ten to a package.
10) I need a replacement latch, not a spring, for my exit device. What else is out there?
The 090065 is only the bolt return spring, so it will not help if the latch itself is damaged. For latch level replacements on other brands, ZenSupply carries the Accentra 7110/7120 Exit Device Top Latch Replacement Component and the 7110F version, plus the Falcon T Series 2-3/8 inch square corner deadlatch replacement part. Those are brand specific, so match the replacement to the device already in the door.
11) My exit device problem is on a pair of doors with no mullion, not inside the device. What should I order instead of the 090065 spring?
The 090065 is an internal bolt return spring; it does nothing for the opening between two door leaves. For a double door application, the Falcon 4023 is a steel mullion for double door exit device applications, and the Falcon 525 aluminum mullion stabilizers are exit device accessories for that same double door setup. Order the 090065 when the bolt on a 22, 33, or 98 Series device is not returning; order the mullion or stabilizers when the issue is how the pair of doors closes against each other.
12) Is a rim cylinder housing the part I need if the exit device will not latch, or is it the bolt return spring?
Those solve two different complaints. The Von Duprin 090065 bolt return spring restores the bolt return action inside a 22, 33, or 98 Series exit device, so it is the part when the latch is sluggish or fails to return after the pushbar is released. The Arrow 16RCR-27 is a 6/7-pin SFIC rim housing in the 24/25 Series, which is the keyed cylinder side of the device and governs key access, not latch travel. If the key works but the bolt sticks, the spring is the fix.
13) The opening is a fire rated door. Does the 090065 carry a fire rating?
The Von Duprin 090065 bolt return spring is a Grade 1 commercial part and does not carry a fire rating of its own. Neither do the comparable Accentra exit device top latch replacement components, 60-7010-0049-999 and 60-7010-0050-999. Fire rating on an opening is established by the listed exit device and door assembly, so specify the device to the label and use the 090065 as the Grade 1 service spring for a 22, 33, or 98 Series unit.
