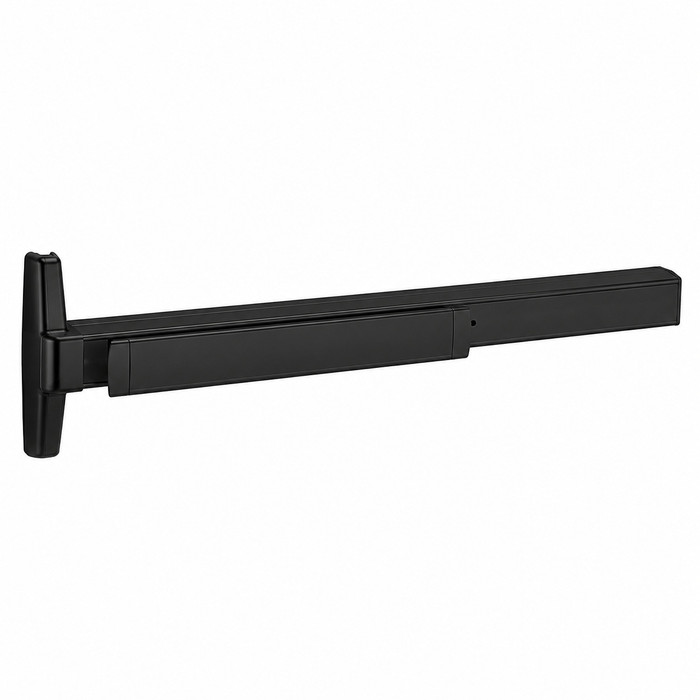

Von Duprin Concealed Vertical Cable Exit Device 3549A

Von Duprin 3549A Grade 1 Concealed Vertical Cable Exit Device with Narrow Stile Pushpad, 36"

(No reviews yet) Write a Review

Model: 3549AEO-F 3 315
Selected finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,033.00
$3,233.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 3549A Grade 1 Concealed Vertical Cable Exit Device with Narrow Stile Pushpad, 36"

Commercial-Grade Concealed Vertical Cable Exit Solution

The Von Duprin 3549A is a Grade 1 concealed vertical cable exit device engineered for high-performance and durability in demanding commercial applications. Designed as an exit-only model, it features a narrow stile pushpad in a 36-inch length and is finished in black anodized aluminum for a modern, professional appearance. The 3549A is non-handed for flexible installation and includes hex key dogging for convenient hold-open functionality. Please note that trim is not included with this device.

Professional Features & Benefits

  • Grade 1 Performance: Rated to BHMA Grade 1 standards, delivering the highest level of durability and reliability required for high-traffic commercial door applications.
  • Concealed Vertical Cable Design: Concealed vertical cable mechanism provides a clean, streamlined appearance while ensuring dependable top and bottom latch retraction for secure egress.
  • Narrow Stile Pushpad: Designed specifically for narrow stile doors, the pushpad configuration accommodates installations where stile width is limited without compromising performance.
  • 36" Door Width: Sized at 36 inches to fit standard commercial door widths, making it suitable for a wide range of commercial and institutional applications.
  • Black Anodized Aluminum Finish: The sleek black anodized aluminum finish offers a modern, professional aesthetic while providing corrosion resistance for long-term durability.
  • Hex Key Dogging: Integrated hex key dogging allows the device to be held in the retracted position for convenient passage during business hours, eliminating the need for separate dogging hardware.
  • Non-Handed Installation: Non-handed design simplifies ordering and installation, allowing the device to be used on doors of any handing without modification.
  • Exit-Only Configuration: Configured as an exit-only device, providing controlled egress while maintaining security on the entry side. Trim is not included.

Technical Specifications

  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin concealed vertical cable exit devices are built to Grade 1 commercial standards, ensuring the highest level of performance and longevity in high-traffic environments. The 3549A features black anodized aluminum construction with a non-handed design and integrated hex key dogging, delivering both installation flexibility and day-to-day operational convenience. Engineered for demanding commercial applications where dependable egress performance and professional appearance are essential.

Product Specs

Department:
Door Hardware

Von Duprin 3549AEO-F 3 315 – Frequently Asked Questions

1) Will the Von Duprin 3549A work on a narrow stile aluminum door?
Yes. The 3549A uses a narrow stile pushpad, built for doors where stile width is limited, and the black anodized aluminum finish matches typical aluminum storefront and entrance doors. It's sized for a 36 inch door.
2) Do I need to order the 3549A exit device left or right handed?
No handing to specify. The 3549A is non-handed, so the same device goes on a left or right hand door without modification. That also means one part number covers both leaves of a pair.
3) What's the difference between the Exit Only and Night Latch versions of the 3549A?
Two configurations are offered. Exit Only gives egress from the inside with no outside operation at all. Night Latch adds outside key retraction of the latch, so an authorized person can key in from the exterior. Both come in the 315/335/711 black anodized finish. Trim is not included with the device either way, so outside trim or a cylinder has to be ordered separately.
4) Does the 3549A come with outside trim or a pull?
No. Trim is not included with the 3549A. If you need exterior access you'll order the trim, and for the night latch configuration a mortise cylinder, separately. The Exit Only version needs nothing on the outside beyond a pull if you want one.
5) Should I use a concealed vertical cable device or a surface vertical rod on an aluminum entrance?
Concealed vertical cable, like the 3549A, runs the latch operation inside the door stiles, so nothing hangs on the face of the door and there's no rod to get kicked or bent. It's the choice when appearance matters and the door is prepped for concealed hardware. Surface vertical rod is the option when you're retrofitting a door that has no concealed prep, since it mounts to the door face. Both latch top and bottom, which is what lets a pair of doors work without a center mullion.
6) Can I hold the 3549A pushpad down during business hours?
Yes, hex key dogging is built in. Insert the hex key, depress the pad, and the latches stay retracted so the door pushes open freely. No separate dogging kit to buy. Note that hex key dogging is for non-fire-rated openings; fire doors require electric latch retraction instead of mechanical dogging.
7) Is the Von Duprin 3549A rated for high traffic openings like a school or hospital entrance?
It's rated to BHMA Grade 1, the highest durability class for exit devices, which is what institutional and high traffic commercial openings are normally specified to. It's used in offices, schools, healthcare, retail, industrial buildings, multi-tenant residential and government facilities.
8) What finish does the 3549A come in, and will it match other black storefront hardware?
One finish: 315/335/711 black anodized. That's the standard black anodized designation used across aluminum entrance hardware, so it lines up with black anodized frames, pulls and closers on the same elevation. The anodizing also gives corrosion resistance on exterior openings.
