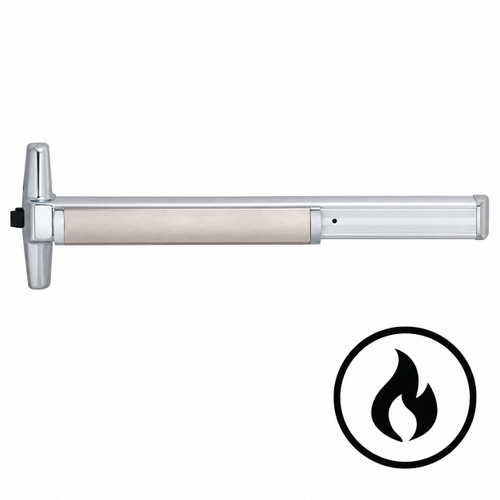

Von Duprin 35A-F Series - Fire Rated 3 ft Smooth Case Narrow Stile Rim Exit Device, Less Dogging
Model: VON-35AF-3ft
Von Duprin
Von Duprin 33A Series - 3 ft Grooved Case Narrow Stile Rim Exit Device
Model: VON-33A-3ft
Von Duprin
Von Duprin 35A-F Series - Fire Rated 4 ft Smooth Case Narrow Stile Rim Exit Device, Less Dogging
Model: VON-35F-4ft
Von Duprin
Von Duprin 98 Series - 3 ft Smooth Case Wide Stile Rim Exit Device
Model: VON-98-3FT
Von Duprin

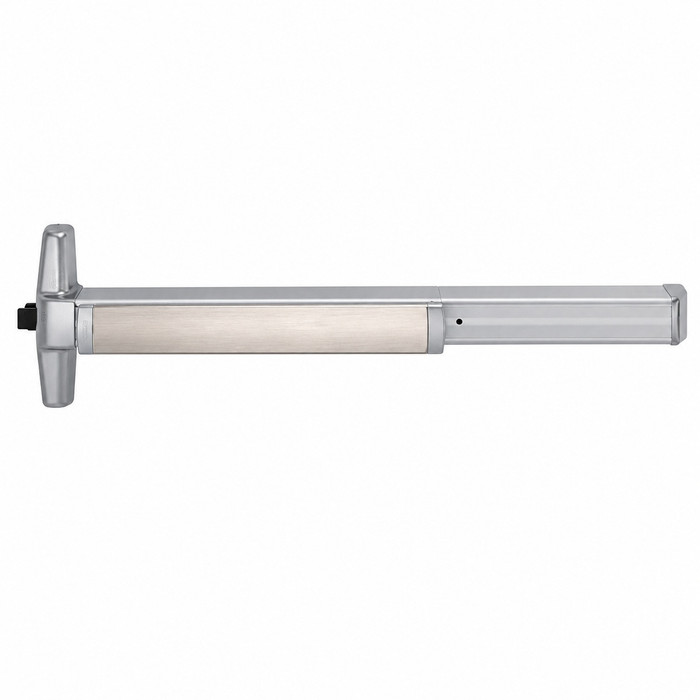

Von Duprin 35A Series - 3 ft Smooth Case Narrow Stile Rim Exit Device
Von Duprin 33A and Von Duprin 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used.
33A/35A fits door stiles as narrow as 1 3/4” (44mm). Newly designed device has a one piece center case cover.
Von Duprin 33A/35A Series
The 33/35A Series devices are narrow stile heavy-duty push pads. Architectural design elements differ slightly between the 33A and the 35A.
The 35A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case. The 33/35A Series have all been certified to the highest industry standards and are used in schools, hospitals and government buildings.
Features and Benefits
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
Specifications
Specifications and certifications are specific to each configuration. See the 33A/35A Series catalogs for more information.
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132
Device Type
The 33A/35A Series offers a solution for all/most single, double and double egress doors. All devices with Fire rated hardware can be identified with "-F" in their name and SKU.
- No suffix: rim devices
- 27: surface-mounted vertical rod
- 47: concealed vertical rod (5/8” bottom bolt)
- 48: concealed vertical rod (1-1/2” bottom bolt)
- 49: concealed vertical cable
- 50WDC: Wood Door Concealed Vertical Cable
FUNCTIONS & TRIM
A variety of functions and trim options are available, but only the standard options are listed below. Refer to the 33A/35A Series catalog for more information.
Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt, the lever or knob is rigid
33A/35A Series popular trims
- 360: lever or thumbpiece trim, 3 standard functions:
- Classroom (L, T)
- Passage (L-BE, T-BE)
- Dummy (L-DT)
- 386: pull trim, 2 standard functions:
- Storeroom (NL)
- Dummy (DT)
- 388: optional pull trim, 1 standard function:
- Storeroom (NL-OP)
Levers and Finishes
The 33A/35A Series offers many choices for levers and finishes. Refer to the 33A/35A Series catalog for more information.
OPTIONS
With the 33A/35A Series, devices can be retrofitted to keep up with evolving technology with various retrofit kits. Refer to the 33A/35A Series catalog for more information.
Retrofitting an existing device
- CDSI/HDSI: security dogging indicators provide at-a-glance verification of the panic device status
- QEL: electronic latch retraction with limited operational noise
- Electronic switches: can be used as part of an access control system or in a standalone application
- Request to exit (RX)
- Latchbolt monitoring (LX)
Upgrading to a new device
- AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
- CX: CHEXIT meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
Accessories
From mullions to powers transfers and strikes, the 33A/35A Series offers a range of accessories to meet the evolving needs of any facility. Refer to the 33A/35A Series catalog for more information.
Also knows as
von duprin 35a, von duprin 35a series, 35a von duprin, von duprin 35 series, von duprin 35, von duprin 35a eo, von duprin 35a eo, von duprin 35a panic, von duprin 35a exit device
Resources and Downloads
- 33A/35A Series Exit Device Catalog
- Von Duprin 33/35 Wood Door Templates
- Von Duprin 33/35 Wood Door Trims/Controls/Strikes Templates
- Von Duprin 33/35 Hollow Metal Door Templates
- Von Duprin 33/35 Hollow Metal Door Trims/Controls/Strikes Templates
- Von Duprin Concealed Vertical Cable Data Sheet
- Von Duprin AX Data Sheet
- Von Duprin Auxiliary Catalog
- Von Duprin Full Line Hyperlinks Catalog
- Allegion Architectural Guide Catalog
Manufacturer Resources
Product Specs
- Product Group:
- Exit Devices and Trim
- Series:
- 33 & 35 Series
- Grade:
- Grade 1
- Fasteners:
- Includes 1-3/4" and 2-1/4" wood/metal door fasteners, SNB included
- Product Subgroup:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Latch Throw:
- 3/4"
- Product Type:
- Exit Devices - Rim
- Commercial/Residential:
- Commercial
- Device Centerline from Finished Floor:
- 39-13/16"
- Stile Type:
- Narrow Stile
- Wood Door Compatible:
- No
- MAP Policy:
- Yes
- Tags:
- von duprin 35a, von duprin 35a series, 35a von duprin, von duprin 35 series, von duprin 35, von duprin 35a eo, von duprin 35a eo, von duprin 35a panic, von duprin 35a exit device
- Product Model:
- 33A/35A-3'
- Collection:
- 35 series
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/4"
- Product Size:
- 36"
- Dogging Configuration:
- Hex Key Dogging
- Product Dimension:
- 8-3/16" x 1-9/16" x 2-13/32"
- Fire Rating:
- No
- Product Projection:
- 3-13/16"
- Product Style:
- Push Pads
