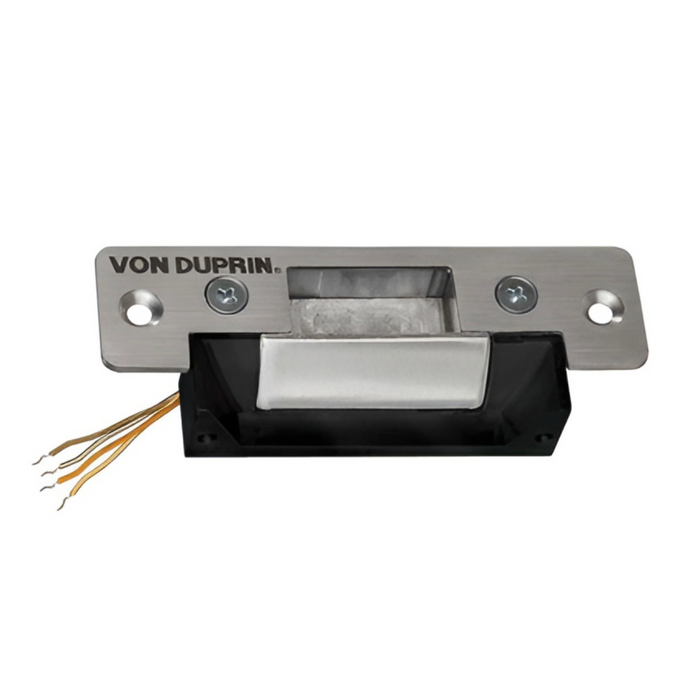

Von Duprin 4212 US32D Electric Strike

Von Duprin 4200 Series The Von Duprin 4200 Series electric stikes are designed to offer versatility in two commercial-duty electric door strike models. They are a great choice for applications where interior traffic control is the primary function. And with their solid construction and heavy-duty stainless steel faceplate, they meet ANSI/BHMA Grade 1 for endurance and dynamic strength. Designed for compatibility with a wide range of cylindrical devices, they are able to address a broad range of needs. You'll find 4200 Series strikes work with all Schlage and Falcon cylindrical locks as well as those of many other manufacturers. These reliable strikes are easy to order, configure and install. Field selectable options include changing fail safe and fail secure modes without disassembly. They also feature a 12/24 dual-voltage solenoid for field wiring of either input voltage. Factory orderable options include an entry buzzer and rectifier kits to provide even greater flexibility and available parts include square or round cornered ANSI faceplates. Additional factory orderable options provide even greater flexibility. The 4200 Series can be ordered with or without latchbolt monitor. Square face plate is offered standard to accommodate hollow metal frames, and rounded corner faceplates are available as an option for aluminum frames. An entry buzzer and rectifier kits are also available options. The 4200 was developed with Von Duprin’s high standards and engineering expertise. Its heavy duty stainless steel construction is designed to withstand abuse. FEATURES AND BENEFITS Application

• Designed for cylindrical lock and deadlatch applications
• Suitable for interior doors with hollow metal or aluminum frames
• Optional latchbolt monitoring

Versatility

• 4 in-field configurations
• Shallow 1-3/8” backbox depth
• Field-selectable 12/24 VDC
• Non-handed, internal solenoid design
• Low current draw for PoE installations
• Field-selectable power failure mode without disassembly

Strength and durability

• Heavy-duty stainless steel faceplate
• 1000 lbs. static strength
• 70 ft-lbs. dynamic strength
• 500,000 cycles endurance tested
• 5-year limited warranty

CERTIFICATIONS

• Meets ANSI BHMA A156.31 Grade 1 endurance and dynamic strength
• Meets ANSI/BHMA 156.31 Grade 2 static strength

Specifications Opening

• Single doors with hollow metal or aluminum frames
• Cylindrical lock and deadlatch applications
• Throw:
  • 4211: 1/2" to 3/4"
  • 4212: 1/2" to 5/8"



Power

• Field-selectable voltage and power fail mode
• 12 VDC continuous duty at 0.2 Amp
• 24 VDC continuous duty at 0.1 Amp
• Latchbolt monitor rating (4212 only): 30 VDC at 0.2 Amp

Dimensions

• Standard 4 7/8" faceplate
• 1-3/8" backbox depth
• See the 4200 Series data sheet for dimension and wiring

Available finishes

• BHMA 630 / US32D stainless steel (faceplate), satin finish

Options

• 12 VAC to 12 VDC rectifier
• 24 VAC to 24 VDC rectifier
• Entry buzzer
• Round-cornered faceplate

Lockset compatibility The 4200 Series is compatible with all Schlage and Falcon cylindrical locks as well as cylindrical and deadlatch locks of many other manufacturers. The 4211 is compatible with locksets with 5⁄8" (15 mm) throw latchbolts, or up to 3⁄4" (19mm) throw latchbolts with a 1⁄8" door gap. The 4212 is compatible with locksets with 1⁄2" (12.7mm) throw latchbolts, or up to 5⁄8" (15 mm) throw latchbolts with a 1⁄8" door gap. COMPATIBILITY The 4200 Series is compatible with all Schlage and Falcon cylindrical locks, as well as cylindrical and deadlatch locks of many other manufacturers. WARRANTY Subject to the terms and conditions of this warranty, Schlage Lock Company LLC extends a warranty against defects in material and workmanship to the original user (defined below) of the products manufactured by Schlage (the “Products”) beginning from the date of purchase by the original user. Please see below for specific warranty periods and details:

• Warranty period for Mechanical Components: 60 months from date of placing in operation or 66 months from the date of shipment from Company’s factory.
• Warranty period for Electronic Components: 12 months from date of placing in operation or 18 months from the date of shipment from Company’s factory.
