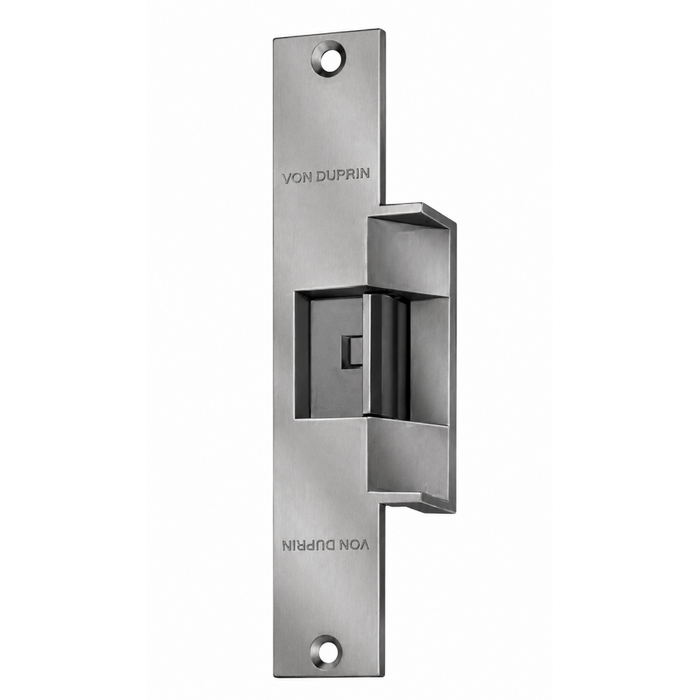

Von Duprin 6215 Electric Strike for Mortise or Cylindrical Locks

6200 SeriesVon Duprin electric strikes are known for their reliability, durability and security. The 6200 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is fully UL 1034 and UL 10C listed. 6200 Series electric door strikes are designed for use with a variety of Mortise or cylindrical locksets. Electrified strikes allow remote release of a locked door by activating a movable lip (keeper) using an entry/exit button or credential reader and can be a cost effective means for managing access. 6200 Series strikes come standard as 24 VDC in fail secure mode. 12 VDC and AC operation can be selected, as can fail safe mode and other options that enable you to configure these strikes to fit your exact needs.Use 6200 Series electric strikes for retrofit applications or new construction. To assure the proper selection of an electric strike on new applications, lockset compatibility charts are shown above. When using a lockset not listed or when retrofitting a strike to an existing application, please contact Von Duprin Technical Support or ZenSupply for application assistance. These heavy-duty strikes are UL 10C fire rated and factory configurable to fail safe or fail secure applications. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability. Available designs are suitable for a wide range of new construction applications and may also retrofit a number of competitive and older model Von Duprin electric door strikes.Features and BenefitsApplication

• 17 model configurations available for cylindrical and Mortise applications
• For interior or exterior doors with hollow metal, aluminum, or wood frame models

Simplicity

• Factory orderable to exact specification
• 6 popular finishes available to suite with existing hardware
• Two-piece plug connectors are included for ease of installation and removal during strike servicing

Strength and durability

• Heavy-duty stainless steel construction
• 70 ft-lbs. dynamic strength
• 1,000,000 cycles endurance tested
• 5-year limited warranty

CERTIFICATIONS

• Certified ANSI BHMA A156.31 Grade 1: 6211, 6211AL, 6211WF
• UL 294 listed
• UL 1034 listed for burglary-resistant electric door strikes
• Fire rated UL 10C to 3 hours on single doors; 90 minutes on pair doors with inactive leaf

SpecificationsOpening

• Single door and pair door options with wood, hollow metal or aluminum frames (see data sheet)
• Lockset:
  • Cylindrical or mortise
  • Mortise only (model 6210)
  • Mortise with deadbolt up to 1" (model 6216)


• Throw: 3/4"

Power

• 24 VDC standard with 12, 16 and 28 VDC optional
• 12 or 24 VDC rectifier kit conversion to VAC optional
• 12 VDC continuous duty at 0.6 Amp
• 16 VDC continuous duty at 0.4 Amp
• 24 VDC continuous duty at 0.33 Amp
• 28 VDC continuous duty at 0.25 Amp

Dimensions See 6200 Series data sheet for dimensions and wiring diagrams.Available finishes

• US3/BHMA 605 polished brass, clear coated
• US4/BHMA 606 satin brass, clear coated
• US10/BHMA 612 satin bronze, clear coated
• US10B/BHMA 613 dark bronze, oil rubbed
• US32/BHMA 629 bright stainless steel
• US32D/BHMA 630 satin stainless steel

Options
12 VAC to 12 VDC rectifier
24 VAC to 24 VDC rectifier
Entry buzzer
Dual monitor switches
Allegion Connect wire extensionCOMPATIBILITY The 6200 Series models are compatible with Schlage, Von Duprin and Falcon cylindrical and Mortise Locksets, as well as many other manufacturers' products. Refer to the 6200 Series data sheet for detailed use compatibility listing. WARRANTY Subject to the terms and conditions of this warranty, Schlage Lock Company LLC extends a warranty against defects in material and workmanship to the original user (defined below) of the products manufactured by Schlage (the “Products”) beginning from the date of purchase by the original user. Please see below for specific warranty periods and details:

• Warranty period for Mechanical Components: 60 months from date of placing in operation or 66 months from the date of shipment from Company’s factory.
• Warranty period for Electronic Components: 12 months from date of placing in operation or 18 months from the date of shipment from Company’s factory.
