Von Duprin 88-4FT 88 Series 4 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,180.00
$1,580.72

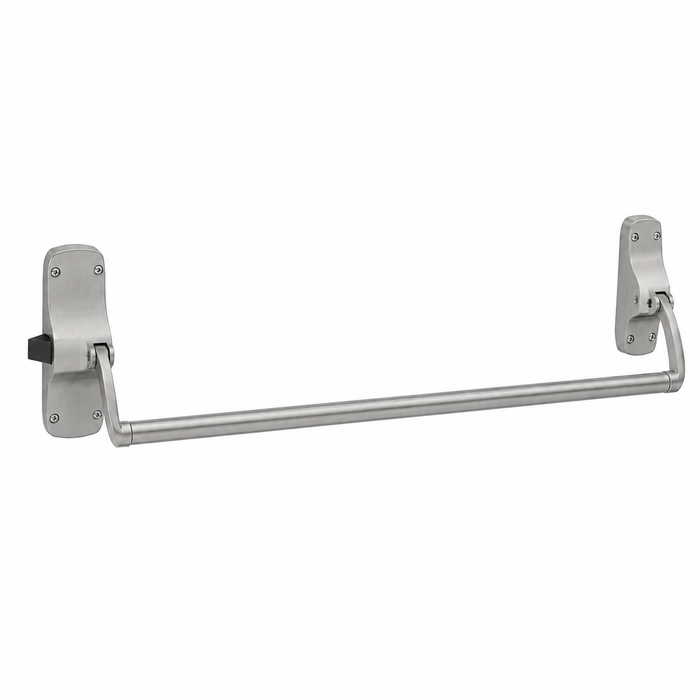

Von Duprin 88 Series 4 ft Wide Stile Crossbar Rim Exit Device, Grade 1, Non-Handed, Satin Chrome finish - front view

Von Duprin 88-4FT 88 Series 4 ft Wide Stile Crossbar Rim Exit Device, Grade 1, Non-Handed

(No reviews yet) Write a Review

Model: 88EO US26D-4
$2,180.00
$1,580.72
Selected Finish is
Selected Trim Function is
Selected Lever Style (for Lever Trim Function Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,180.00
$1,580.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 88-4FT Wide Stile Crossbar Rim Exit Device - 88 Series, 48", Grade 1

The Von Duprin 88-4FT is a 48" (4 ft) wide stile crossbar rim exit device from the 88 Series, engineered for reliable egress on single and double doors with mullion. Field-reversible and non-handed, it fits stock hollow metal doors with 86 or 161 cutouts and carries ANSI/BHMA A156.3 Grade 1 certification. UL listings include ANSI/UL 10C (fire-rated configurations), ANSI/UL 305, CAN/ULC-S104 (fire-rated configurations), and CAN/ULC-S132 - covering accident hazard and fire-rated installations across a broad range of commercial code requirements.

Key Features

  • 48" Wide Stile Coverage: Full crossbar span for single and double door configurations with mullion; 4-3/4" product projection.
  • Field Reversible, Non-Handed: Installs on any handing without special ordering - no field modification required.
  • ANSI/BHMA Grade 1 Certified: Meets A156.3, 2008 Grade 1 - the highest commercial rating for high-traffic, demanding environments.
  • Multi-Standard UL Listed: ANSI/UL 10C and CAN/ULC-S104 (fire-rated configurations); ANSI/UL 305 and CAN/ULC-S132 for accident hazard installations.
  • 3/4" Latch Throw: Secure latching on 1-3/4" door thickness; device centerline at 39-13/16" from finished floor.
  • Hex Key Dogging: Convenient hold-open capability for appropriate applications.
  • RX Request-to-Exit Switch Option: Available with integrated RX switch for door monitoring, access control, or alarm system integration - select at checkout.
  • Extensive Trim Options: Choose from Exit Only, Lever, Knob, Thumb Piece, Night Latch, Dummy Trim, and Blank Escutcheon configurations across 9 finishes.
  • Electronic Integration Ready: Supports E8875 electrified option for fire alarm or remote switching; KN knurling available for tactile hazard warning on crossbars.
  • All Mounting Fasteners Included: Complete hardware package for straightforward installation.

Compatible Door Types

Designed for hollow metal doors with 86 or 161 cutouts. Also available in surface vertical rod (27 Series), concealed vertical rod (47 Series), and mortise lock (75 Series) configurations for varied door and facility requirements. Compatible trim includes 990 pull trim supporting classroom, dummy, exit only, passage, and storeroom functions.

Typical Applications

  • Commercial office buildings and corporate campuses
  • Educational facilities - K-12 and higher education
  • Healthcare institutions and medical office buildings
  • Retail and mixed-use commercial properties
  • Industrial, warehouse, and manufacturing facilities
  • Multi-family residential and mixed-use properties
  • Government, municipal, and institutional buildings

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
88 Series
Grade:
Grade 1
Device Centerline from Finished Floor:
39-13/16"
Fasteners:
All necessary mounting fasteners are included
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Wood Door Compatible:
No
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Projection:
4-3/4"
Product Style:
Cross Bars
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 88EO US26D-4 – Frequently Asked Questions

1) Will the Von Duprin 88-4FT fit a standard 1-3/4 inch hollow metal door?
That is exactly the opening it is built for. The 88 Series rim device is a 1-3/4 inch door device, and it mounts on stock hollow metal doors prepped with 86 or 161 cutouts, so a standard commercial leaf needs no special prep. The bar itself is 48 inches, so the leaf has to be wide enough to carry a 4 ft crossbar. Two limits to check before you order: it is a wide stile device, and it is a hollow metal device, so a narrow aluminum stile or a wood leaf is the wrong opening for it.
2) My doors are 2 inches thick. Can I still use the Von Duprin 88 Series rim exit device?
No. The 88 is a single-thickness device at 1-3/4 inches, so a 2 inch or 2-1/4 inch leaf is outside it and forcing the fit leaves the trim through-bolts short. For a thicker leaf at the same 48 inch length, the DORMA 9300 Series wide stile rim device covers 1-3/4 to 2-1/4 inches. SDC's Spectra S6000 Series S6136 covers 1-3/4 to 2 inches on a 4 inch wide stile. If the door is an aluminum stile at that thickness, Adams Rite's 8800 Series narrow stile rim device also runs 1-3/4 to 2-1/4 inches.
3) Will the Von Duprin 88-4FT work on a pair of doors?
Only with a mullion between the leaves. A rim device latches into a strike, so on a pair each leaf needs something to latch into, and that is the mullion. The 88 is set up for single doors and for double doors with mullion. If the opening has to stay clear for wide loads or gurneys, a rim device is the wrong type: Von Duprin also builds the same device family as surface vertical rod in the 27 Series and concealed vertical rod in the 47 Series, both of which latch at the head and threshold instead of the frame. Hager's 4501 Series is a Grade 1 concealed vertical rod option with a wide stile pushpad if you want a cross-brand alternative.
4) Is the Von Duprin 88-4FT fire rated? I need panic hardware for a labeled door.
The 88-4FT is not fire rated, so it is not the part for a labeled opening. It is panic hardware for accident hazard use. The giveaway is the hex key dogging: fire exit hardware cannot be dogged, because the latch has to stay projected to keep the door latched under fire conditions. For a labeled door at the same 48 inch length, the Marks USA M9900F is a fire rated rim exit device, exit only with a panic protector end cap. Dexter's ED1000 Series is also offered in a Grade 1 fire rated rim version.
5) Can I use the Von Duprin 88-4FT on an aluminum storefront door?
Not on a narrow aluminum stile. The 88 is a wide stile device and the crossbar spans 48 inches, so it needs the face area of a wide stile hollow metal leaf. For glass front and storefront work, go narrow stile: Adams Rite's 8800 Series covers 1-3/4 to 2-1/4 inch stiles, the EX88 interlocking rim device is another narrow stile Adams Rite option, and Corbin Russwin's ED4200 is a Grade 1 narrow stile rim device for 1-3/4 inch that accepts trim. Falcon's 1590EO is a 42 inch narrow stile exit-only device if you want more bar length on a taller stile.
6) What strike does the Von Duprin 88 Series need, and will it latch into my existing mortise lock prep?
It will not use a mortise lock strike. A rim device latches against a strike mounted on the face of the frame stop, not into an ASA cutout in the jamb, so if you are pulling a mortise lock off the door you are adding a new strike to the frame. The 88 throws its latch 3/4 inch, which is what it needs to hold in that surface strike. Set the device out with its centerline 39-13/16 inches from the finished floor and lay the strike out from there. On a pair, the strike lives on the mullion instead of the jamb.
7) What outside trim do I have to specify with the Von Duprin 88-4FT, and what does each function do?
Trim is a separate choice on the order, and there are twelve: EO exit only, with no outside operation at all; L lever and K knob for normal entry from outside; TP thumb piece; NL night latch, where a key retracts the latch and the outside is otherwise locked; DT dummy trim, which is a pull only; and the combinations L-BE, K-BE and TP-BE with a blank escutcheon, K-NL, L-DT and K-DT. Von Duprin 990 pull trim also mates with the device and supports classroom, dummy, exit only, passage and storeroom functions. All the mounting fasteners for the device come in the box, so the trim choice and any keyed cylinder for a night latch or storeroom function are what you still have to line up.
8) I need a rim exit device for a fire rated opening. What should I order instead of the Von Duprin 88-4FT?
The 88-4FT carries a fire rating of No, so for a fire door assembly look at the Marks USA M9900F-48, a 48 inch fire rated rim panic device supplied exit only, or the Dexter ED1000-R-F-EO, a Grade 1 fire rated rim device. On a narrower opening the Orca OED85 is a 36 inch fire rated rim device, also exit only. Each of those is exit only, so outside key or lever access has to come from separate hardware rather than device trim.
9) My door is an aluminum storefront with a narrow stile. Will the Von Duprin 88-4FT work, or is there a better fit?
The 88-4FT is a wide stile device, so a narrow stile aluminum door calls for a narrow stile rim device instead. The Adams Rite 8700 in 30 inch is a Grade 1 narrow stile rim exit device with starwheel interlocking, the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device at 36 inch that accepts trim, and the Falcon 19-R at 36 inch is a Grade 1 narrow stile device in exit only. All three are built for 1-3/4 inch doors where that thickness is listed, matching the thickness the 88-4FT is set up for.
10) The door is thicker than 1-3/4 inch. What rim exit device covers that if the Von Duprin 88-4FT does not?
The 88-4FT is specified for 1-3/4 inch doors. The DORMA 9300 in 48 inch covers 1-3/4 inch to 2-1/4 inch and is a Grade 1 heavy duty wide stile rim device in exit only, which keeps the same 48 inch width and wide stile arrangement. The Adams Rite 8800 in 30 inch also covers 1-3/4 inch to 2-1/4 inch but is narrow stile, and the SDC S6136 covers 1-3/4 inch to 2 inch on a 4 inch wide stile.
11) Can a Von Duprin 88 Series exit device be tied into an access control or alarm system?
Yes, and the switch has to be specified with the device. The 88 is offered with an RX request-to-exit switch built in, which signals the access control panel or alarm that someone has pushed the bar so the system does not read a legitimate exit as a forced door. It also supports the E8875 electrified option for fire alarm interface or remote switching. If you order the device without a switch, adding RX later means going back into the device rather than a simple accessory, so decide that at order time.
12) Can I hold the exit door unlatched during business hours with the Von Duprin 88-4FT?
Yes. The 88-4FT ships with hex key dogging, so you depress the crossbar, turn the hex key, and the latch stays retracted until you undog it. The door then pushes and pulls free without operating the device, which is what most retail and office openings want during open hours. Two things to know: dogging is a manual trip to the door morning and night, and it is only legitimate here because this device is not fire rated. Never dog a labeled fire door.
13) How much clearance does the Von Duprin 88 Series crossbar need on the push side of the door?
Allow 4-3/4 inches off the door face. That is the product projection for the 88, and it matters in a tight vestibule, where a door swings back against a side wall, or where two leaves swing toward each other. Measure from the door face to whatever it swings toward before you commit. Mounting height is fixed too: the device centerline sits 39-13/16 inches from the finished floor.
14) What other 48 inch crossbar rim exit devices are there besides the Von Duprin 88-4FT?
Two close matches on length and style. The CRL Jackson 1095 Series is a 48 inch wide stile crossbar rim panic device, and the Corbin Russwin ED3000 Series ED3200 is a 48 inch Grade 1 wide stile crossbar for 1-3/4 inch doors. The difference is what they do on the outside: both of those are listed exit only or panic device only, while the 88 is offered with twelve trim functions including lever, knob, thumb piece and night latch. If nobody needs to come in through that door, the exit-only devices cover it. If it is a classroom, storeroom or a door the staff key into, the 88 is the one that takes the trim.
15) The spec on my drawing calls for Grade 1 panic hardware. Does the Von Duprin 88 Series meet it, and are the cheaper 48 inch devices the same?
The 88 is certified to ANSI/BHMA A156.3, 2008, Grade 1, so it meets a Grade 1 call-out. Not every 48 inch rim device does. The Cal-Royal 5500, for instance, is a 48 inch heavy duty push bar rim device at Grade 2, which is a different cycle and strength class and will get rejected on a Grade 1 spec. If you want a Grade 1 alternative at 48 inches, the Corbin Russwin ED3200 crossbar and the DORMA 9300 Series are both Grade 1 wide stile rim devices at that length.
16) Do I have to order the Von Duprin 88-4FT left hand or right hand?
The device is non-handed and field reversible, so one part number covers the opening either way and no field modification is needed to change it. Panic hardware goes on out-swinging doors, which is why the only two hands in play are right hand reverse and left hand reverse, and the 88 handles both. For a property manager stocking spares across a building, that means one device on the shelf instead of two.
17) I want a push bar or touch bar look instead of a crossbar. What 48 inch alternatives are there to the Von Duprin 88-4FT?
The 88-4FT uses a crossbar. For a push style bar at the same width, the Sargent 3828 is a Grade 1 reversible push bar rim device for 48 inch doors in exit only, and the Cal-Royal 5500 is a 48 inch rim device with a push bar at Grade 2 heavy duty. The CRL Jackson 31-1295 is a non-handed push pad rim panic device for wide stile doors at 1-3/4 inch thickness, also exit only. The trade in each case is trim: those three are exit only, while the 88-4FT is ordered with lever, knob, thumb piece, night latch or dummy trim.
18) I need outside lever access, not just egress. Which comparable devices actually accept trim and which do not?
The Von Duprin 88-4FT is ordered with the outside trim built into the configuration, including lever, knob, thumb piece, night latch and dummy trim, in nine finishes. Among the alternatives, the Corbin Russwin ED5200 at 36 inch wide stile and the Corbin Russwin ED4200 at 36 inch narrow stile are both listed as exit only and accepting trim, so outside operation can be added. The Sargent 2828 for 48 inch minimum door width, the Corbin Russwin ED2200 at 36 inch, and the CRL Jackson 31-1095 at 48 inch are listed exit only, so they push to exit and give no outside lever or key function from the device.
19) Is there a lighter duty rim exit device than the Von Duprin 88-4FT for a low traffic back door?
The 88-4FT is certified ANSI/BHMA Grade 1. If the opening does not call for Grade 1, the Cal-Royal 5500 is a 48 inch heavy duty rim device at Grade 2 with a push bar, and the Cal-Royal 5000 is the 36 inch heavy duty Grade 2 version with a touch bar. The Design Hardware 2000R at 33 inch is a standard duty wide stile rim device with hex key dogging, the same dogging method the 88-4FT uses, and the Hager 4701 at 36 inch is a standard duty rim device carrying Grade 1 BHMA certification.
20) My pair of doors has no mullion. Is a rim device like the Von Duprin 88-4FT still the right choice?
The 88-4FT is a rim device intended for single doors and for pairs used with a mullion. On a pair without a mullion, a vertical rod device latches into the head and sill instead. The Hager 4501 at 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 at 36 inch is the Grade 1 concealed vertical rod device for narrow stile doors.
21) I am tying the exit device into an access control system. How does the Von Duprin 88-4FT compare with the electrified alternatives?
The 88-4FT can be ordered with an RX request to exit switch for monitoring, alarm or access control integration, while the device itself stays mechanical. If the job needs electric latch retraction or a factory electrified chassis, the Sargent 12-8810 with L trim is a fire rated Grade 1 wide stile device supplied with RX and MELR, and the SDC S6136 is an electrified architectural rim device on a 4 inch wide stile covering 1-3/4 inch to 2 inch doors. The Dormakaba E2103 is a 36 inch electrified rim device supplied with 4908A trim in classroom function.
22) Can an SDC switch bar or pressure sense bar replace a Von Duprin 88-4FT?
They look similar on the door but they do a different job. The 88-4FT is a mechanical rim exit device with a 3/4 inch latch throw that latches the door itself. The SDC MSB550 at 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit at 36 inch is a pressure sense bar with tri-failsafe technology. Both fit narrow or wide stile doors, but they signal a lock to release rather than throwing a latch, so they only work where the locking hardware is separate and electrified.
23) My doors are 36 inch, not 48 inch. Which Grade 1 wide stile rim devices fit that width?
The 88-4FT is a 48 inch device. At 36 inch on a wide stile door, the Detex 10 Advantex is a Grade 1 extra heavy duty rim device, the TownSteel ED1100 is a Grade 1 heavy duty panic rim device, and the Corbin Russwin ED5200 is a Grade 1 wide stile device for 1-3/4 inch doors that accepts trim. The BEST Precision 2101 is another 36 inch wide stile rim device in that group.
24) What finishes does the Von Duprin 88 Series crossbar device come in? I need it to match the rest of the building.
Nine finishes, by BHMA number: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 643E aged bronze and 693 black. If you are matching existing openings, work from the BHMA number stamped or specified on the hardware already installed rather than the finish name, since names vary between manufacturers and the number does not. 626 satin chrome is the usual commercial default.
25) Can I get a knurled crossbar on the Von Duprin 88 Series for a hazardous room?
Yes. KN knurling is offered on the crossbar, which gives the tactile warning used on doors into mechanical, electrical and chemical storage rooms so someone reaching for the bar in the dark knows what is behind it. Specify it with the device; it is a crossbar option, not something added afterward.
26) The inactive leaf only needs matching hardware, not a working device. What are my options next to the Von Duprin 88-4FT?
The 88-4FT can be ordered with DT dummy trim, or as knob with dummy trim and lever with dummy trim, so the same device appearance carries across the pair. The Detex Advantex 00 Series is the other route: a Grade 1 super heavy duty dummy exit device for wide stile doors, supplied as a dummy rather than as an operating device.
27) I need night latch function for a service entrance. How does the Von Duprin 88-4FT compare with a dedicated night latch device?
The 88-4FT covers night latch as an ordering choice, in NL and in K-NL knob with night latch, on the same 48 inch wide stile crossbar device. The Sargent 8504 takes the other approach: a Grade 1 device supplied in night latch function on a narrow stile design, so it suits an aluminum door rather than the hollow metal wide stile opening the 88-4FT is built for.
