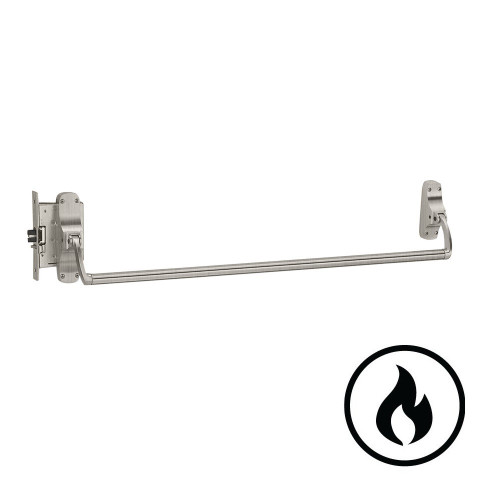

Von Duprin 8875F Series - Fire Rated 3 ft Wide Stile Crossbar Mortise Exit Device, Less Dogging
Model: VON-8875F-3FT
Von Duprin

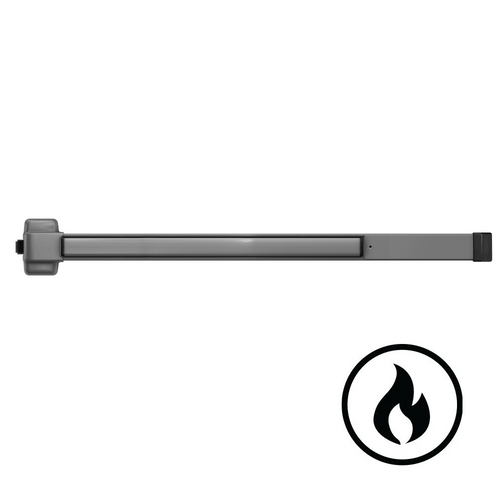

Von Duprin 22F Series - Fire Rated 3 ft Wide Stile Pushpad Rim Exit Device, Less Dogging
Model: VON-22F-3FT
Von Duprin
88 Rim Exit Device
88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161* cutouts. This device is field reversible.
SERIES
The 55 and 88 Series are Exit Device crossbars with a classic design. The 55 and 88 Series have the same functionality with different dimensions and design elements; the 55 Series is a narrow stile device and the 88 Series is a wide stile device. The 55 Series is commonly used in retro-inspired architecture and historical buildings. The 88 Series is a standard device for applications where a crossbar is preferred. Both Series are ANSI/BHMA A156.3, 2008 Grade 1 certified and UL rated.
Features and Benefits
- Several surface-mounted vertical applications
- Several rim applications
- Available in 3’ and 4’ lengths that are field sizeable for single and double door applications
Specifications
The 55 and 88 Series certifications and specifications are specific to each configuration. See the 55 and 88 Series catalogs for more details.
- ANSI/BHMA A156.3, 2008 Grade 1 certified
- ANSI/UL 10C (fire rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire rated only)
- CAN/ULC-S132
Device Type
All 55 and 88 Series devices can be ordered as being fire rated. Note the mention of “Fire” in the description and the inclusion of “F” in the product model number.- Rim
- 27: surface-mounted vertical rods
- 47: concealed vertical rods
- 75: Mortise Locks
TRIM OPTIONS
Many trims and configurations are available for the 55 and 88 Series. See the 55 and 88 Series catalogs for a complete list.
Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt and the lever or knob is rigid
Popular trims
- 990: for pull trim, 5 functions come standard:
- Classroom (TP)
- Storeroom (NL)
- Dummy trim (DT)
- Passage (TP-BE)
- Exit only (EO)
Levers and Finishes
There is a wide variety of levers and finishes available. Refer to the 55 and 88 Series catalogs for complete information.
OPTIONS
The 55 and 88 Series can be customized with several mechanical, electronic and finish options to meet any facility needs.
- E8875: allows the device to pair with an access control system, fire alarm system or remote switching station
- RX: a switch is placed in the Exit Device to monitor an opening; when the push bar is depressed, a signal is sent to a monitoring device
- KN: knurling on crossbars provide a tactile warning to indicate doors that lead to hazardous areas; ex: stairs, loading platforms, boiler rooms, etc.
Accessories
From mullions to power transfers and strikes, the 55 and 88 Series offer many accessories to meet evolving needs of any facility. Refer to the 55 and 88 Series catalogs for a complete list.
Resources and Downloads
- 88 Series catalog
- Von Duprin 88 Wood Door Trims Controls Strikes Template Index
- Von Duprin 88 Wood Door Template Index
- Von Duprin 88 Hollow Metal Door Template Index
- Von Duprin 88 Hollow Metal 86 Door Template Index
- Von Duprin Auxiliary Catalog
- Von Duprin Full Line Hyperlinks Catalog
- Allegion Connect Data Sheet
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 88 Series
- Grade:
- Grade 1
- Device Centerline from Finished Floor:
- 39-13/16"
- Door Thickness:
- 1-3/4"
- Fasteners:
- All necessary mounting fasteners are included
- Dimensions:
- 6" x 1-3/4" x 15/16" (Hinge Stile Case), 8-1/4" x 2-3/4" x 15/16" (Lock Stile Case)
- Handing:
- Non-Handed
- Product Subgroup:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Projection:
- 4-3/4"
- Latch Throw:
- 3/4"
- Dogging:
- Less Dogging
- Product Type:
- Exit Devices - Rim
- Commercial/Residential:
- Commercial
- Style:
- Cross Bars
- Size:
- 48"
- Stile Type:
- Wide Stile
- Fire Rated:
- Yes
