Von Duprin 9447/9547 Impact Se...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,420.00
$1,581.07

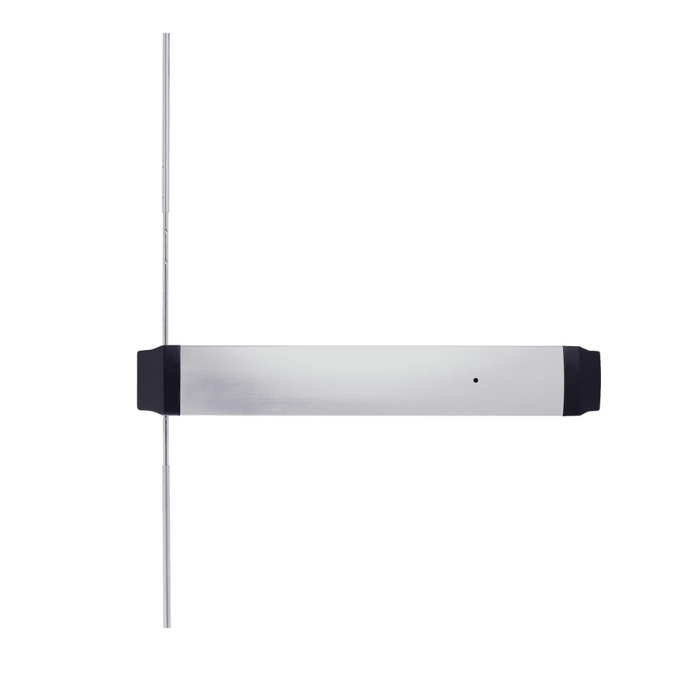

Von Duprin 9447/9547 Impact Series Concealed Vertical Rod Exit Device

Von Duprin 9447/9547 Impact Series Concealed Vertical Rod Exit Device

(No reviews yet) Write a Review

Model: 9447-628
$2,420.00
$1,581.07
Selected Finish is
Selected Case Style is
Selected Trim Function is
Selected Lever Style (for "L" Lever Trim Options Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,420.00
$1,581.07
Adding to cart… The item has been added
This item qualifies for Free Shipping!
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
9447/9547 Concealed Vertical Rod Exit Device

The 94 and 95 Series recessed push pads are for high-traffic applications and reduce impact. They are fully integrated within a door to protect it from abuse.

Both the 94 and 95 Series are low-profile devices and are compatible with hollow metal doors. Both Series are commonly used in hospitals and other facilities where building openings must accommodate high volumes of people and equipment.

The 94 and 95 Series have the same functionality, but different design elements. The 94 Series has a smooth mechanism case, while the 95 Series has a grooved mechanism case.

Features and Benefits

  • Reduced projection of push pad reduces potential obstruction
  • Quiet electronic latch retraction option for access control applications
  • Available as part of Allegion INPACT door system
  • Antimicrobial coating available
  • Sloped die-cast metal endcaps deflect impact
  • Extruded aluminum construction
  • Available with less bottom rod (LBR) to reduce floor obstruction
  • Non-handed design



RESOURCES & DOWNLOADS


Manufacturer Resources

Product Specs

Product Group:
Exit Devices and Trim
Series:
94/95 Series
Grade:
Grade 1
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Devices
Stile Type:
Wide Stile
Door Hand Direction:
Non-Handed
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Style:
Push Pads
Product Category:
Exit Devices and Trim

Von Duprin 9447-628 – Frequently Asked Questions

1) What is the Von Duprin 9447/9547 Impact Series concealed vertical rod exit device used for?
The 9447/9547 is a concealed vertical rod exit device designed for high-traffic doors requiring heavy-duty performance. The concealed rods provide a clean aesthetic while meeting egress code requirements. Used on doors where visible hardware is not desired but security and durability are critical.
2) What door types and materials are compatible with this exit device?
Compatible with hollow metal, solid wood, and composite doors. Requires minimum door thickness and proper reinforcement. Check manufacturer specifications for exact door weight and dimension requirements. Not suitable for glass doors or doors without adequate structural integrity.
3) How do I determine the correct handing for the 9447/9547?
Handing is determined by standing on the egress side of the door. Right hand (RH) opens away from you with hinges on the right. Left hand (LH) opens away from you with hinges on the left. Specify handing when ordering to ensure proper function.
4) What finishes are available for the Impact Series 9447/9547?
Available in standard Von Duprin finishes including 626 satin chrome, 628 satin aluminum, 689 dark bronze, and others. Contact us to verify current finish availability for your specific model. Custom finishes may be available with extended lead times.
5) What grade rating does this exit device carry?
The Impact Series typically carries Grade 1 certification for heavy-duty commercial applications. Designed for high-cycle use and meets ANSI/BHMA standards. Verify specific grade requirements with local codes and project specifications.
6) Does the 9447/9547 meet fire and building code requirements?
Yes, when properly installed on rated door assemblies. Listed for use on fire-rated doors when used with approved hardware combinations. Always verify local code compliance and consult with authorities having jurisdiction for specific applications.
7) What accessories and trim options work with this device?
Compatible with various Von Duprin cylinders, pulls, and electrical options. Can be used with key override, request-to-exit devices, and monitoring switches. Browse our Von Duprin collection for compatible accessories and trim pieces.
8) What are the basic installation requirements for the 9447/9547?
Requires precise door preparation including mortising and drilling per manufacturer templates. Install top and bottom rod brackets in frame header and floor. Professional installation recommended due to alignment requirements. Follow Von Duprin installation instructions exactly.
9) How do I maintain and adjust the concealed vertical rods?
Regular lubrication of moving parts with manufacturer-approved lubricant. Check rod alignment and bracket adjustment periodically. Test device operation monthly for smooth function. Address binding or misalignment immediately to prevent damage.
10) What's the difference between the 9447 and 9547 models?
Model differences typically relate to specific features, electrical options, or mounting configurations. Verify exact specifications for your application requirements. Both are part of the Impact Series concealed vertical rod family with heavy-duty construction.
11) Can this device handle extreme weather or environmental conditions?
Built for demanding commercial environments with weather-resistant components. Concealed design protects internal mechanisms from exposure. Consider environmental factors during installation and specify appropriate seals and gaskets for exterior applications.
12) What are the key measurements needed for proper fitment?
Verify door height, width, thickness, and frame dimensions. Check header and floor clearances for rod operation. Measure backset requirements and cross-reference with manufacturer templates. Confirm adequate reinforcement in door structure for device mounting.
