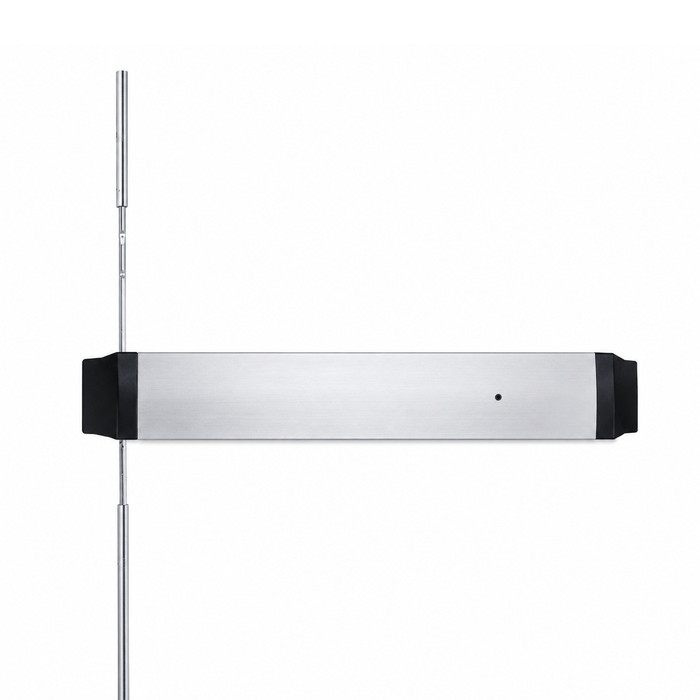

Von Duprin 9448F/9548F Impact Series Fire Rated Concealed Vertical Rod Exit Device with Recessed Push Pad for Wide Stile Doors

Von Duprin 9448F/9548F Impact Series Fire Rated Concealed Vertical Rod Exit Device with Recessed Push Pad for Wide Stile Doors

(No reviews yet) Write a Review

Model: 9448F-626
$3,365.00
$2,770.00
Selected Finish is
Selected Case Style is
Selected Trim Function is
Selected Lever Style (for "L" Lever Trim Options Only) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,365.00
$2,770.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin 9448F/9548F Impact Series Fire Rated Concealed Vertical Rod Exit Device with Recessed Push Pad for Wide Stile Doors

High-Traffic Commercial Exit Solution with Low-Profile, Impact-Resistant Design

The Von Duprin 9448F/9548F Impact Series Fire Rated Concealed Vertical Rod Exit Device is engineered for demanding, high-traffic environments where door protection and reliable egress are paramount. Featuring a fully recessed push pad that integrates within the door surface, this 48" wide stile device minimizes projection and reduces potential obstruction while shielding the door from impact and abuse. Compatible with hollow metal doors and available as part of the Allegion INPACT door system, the 94 and 95 Series are widely specified for hospitals, healthcare facilities, and other high-volume building openings. The 94 Series features a smooth mechanism case while the 95 Series offers a grooved mechanism case, providing design flexibility within the same functional platform. Both series carry a Grade 1 rating and feature a non-handed design for versatile installation.

Professional Features & Benefits

  • Recessed Push Pad Design: Fully integrated within the door to reduce projection and minimize potential obstruction, protecting the door from impact and abuse in high-traffic applications.
  • Wide Stile Compatibility: Designed for wide stile doors with a 48" product size, making it ideal for large commercial openings in hospitals and high-volume facilities.
  • Grade 1 Performance: BHMA Grade 1 rated for superior durability and long-term reliability in the most demanding commercial and institutional environments.
  • Quiet Electronic Latch Retraction (QEL) Option: Optional quiet electronic latch retraction for seamless access control integration without disruptive mechanical noise.
  • Allegion INPACT Door System Compatible: Available as part of the Allegion INPACT door system for a fully coordinated, impact-resistant door opening solution.
  • Anti-Microbial Coating Available: Optional antimicrobial coating supports hygiene-sensitive environments such as healthcare and food service facilities.
  • Sloped Die-Cast Metal Endcaps: Sloped die-cast metal endcaps deflect impact and protect device components from damage in high-traffic corridors.
  • Extruded Aluminum Construction: Durable extruded aluminum body provides a lightweight yet robust platform for long-term commercial use.
  • Less Bottom Rod (LBR) Option: Available with less bottom rod (LBR) configuration to reduce floor obstruction in applicable installations.
  • Non-Handed Design: Non-handed configuration simplifies specification, ordering, and installation across a variety of door applications.
  • Hex Key Dogging: Hex key dogging configuration allows the latch to be held in the retracted position for hands-free passage during business hours.

Technical Specifications

  • Product Group: Exit Devices and Trim
  • Series: 94/95 Series
  • Grade: Grade 1
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Concealed Vertical Rod
  • Subcategory: Concealed Vertical Rod Exit Devices
  • Stile Type: Wide Stile
  • Door Hand Direction: Non-Handed
  • Product Size: 48"
  • Dogging Configuration: Hex Key Dogging
  • Fire Rating: No
  • Product Style: Push Pads
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Hospital and Healthcare Facility Corridors
  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Retail and High-Traffic Public Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential and Mixed-Use Properties
  • Government and Municipal Buildings

Anti-Microbial Option

The Von Duprin 9448F/9548F is available with an optional antimicrobial coating, making it well-suited for hygiene-sensitive environments such as healthcare institutions, food service facilities, and other settings where surface cleanliness is a priority. This option provides an added layer of protection on frequently touched surfaces without compromising device performance or aesthetics.

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices are built to Grade 1 commercial standards, featuring extruded aluminum construction and sloped die-cast metal endcaps engineered to withstand the rigors of high-traffic institutional environments. The 94/95 Series INPACT platform integrates fully within the door to protect against impact and abuse, while options such as quiet electronic latch retraction and antimicrobial coating allow the device to be tailored to specific application demands. Engineered for demanding commercial and healthcare applications where dependable, long-term egress performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
94/95 Series
Grade:
Grade 1
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Devices
Stile Type:
Wide Stile
Door Hand Direction:
Non-Handed
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Style:
Push Pads
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin 9448F-626 – Frequently Asked Questions

1) Do I have to specify a hand when ordering a Von Duprin 94/95 Series concealed vertical rod device?
The device chassis is non-handed, so the exit device itself works either way. You still pick LHR (left hand reverse) or RHR (right hand reverse) on the order because the trim and prep follow the door swing. Stand outside the opening: if the door pulls toward you and the hinges are on your left, it is LHR.
2) Can I run a concealed vertical rod exit device without a bottom rod so nothing drags at the floor?
Yes, the 94/95 Series is orderable with the LBR (less bottom rod) option, which drops the bottom rod and strike so there is no floor obstruction and nothing to catch on carpet or debris. Without LBR the device latches at both head and threshold.
3) Can the Von Duprin 9448F/9548F be tied into an access control system?
Yes. Order it with QEL, quiet electric latch retraction, which pulls the latches electrically without the noise of a solenoid slam, so it can be released on a card reader or scheduled unlock. LX latch bolt monitoring is a separate option if the head end needs to report latch position back to the panel.
4) My opening is a narrow stile aluminum door - what concealed vertical rod device should I use instead of the 94/95 Series?
The Von Duprin 9448F/9548F is built for wide stile doors, so it will not suit a narrow stile aluminum opening. The Adams Rite 8600 Series is a Grade 1 narrow stile concealed vertical rod device made for aluminum doors. Other narrow stile options include the Corbin Russwin ED4800, the Falcon 1690EO and 1990EO, and the DORMA 9600BB, a Grade 1 narrow stile pushpad CVR for 1-3/4 to 2-1/4 inch doors.
5) What is the closest wide stile Grade 1 concealed vertical rod alternative to the Von Duprin 9448F/9548F?
The Corbin Russwin ED5800 is the nearest match on the core specs: it is a Grade 1 wide stile concealed vertical rod device, offered exit only or to accept trim, for 1-3/4 inch doors. The Von Duprin 94/95 Series is also Grade 1 wide stile and takes trim options including 940L lever, 550DT dummy, and thumbturn key trim. The DORMA 9100 Series is another wide stile Grade 1 pushpad CVR, rated heavy duty for 1-3/4 to 2-1/4 inch doors. The Von Duprin remains the one to use when a recessed push pad integrated into the door face is part of the spec.
6) The 9448F/9548F name has an F in it - is it fire rated, and what do I order if my opening needs a fire label?
The Von Duprin 9448F/9548F is catalogued with a Fire Rating of No, so for a labeled opening look to a device carried as fire rated: the Adams Rite 3600 Series is a Grade 1 wide stile fire-rated concealed vertical rod device for hollow metal doors, and the Adams Rite 3900 Series is a Grade 1 wide stile fire-rated CVR with a 1-1/2 hour rating. Sargent's 12-MD8613 is a Grade 1 wide stile fire-rated CVR in classroom function if the opening also needs key-outside control.
7) What looks like a substitute for the 9448F/9548F but will not actually fit the same opening?
Two traps. First, narrow stile CVR devices such as the BEST Precision 2601, Falcon 24-C or Corbin Russwin ED4800 are the same device category but are cut for narrow stile doors, while the Von Duprin 94/95 is a wide stile 48 inch device. Second, the Falcon 1491DT is dummy trim only - it provides no panic egress function at all and cannot stand in for a live exit device. The Corbin Russwin ED7800 is also worth checking before ordering: it is a crossbar device in narrow stile, not a recessed push pad.
8) What is the difference between the Von Duprin 94 Series and 95 Series?
Function is identical. The 94 Series has a smooth mechanism case and the 95 Series has a grooved case. It is an appearance choice, so match whichever case style is already running on your other openings.
9) How do I hold a Von Duprin 94/95 exit device unlocked during business hours?
It uses hex key dogging. Insert the hex wrench in the push pad and depress the pad to hold the latches retracted, so the door push-pulls freely through the day, then undog at close. If the opening is on an access control schedule, the QEL option does the same thing electrically.
10) Why choose a concealed vertical rod device with a recessed push pad for a hospital corridor?
Because both the rods and the pad stay inside the door. The rods run concealed in the door instead of being surface mounted where carts hit them, and the push pad sits flush in the door face to cut projection. Sloped die-cast endcaps deflect impact, and an antimicrobial coating is available for hygiene sensitive areas. The body is extruded aluminum and the device is BHMA Grade 1.
11) What are the alternatives to the Von Duprin 94/95 concealed vertical rod if I need a wide stile device from another brand?
On wide stile openings the Corbin Russwin ED5800 is a Grade 1 concealed vertical rod for 1-3/4 inch doors, exit only or accepting trim. The DORMA 9100 Series is a Grade 1 heavy duty wide stile push pad concealed vertical rod covering 1-3/4 to 2-1/4 inch doors, which is the one to look at if your door is thicker than 1-3/4. The BEST Precision 2701 is the wide stile reversible version for wood doors. None of these carry the recessed pad or the INPACT impact-resistant door system integration.
12) I only need exit only on a wide stile door - is there a simpler device than the Von Duprin 94/95?
Yes. The 9448F/9548F is a full trim-capable platform, ordered with EO, dummy, thumbturn or 940L lever trim. If the opening is push-to-exit with no outside operation, the CRL Jackson 1085 Series is a 48 inch non-handed wide stile concealed vertical rod panic device built exit only, and the CRL Jackson 1285 push pad CVR is exit only and fits narrow, medium or wide stile. The Corbin Russwin ED5800 is also available exit only in wide stile.
13) Does the Von Duprin 9448F/9548F work on wood doors, or is there a better choice?
The Von Duprin 94/95 Series INPACT platform is described for hollow metal doors as part of the Allegion INPACT door system. For a wood door pair, the BEST Precision 2701 Series is a wide stile concealed vertical rod exit device specifically listed as reversible for wood doors. The BEST Precision 2801 Series is another wide stile CVR option in the same family.
14) I need hex dogging on a concealed vertical rod device - what are my options besides the Von Duprin 94/95?
The Von Duprin 9448F/9548F carries hex key dogging, which holds the latches retracted for hands-free passage during business hours. The Sargent MD8613F-LTRIM is a heavy duty Grade 1 concealed vertical rod device for metal doors with hex dogging, sized 36 x 84. Note that hex dogging is a non-fire-rated feature set, so confirm the opening does not require a label before specifying either.
15) I need electric latch retraction and latch monitoring on a concealed vertical rod exit device - does a comparable device offer that?
The Von Duprin 9448F/9548F is ordered with QEL quiet electric latch retraction and LX latch bolt monitoring as configurable options, along with LBR less bottom rod. Among the comparable wide stile Grade 1 CVR devices, the Corbin Russwin ED5800 and DORMA 9100 are catalogued as mechanical wide stile platforms, so for a single device that carries the access-control options with it the 94/95 Series is the direct answer.
16) What finishes does the Von Duprin 94/95 Series concealed vertical rod device come in?
Eight: 605 bright brass, 606 satin brass, 612 satin bronze, 625 bright chrome, 626 satin chrome, 628 aluminum anodized, 710 dark bronze anodized and 711 flat black. For a building already standardized on Von Duprin, 626 and 628 are the usual commercial matches.
