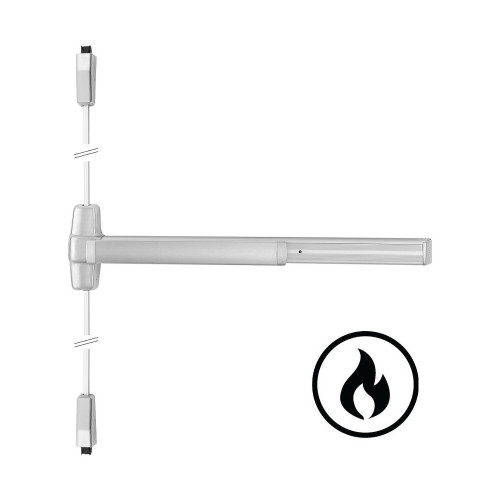

Von Duprin 9847-4ft Wide Stile Concealed Vertical Rod Exit Device with Smooth Case, 48" Push Pad

Von Duprin 9847-4ft Wide Stile Concealed Vertical Rod Exit Device with Smooth Case, 48" Push Pad

Heavy-Duty Commercial Concealed Vertical Rod Panic Exit Hardware for Institutional Applications

The Von Duprin 9847-4ft is a wide stile concealed vertical rod exit device from the renowned 98/99 Series, engineered for demanding institutional environments including schools, hospitals, and government buildings. Featuring a smooth mechanism case and a 48" push pad, this device is designed for single or double metal doors with a door thickness of 1-3/4" and delivers a 3/4" latch throw with a 5/8" bottom bolt concealed vertical rod configuration. Certified to ANSI/BHMA A156.3 2014 Grade 1 and UL listed for panic exit hardware, the 9847-4ft provides the highest level of code-compliant performance for commercial applications. The device is non-handed in standard configuration, offering flexible installation across a wide range of openings.

Professional Features & Benefits

• Wide Stile Push Pad Design: 48" push pad with smooth mechanism case (9847 Series) provides a clean architectural appearance and reliable panic egress for wide stile door applications.
• Concealed Vertical Rod Configuration: 47-series concealed vertical rod with 5/8" bottom bolt secures both top and bottom of the door for superior holding strength without exposed rods.
• Precise Dimensional Specifications: Center case dimensions of 8" x 2-3/4" x 2-3/8" with a product projection of 3-13/16" and 3/4" latch throw engineered for consistent, reliable latching performance.
• Door Compatibility: Designed for metal doors 1-3/4" thick; fasteners included for wood or metal doors 1-3/4" and 2-1/4" thick for versatile installation options.
• Grade 1 Certified Performance: ANSI/BHMA A156.3 2014 Grade 1 certified, UL listed for panic exit hardware (ANSI/UL 305), and compliant with ANSI/UL 10C and CAN/ULC-S104 for fire-rated applications, as well as CAN/ULC-S132.
• Non-Handed Versatility: Standard configuration is non-handed, simplifying specification and inventory management; handing required only when SD (special dogging) or SS (signal switch) options are selected.
• Hex Key Dogging: Hex key dogging configuration allows the latchbolt to be held in the retracted position for high-traffic periods, improving convenience without compromising security.
• Field-Configurable Options & Retrofit Kits: Supports a broad range of field-configurable options including CDSI/HDSI security dogging indicators, QEL electronic latch retraction, RX (request to exit) and LX (latchbolt monitoring) electronic switches, and retrofit kits to keep pace with evolving technology.
• ADA & Delayed Egress Upgrade Paths: AX option certified to meet 5 lb. force requirements for the 2010 ADA (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4); CX (CHEXIT) option meets NFPA and IBC requirements for delayed egress with 15-second door hold and nuisance alarm.

Technical Specifications

• Series: 98 & 99 Series
• Grade: Grade 1
• Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Subcategory: Concealed Vertical Rod Exit Devices
• Latch Throw: 3/4"
• Commercial/Residential: Commercial
• Stile Type: Wide Stile
• Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
• Wood Door Compatible: No
• MAP Policy: Yes
• Product Model: 9847-3ft
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/4"
• Product Size: 48"
• Dogging Configuration: Hex Key Dogging
• Fire Rating: No
• Product Projection: 3-13/16"
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Public and Private Educational Facilities (Schools, Universities)
• Healthcare Institutions (Hospitals, Clinics, Medical Centers)
• Government and Municipal Buildings
• Commercial Office Buildings
• Industrial and Warehouse Facilities
• Multi-Tenant Residential and Mixed-Use Properties
• Retail Establishments and Shopping Centers

Why Choose Von Duprin Quality?

Von Duprin concealed vertical rod exit devices from the 98/99 Series are certified to ANSI/BHMA A156.3 2014 Grade 1 standards and UL listed for panic exit hardware, reflecting a commitment to the highest levels of safety and performance in commercial door hardware. The 9847-4ft smooth case wide stile device is engineered for high-use and high-abuse institutional environments, with a broad ecosystem of field-configurable options and retrofit kits that allow facilities to adapt to evolving security and accessibility requirements. Trusted in schools, hospitals, and government buildings, Von Duprin exit devices deliver the professional-grade reliability that demanding commercial applications require.
