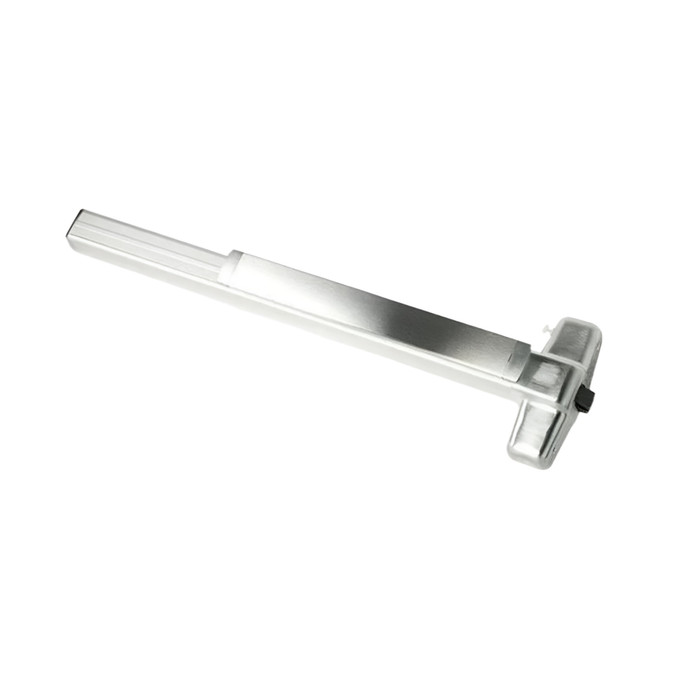

9852/9952 POOL EXIT HARDWARE MODEL
Openings beyond the interior often have additional functional requirements that go beyond the limits of standard door hardware. Von Duprin offers the safety of panic hardware for pool enclosures, tested to withstand corrosive cleaners typically used in outdoor pool environments. Both the device and trim are built with weather resistant components that can withstand the harsh conditions of various climates. Understanding that hardware solutions need to be flexible and configurable, the Von Duprin 98/9952 with 252L trim is designed to meet the very specific needs of outdoor pool areas.
Engineered to be installed easily, the 98/9952 device can be mounted within the required range by the model codes and accessibility standards, while the 252L trim is mounted at least 54" from finished floor or concrete. Gate poles must have at least 3" stile width by 2" depth for ideal installation.
Compliance
- Listed with UL for panic exit hardware (UL 305)
- Certified to ANSI/BHMA A156.3 2014, Grade 1
- Meets International Building Code for pool enclosures
- Compliant with the 2010 ADA Standards for Accessible Design
Features and benefits
- Patent-pending design built to meet code requirements for pool enclosures
- Weather-resistant components ideal for outdoor applications
- Easy installation and maintenance
- Simple to operate
- UL listed for panic exit hardware (UL305)
98/99 Series
The 98/99 Series devices are wide stile heavy-duty push pads. Architectural design elements differ between the 98 and the 99.
The 98 Series device has a smooth mechanism case, while the 99 Series has a grooved mechanism case. The 98/99 Series have all been certified to the highest industry standards and are used in schools, hospitals and government buildings.
Features and Benefits
- The breadth of available options allows for tailoring to any facility’s needs.
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities.
- A variety of field-configurable options available.
- Retrofit kits available to keep up with changing technology.
Specifications
Specifications and certifications are specific to each configuration. See the 98/99 Series catalogs for more information.
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132
Device Type
The 98/99 Series offers a solution for any single, double and double egress door. All devices can be ordered by adding the “-F” suffix.
- No suffix: rim devices
- 27: surface-mounted vertical rod
- 47: concealed vertical rod (5/8” bottom bolt)
- 47WDC: wood door concealed vertical rod
- 48: concealed vertical rod (1-1/2” bottom bolt)
- 49: concealed vertical cable
- 50WDC: Wood Door Concealed Vertical Cable
- 52: 1-point concealed vertical cable
- 57: 3-point latching
- 75: Mortise Lock devices
FUNCTIONS & TRIM
A variety of functions and trim options are available, but only the standard options are listed below. Refer to the 98/99 Series catalog for more information.
Functions
- Classroom: the key locks and unlocks the lever or knob
- Dummy: the rigid mechanical trim for pull operation
- Exit only: no outside trim
- Passage: the lever or knob is always active
- Storeroom: the key retracts the latchbolt, the lever or knob is rigid
98/99 Series popular trims
- 990: pull trim, 5 standard functions:
- Classroom (TP)
- Storeroom (NL)
- Dummy trim (DT)
- Passage (TP-BE)
- Exit only (EO)
- 996: lever or knob trim, 4 standard functions:
- Classroom (L, K)
- Storeroom (L-NL, K-NL)
- Dummy (L-DT, K-DT)
- Passage (L-BE, K-BE)
Levers and Finishes
The 98/99 Series offers many choices for levers and finishes. Refer to the 98/99 Series catalog for more information.
OPTIONS
With the 98/99 Series, the devices can be retrofitted to keep up with evolving technology with various retrofit kits. Refer to the 98/99 Series catalog for more information.
Retrofitting an existing device
- CDSI/HDSI: security dogging indicators provide at-a-glance verification of the panic device status
- QEL: electronic latch retraction with limited operational noise
- Electronic switches: can be used as part of an access control system or in a standalone application
- Request to exit (RX)
- Latchbolt monitoring (LX)
Upgrading to a new device
- AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
- CX: CHEXIT meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
- XP: patented 2-piece latchbolt design, available for 98/99 Series panic and fire applications
Accessories
From mullions to powers transfers and strikes, the 98/99 Series offers a range of accessories to meet the evolving needs of any facility. Refer to the 98/99 Series catalog for more information.
RESOURCES & DOWNLOADS
98/99 Series Catalog Document Library Mechanical pool exit hardware data sheet
Von Duprin Template Directory
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 98 & 99 Series
- Grade:
- Grade 1
- Projection:
- 3-13/16"
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Subcategory:
- Rim Exit Devices
- Latch Throw:
- 3/4"
- Dogging:
- Hex Key Dogging
- Fire Rated:
- No
- Commercial/Residential:
- Commercial
- Style:
- Push Pads
- Stile Type:
- Wide Stile
- Center Case Dimensions:
- 8" x 2-3/4" x 2-3/8"
- Wood Door Compatible:
- No
- MAP Policy:
- Yes
- Product Model:
- 9852-4FT
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/4"
- Product Size:
- 48"
