Von Duprin 99-ALK Alarm Kit for 99 Series Exit Devices with 85dB Horn and Key-Operated Arming

Von Duprin 99-ALK Alarm Kit for 99 Series Exit Devices with 85dB Horn and Key-Operated Arming

Commercial-Grade Exit Alarm Solution with Remote Arming Capability

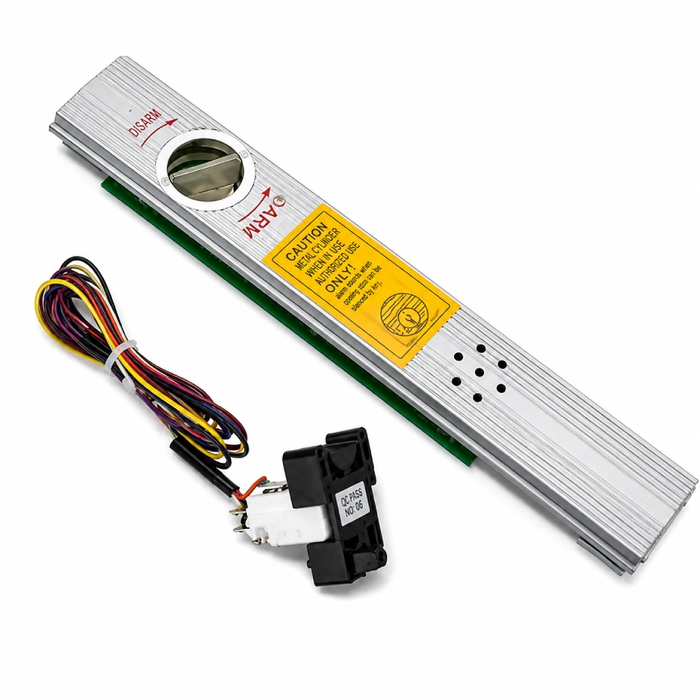

The Von Duprin 99-ALK Alarm Kit is a professional-grade electronic security accessory engineered for use with Von Duprin 98 & 99 Series exit devices. When the touch bar is depressed, an internal horn emits an 85-decibel audible signal to instantly alert personnel to any unauthorized breach of the opening. Operating on a single standard 9-volt alkaline battery, the 99-ALK delivers long-lasting, reliable performance and includes a 24VDC input and External Inhibit as standard features for remote arming and disarming capability. The key switch is compatible with a standard 1-1/4" (32mm) mortise cylinder with a straight cam (Schlage 20-001, L583-477 cam), ensuring seamless integration with existing security setups.

Professional Features & Benefits

• 85-Decibel Audible Alarm: Internal horn emits an 85dB signal when the touch bar is depressed, providing an immediate and powerful deterrent against unauthorized egress.
• Key-Operated Arming and Disarming: Convenient key switch allows authorized personnel to arm or disarm the alarm quickly, maintaining full control over the exit device's security mode.
• 24VDC Input and External Inhibit: Included as standard features, enabling remote arming and disarming for integration with access control and building security systems.
• Cylinder Compatibility: Key switch is compatible with a standard 1-1/4" (32mm) mortise cylinder with a straight cam (Schlage 20-001, L583-477 cam) for seamless installation with existing hardware.
• Battery-Powered Operation: Runs on a single standard 9-volt alkaline battery for reliable, self-contained performance independent of building power at the device level.
• Low Battery Alert: When the battery weakens, the horn emits an intermittent low battery alert signal, prompting timely replacement and ensuring continuous protection.
• Versatile Door Configuration Support: For 3' or 4' doors requiring cylinder dogging, the ALK can be relocated to the hinge side of the device, allowing standard cylinder dogging to be added. Note: standard dogging is removed when the ALK is used.
• Included Security Decal: Comes with a complimentary 6" x 20" decal displaying "EMERGENCY EXIT ONLY. ALARM WILL SOUND." for visible deterrence. RSS push bar trim may be specified as an alternative.
• Available Cover Styles: Offered in two styles—99ALK with a grooved cover and 98ALK with a smooth cover—to suit different aesthetic and application requirements.
• Grade 1 Commercial Rating: Rated Grade 1 for demanding commercial applications requiring dependable, high-cycle performance.

Technical Specifications

• Product Group: Electronic Access Controls
• Series: 98 & 99 Series
• Grade: Grade 1
• Product Subgroup: Exit Control Locks and Alarms
• Subcategory: Exit Control Locks and Alarms
• Product Type: Alarm Kit
• Commercial/Residential: Commercial
• Fire Rating: No
• Switch Device: Request to exit (RX)
• Product Category: Electronic Access Controls
• Department: Door Hardware

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments and Loss Prevention
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Von Duprin Quality?

Von Duprin alarm kit products deliver professional-grade reliability with Grade 1 commercial-rated construction designed for demanding exit control applications. The 99-ALK features an 85-decibel internal horn, 24VDC remote arming capability, and battery-powered operation with a built-in low battery alert, ensuring continuous and dependable security performance. Engineered for seamless integration with the 98 & 99 Series exit device platform, the Von Duprin 99-ALK is a trusted solution for commercial facilities where reliable egress control and audible deterrence are essential.
