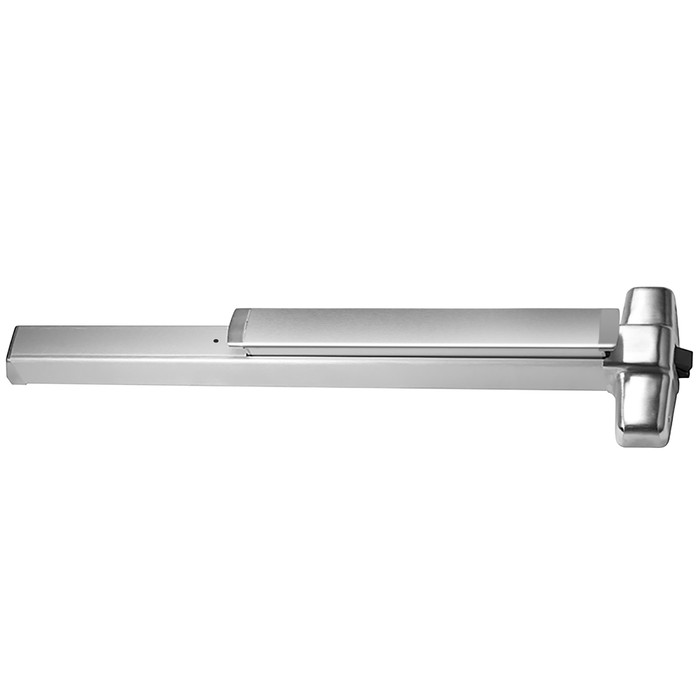

Von Duprin 9949-3ft Wide Stile Grooved Case Concealed Vertical Cable Exit Device, 36" Non-Handed, Grade 1

Von Duprin 9949-3ft Wide Stile Grooved Case Concealed Vertical Cable Exit Device, 36" Non-Handed, Grade 1

Heavy-Duty Concealed Vertical Cable Exit Device for Institutional and Commercial Applications

The Von Duprin 9949-3ft is a 36" wide stile concealed vertical cable exit device featuring the distinctive grooved mechanism case of the 99 Series, engineered for demanding institutional environments including schools, hospitals, and government buildings. Certified to ANSI/BHMA A156.3 2014 Grade 1 standards and listed to ANSI/UL 10C (fire-rated configurations) and ANSI/UL 305, this device is designed for use on single or double metal doors and is non-handed for flexible installation. With a 3/4" latch throw, a center case measuring 8" x 2-3/4" x 2-3/8", and a product projection of 3-13/16", the 9949-3ft delivers precision engineering and broad compatibility across a wide range of commercial door applications.

Professional Features & Benefits

• 36" Wide Stile Coverage: Designed for 36" doors with wide stile push pad construction, providing full-width actuation for reliable egress in high-traffic institutional settings.
• Grooved Mechanism Case: The 99 Series grooved case design distinguishes this device architecturally from the smooth 98 Series, offering a refined aesthetic suited to institutional and commercial environments.
• Non-Handed Configuration: The concealed vertical cable device is non-handed, simplifying specification and installation—except when SD (special dogging) or SS (signal switch) options are selected.
• Door Thickness Compatibility: Fasteners included for wood or metal doors 1-3/4" and 2-1/4" thick, ensuring broad compatibility across standard commercial door preparations.
• Precision Latch & Projection: Features a 3/4" latch throw and a product projection of 3-13/16", with a center case of 8" x 2-3/4" x 2-3/8" for consistent, reliable latching performance.
• ANSI/BHMA Grade 1 Certified: Certified to ANSI/BHMA A156.3 2014 Grade 1—the highest industry standard—along with ANSI/UL 305, CAN/ULC-S132, and ANSI/UL 10C and CAN/ULC-S104 for fire-rated configurations.
• Hex Key Dogging: Standard hex key dogging configuration allows the latchbolt to be held in the retracted position for push/pull traffic flow during business hours.
• Field-Configurable Options: A variety of field-configurable options are available, including retrofit kits (CDSI/HDSI dogging indicators, QEL electronic latch retraction, RX request-to-exit, LX latchbolt monitoring) to keep pace with evolving facility technology.
• Upgrade Options Available: Compatible with AX (ADA-compliant, certified to 5 lb. force requirements per 2010 ADA Chapters 404.2.7 and 30934 and 2013 California Building Code Chapter 11B-309.4), CX (CHEXIT delayed egress meeting NFPA and IBC requirements, 15-second delay), and XP (patented 2-piece latchbolt design) upgrade configurations.
• Broad Trim Compatibility: Supports 990 pull trim (Classroom, Storeroom, Dummy, Passage, Exit Only) and 996 lever or knob trim (Classroom, Storeroom, Dummy, Passage) for versatile function selection.

Technical Specifications

• Series: 98 & 99 Series
• Grade: Grade 1
• Fasteners: Included for wood or metal doors 1-3/4" and 2-1/4" thick
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Concealed Vertical Rod
• Subcategory: Concealed Vertical Rod Exit Devices
• Latch Throw: 3/4"
• Commercial/Residential: Commercial
• Stile Type: Wide Stile
• Center Case Dimensions: 8" x 2-3/4" x 2-3/8"
• MAP Policy: Yes
• Product Model: 9949-3ft
• Door Hand Direction: Non-Handed
• Door Thickness Range: 1-3/4"
• Product Size: 36"
• Dogging Configuration: Hex Key Dogging
• Fire Rating: No
• Product Projection: 3-13/16"
• Product Style: Push Pads
• Product Category: Exit Devices and Trim
• Department: Door Hardware

Professional Applications

• Educational Facilities and Schools
• Hospitals and Healthcare Institutions
• Government and Municipal Buildings
• Commercial Office Buildings
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential and Mixed-Use Properties

Why Choose Von Duprin Quality?

Von Duprin concealed vertical cable exit devices are certified to ANSI/BHMA A156.3 2014 Grade 1—the highest industry standard—and listed to ANSI/UL 305, ANSI/UL 10C, CAN/ULC-S104, and CAN/ULC-S132, ensuring compliance in the most demanding institutional applications. The 9949-3ft is engineered with a breadth of field-configurable and retrofit options, allowing facilities to adapt the device to evolving security and access control requirements without full replacement. Trusted by schools, hospitals, and government facilities, Von Duprin exit devices deliver the heavy-duty performance and long-term reliability that commercial door hardware professionals depend on.
