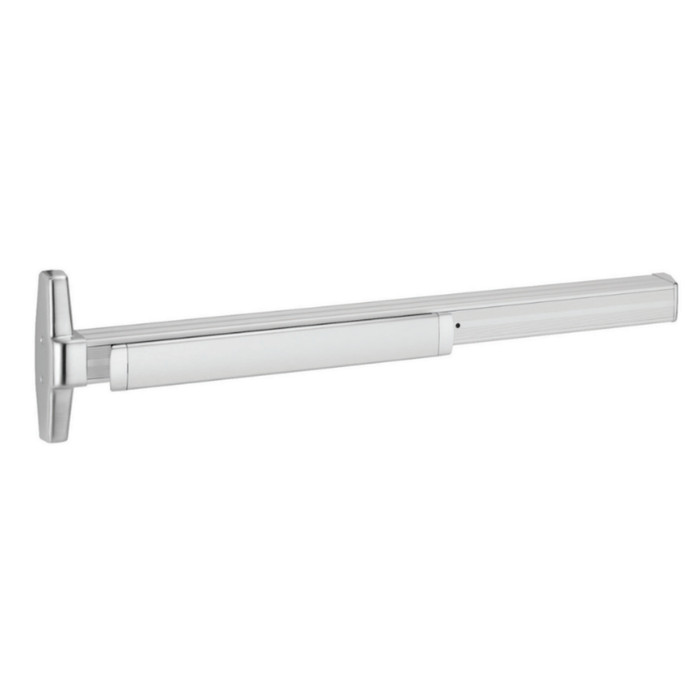

Von Duprin RX-LC-QEL-3549A-NL-OP-36-626-CON CVR Panic with 388 Trim - CON QEL is a highly reliable and versatile panic exit device designed for hollow metal single and double doors. This UL listed device meets ANSI A156.3 – 2008 (LBL option 2014) grade 1 standards, ensuring robust performance and safety. Featuring a smooth mechanism case, this concealed vertical cable device is non-handed, providing flexible installation options. The RX-LC-QEL-3549A accommodates door sizes from 2' to 4', making it suitable for various applications. With a deadlocking anti-friction latch bolt that offers a 1/2" throw, it ensures secure locking. The device’s centerline from the finished floor is set at 39 13/16", while its compact center case measures 8 13/16" x 2 13/32" x 1 9/16". Equipped with a hex key dogging feature, this device can be further enhanced with electrified options such as the Quiet Electric Latch Retraction (QEL) and Request to Exit (RX) functionalities. Its brushed chrome finish (626) not only contributes to its aesthetic appeal but also ensures durability. With easy installation and a broad range of mechanical and electrical options, the Von Duprin RX-LC-QEL-3549A is an excellent choice for enhancing safety and access control in any commercial environment.

Notice: The info below is not item specific.

Specifications:

• Device Lengths:
• 2' - 2' (610 mm) door size
• 3' - 2'4' to 3' (660mm to 914mm) door size
• 4' - 2'8" to 4' (813mm to 1219mm) door size
• Device Centerline From Finished Floor: 39 13/16" (1006mm)
• Center Case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism Case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
• Projection:
• Push bar neutral – 3 13⁄16" (97mm)
• Push bar depressed – 3 1⁄16" (78mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw
• Door Undercut: 3/4" (19mm) maximum
• Top and Bottom Latch Case: 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)
• Vertical Cables: 7/32" (6mm) diameter stainless steel cables
• Fasteners and Sex Bolts (SNB):
• Includes 1 3/4" (44mm) – 2 1/4" (57mm) metal doors
• #425 SNB furnished standard for end case
• #325 SNB furnished standard for EO (exit only device)
• Electrified Options:
• ALK: Alarm exit kit
• CX: Chexit delayed exit
• EL: Electric latch retraction
• ESL: Emergency Secure Lockdown
• HD-EL: Electric latch retraction with hex dogging
• LX: Latch bolt monitor switch. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• LX-RX: Request to exit / latch bolt monitoring. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• QEL: Quiet electric latch retraction
• RX: Request to exit
• WP-RX: Request to exit, waterproof option
• RX-LC, LX-LC, LX-RX-LC: Low current option for RX, LX, LX-RX. For 33/3549A devices, LX switch monitors trim input or electric dogging of EL/QEL devices. LX switch does not monitor latch bolt condition.
• SS: Signal switch
• CON: Allegion Connect
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• HH: Hurricane
• INS-2/INS-4: Insulclad kits 1/2" / 1/4" panels
• LBL: Less bottom latch
• PL: Pullman latch
• PN: Pneumatic
• SEC: Security screws
• SG: Safety glow
• SNB: Sex bolts
• WH: Weep holes
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• LD: Less dogging
• Strikes:
• 249: Top
• 349: Bottom

Trim:

• EO: No Outside Trim, Exit Only
• DT: Dummy Trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim cylinder
• NL-OP: Night Latch, Operational Pull
• Key retracts latchbolt, pull required
• K/L: Lever/Knob
• Key locks and unlocks
• Rim and 1-1/4" mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• L-BE/K-BE: Lever/Knob, Blank Escutcheon
• Always operable (no cylinder)
• TP: Thumbpiece
• Key locks and unlocks
• 1-1/4" mortise cylinder
• TL-BE: - Turn Lever, Blank Escutcheon
• Blank escutcheon always operable (no cylinder)
• TL: Turn Lever
• Key locks and unlocks (use with DT trim)
• 1-1/4" mortise cylinder
• TP-BE: Thumbpiece, Blank Escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)
• TL-OP: Turn Lever, Optional Pull

Finishes:

• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 622/711 - Matte black/matte black, anodized
• 625 - Bright chrome
• 626 - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 628 - Aluminum, anodized
• 630 - Satin stainless steel
• 630AM - Satin stainless, antimicrobial
• 643e - Aged bronze
• 693 - Black, painted (not flat powder)
• 710 - Dark brown, anodized
