Von Duprin CX9957EO 3-Point De...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,354.00
$3,498.95

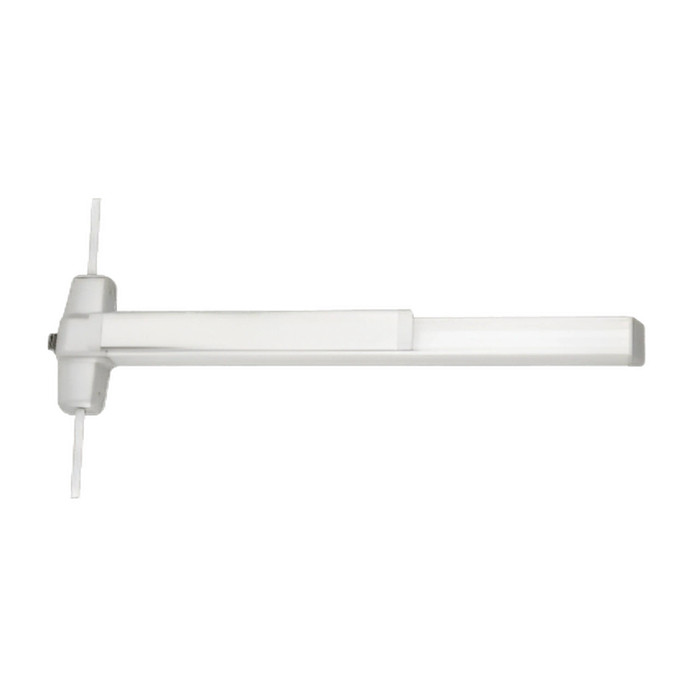

Von Duprin CX9957EO Series Grade 1 3 Point Exit Bar, 36" Field Reversible,84" Door Height, Exit Only, Delayed Egress Device 15 Seconds, Less Dogging, Rod Guards

Von Duprin CX9957EO 3-Point Delayed Egress Exit Bar, 36" Field Reversible, 84" Door Height, Exit Only with Rod Guards

(No reviews yet) Write a Review

Model: QEL9927EO US26D 36
From the 99 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,354.00
$3,498.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Von Duprin CX9957EO 3-Point Delayed Egress Exit Bar, 36" Field Reversible, 84" Door Height, Exit Only with Rod Guards

9957 Series 3-Point Locking Delayed Egress Exit Device

The Von Duprin CX9957EO is a Grade 1, 9957 Series 3-Point Locking Delayed Egress Exit Bar engineered for 36" field-reversible doors up to 84" in height. Featuring a 15-second delayed egress function, this exit-only device ships configured for EO/DT/NL operation with field-selectable functions, and is UL listed for panic exit hardware. The grooved case design covers stock hollow metal doors with 86 or 161 cutouts, and the unit includes rod guards for added protection. Device lengths accommodate door sizes from 2'10" to 4' (864 mm to 1219 mm), with a device centerline from finished floor at 39 13/16" (1011 mm).

Professional Features & Benefits

  • Delayed Egress Operation: 15-second delayed egress function provides controlled egress compliance for secured commercial openings requiring timed exit delay.
  • Field-Reversible Design: 36" field-reversible configuration allows on-site handing adjustment; non-handed except when SD (special dogging) or SS (signal switch) options are used.
  • Comprehensive Dimensional Specifications: Center case dimensions of 8" x 2 3/4" x 2 3/8" (203mm x 70mm x 60mm); mechanism case dimensions of 2 1/4" x 2 1/4" (57mm x 57mm); top & bottom latch case of 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm).
  • Three-Point Latching System: Deadlocking anti-friction top & bottom bolt with 5/8" (16mm) throw and deadlocking rim bolt with 3/4" (19mm) throw for superior door security at three latch points.
  • Pushbar Projection: Pushbar neutral projection of 3 13/16" (97mm); pushbar depressed projection of 3 1/16" (78mm) for ergonomic and code-compliant operation.
  • Vertical Rod Construction: 1/2" square tubing standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); bottom rod length: 31 1/2" (794mm). Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One-piece top rod available for 8' (2438mm) and 10' (3048mm) doors.
  • Rod Guards Included: Rod guards are included to protect vertical rods from damage and tampering in high-traffic or demanding environments.
  • Hollow Metal Door Compatibility: Designed to cover stock hollow metal doors with 86 or 161 cutouts for straightforward installation on standard commercial door preparations.
  • Fastener Package Included: Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Technical Specifications

  • Series: 99 Series
  • Grade: Grade 1
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Devices - Delayed Egress
  • Product Type: Exit Devices - Delayed Egress
  • Subcategory: Rim Exit Devices
  • Commercial/Residential: Commercial
  • Product Model: 99
  • Collection: 99 series
  • Product Size: 36"
  • Product Style: Pushpad
  • Product Category: Exit Devices and Trim
  • Department: Door Hardware

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties

Delayed Egress Compliance

The Von Duprin CX9957EO features a 15-second delayed egress function, providing controlled and timed exit capability for secured openings where delayed egress compliance is required. This field-selectable functionality supports a range of exit-only applications in commercial environments subject to applicable life safety and building codes.

Why Choose Von Duprin Quality?

Von Duprin 9957 Series exit devices deliver professional-grade reliability with a UL-listed panic exit hardware rating and Grade 1 performance for demanding commercial applications. The three-point latching system, grooved case construction, and included rod guards reflect Von Duprin's commitment to durable, code-compliant door security hardware. Engineered for high-traffic commercial openings where dependable delayed egress performance and long-term reliability are essential.

Manufacturer Resources

Von Duprin 98/99 Series Catalog

Product Specs

Series:
99 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Delayed Egress
Product Type:
Exit Devices - Delayed Egress
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Product Model:
99
Collection:
99 Series
Product Size:
36"
Product Style:
Pushpad
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Von Duprin QEL9927EO US26D 36 – Frequently Asked Questions

1) Will the Von Duprin CX9957EO fit a 36 inch wide door, and what door widths does it cover?
The CX9957EO is a 36 inch device, and the 9957 device lengths cover doors from 2'10" to 4' (864 mm to 1219 mm). Mount it with the device centerline at 39 13/16" (1011 mm) from finished floor. It is field reversible, so handing is set on site.
2) What door thickness does the CX9957EO screw pack cover?
The included screw pack covers metal or wood doors from 1 3/4" (44mm) to 2 1/4" (57mm) thick, and 325 SNB sex nuts and bolts are supplied for the top and bottom latch. For thicker leaves, 425 SNB is the optional substitute.
3) Will the CX9957EO work on a door taller than 84 inches?
Standard 1/2" square tubing rods ship for 7' (2134mm) doors, with a 34 15/16" (887mm) top rod and 31 1/2" (794mm) bottom rod. Above 7', order extension rods in 1' (205mm) or 3' (914mm) lengths, or a one-piece top rod for 8' (2438mm) and 10' (3048mm) doors. The device as configured here is set up for an 84 inch door height.
4) What does three-point latching actually get me over a standard rim exit device?
Three-point latching secures the door at the head, the threshold, and the strike jamb instead of at one point. The top and bottom bolts are deadlocking anti-friction with a 5/8" (16mm) throw, and the rim bolt is deadlocking with a 3/4" (19mm) throw. A plain rim device latches only at the jamb, which is fine for most openings but does not pull a tall or warped leaf tight top and bottom.
5) How does the 15 second delayed egress on the CX9957EO behave, and what is EO/DT/NL?
The CX device delays egress 15 seconds after the pushbar is pressed before the door releases, for secured openings where a timed delay is permitted by the authority having jurisdiction. It ships configured for EO/DT/NL with field-selectable functions: exit only (no outside trim), dummy trim, or night latch (key retracts the latch from outside). As listed it is the exit-only arrangement.
6) Will this exit bar cover the 161 cutout on my existing hollow metal door?
Yes. The grooved case is made to cover stock hollow metal doors prepped with 86 or 161 cutouts, so an existing cylindrical or mortise prep sits behind the device rather than needing a filler plate.
7) Is the CX9957EO handed, or can I set the hand in the field?
Non-handed as supplied and field reversible at 36 inches. The exception is SD (special dogging) or SS (signal switch) options, which make the device handed, so those have to be specified for the correct hand at order.
8) How far does the pushbar stick out into the corridor?
Projection is 3 13/16" (97mm) at rest and 3 1/16" (78mm) depressed. Worth checking against corridor clear width and any wall-mounted stop or adjacent leaf. The center case measures 8" x 2 3/4" x 2 3/8" (203mm x 70mm x 60mm), the mechanism case 2 1/4" x 2 1/4" (57mm x 57mm), and each latch case 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm).
9) Which finishes and operation options does the CX9957EO come in?
Two finishes, 626 satin chrome and 628 aluminum, each available as less dogging delayed egress or as less trim with quiet electric latch retraction. The QEL version pulls the latches electrically for access control or scheduled unlocking; the less dogging version is mechanical delayed egress only. Delayed egress devices do not mechanically dog, which is why the less dogging build is the standard one here.
10) Is this device Grade 1 and is it listed as panic hardware?
The CX9957EO is Grade 1 and UL listed for panic exit hardware, which is what a spec calling for Grade 1 panic hardware on a commercial egress door is asking for.
11) Are rod guards included with the CX9957EO or do I order them separately?
Rod guards are included. They shield the exposed vertical rods from carts, tampering, and impact, which matters on warehouse, school, and multi-tenant openings where surface rods take abuse.
12) Can I add outside trim later if I order the exit-only version?
The device ships exit only but the function is field-selectable among EO, DT, and NL, so a night latch or dummy trim arrangement can be set up on site. Trim itself is a separate order; the less trim QEL build is supplied without it.
