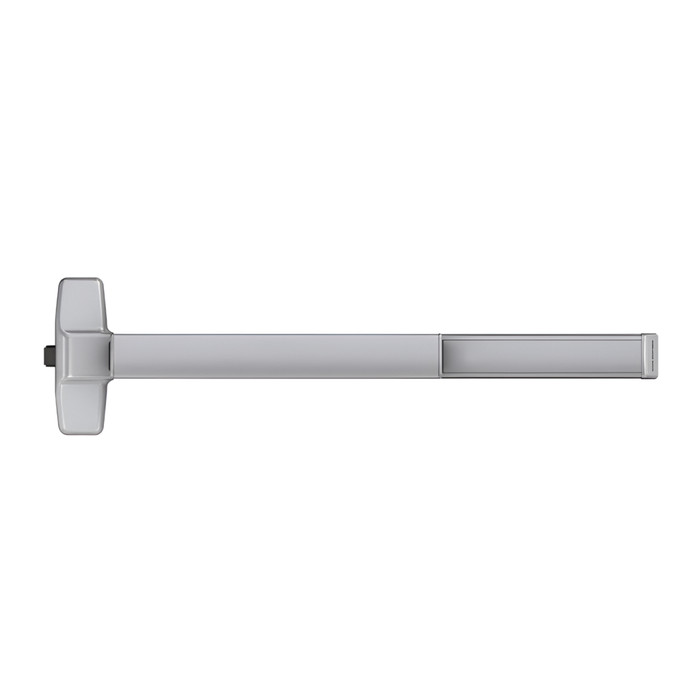

Von Duprin LDRXLC99EO 3 Grade 1 Rim Exit Device 626 Satin Chrome, 3Ft, Less Dogging, Exit Only with Low Current Request to Exit

Von Duprin LDRXLC99EO 3 Grade 1 Rim Exit Device 626 Satin Chrome, 3Ft, Less Dogging, Exit Only with Low Current Request to Exit

99 Series Industry-Standard Rim Exit Device with Integrated Low Current RX Switch

The Von Duprin LDRXLC99EO 3 is a Grade 1 Rim Exit Device from the renowned 99 Series, the industry standard for rim exit devices trusted worldwide in high-traffic commercial applications requiring maximum security and reliable life safety performance. Engineered for 3-foot door openings and finished in 626 Satin Chrome with a standard anti-microbial coating, this device is configured for Exit Only (non-keyed) operation with a Less Dogging design and an integrated Low Current Request to Exit (RX) switch rated at 0.25 Amp @ 24VAC/DC. The factory-installed internal RX switch detects pushpad movement to shunt alarms or signal access control panels, ensuring a secured and compliant opening. ANSI/BHMA A156.3 Grade 1 certified for the highest level of durability, security, and mechanical performance.

Professional Features & Benefits

• Door Size Compatibility: Designed for 3-foot standard openings and field-sizable, allowing precise field-cutting for smaller doors to ensure a proper fit across a range of applications.
• Integrated Low Current Request to Exit (RX): Factory-installed internal switch detects pushpad movement and sends a low-current signal to shunt alarms or release a mag lock on access control panels, preventing forced-door violations and ensuring compliant egress.
• Electrical Rating: Rated at 0.25 Amp @ 24VAC/DC for typical low current applications, providing reliable integration with access control and alarm systems.
• Grade 1 Life Safety Certification: ANSI/BHMA A156.3 Grade 1 certified for the highest level of durability, security, and mechanical performance in demanding commercial environments.
• Less Dogging for High Security: Designed without a dogging mechanism, ensuring the device remains rigid and secure at all times and preventing manual pushpad retraction for enhanced security.
• Deadlocking Latch Bolt: Features a 3/4" throw deadlocking latch bolt for positive latching and reliable door security on every use.
• Exit Only (Non-Keyed) Function: Optimized for interior or exterior doors requiring strict Exit Only functionality with no external trim or key bypass, ideal for controlled egress points.
• Anti-Microbial Satin Chrome Finish: The 626 Satin Chrome finish features an embedded anti-microbial coating to inhibit the growth of bacteria on high-touch surfaces, supporting hygiene in healthcare, educational, and public facilities.

Technical Specifications

• Subcategory: Parts and Accessories
• Product Group: Exit Device Trims
• Product Subgroup: Parts and Accessories
• Product Category: Exit Device
• Department: Door Hardware
• Device Series: 99 Series
• Device Type: Rim Exit Device (Panic Hardware)
• Grade: ANSI/BHMA A156.3 Grade 1
• Door Size: 3 Foot (Standard; Field-Sizable)
• Function: Exit Only (EO), Non-Keyed
• Electrical Feature: Low Current Request to Exit (RX) Switch
• Electrical Rating: 0.25 Amp @ 24VAC/DC (Typical Low Current Application)
• Dogging Feature: Less Dogging (LD)
• Latch Bolt: 3/4" Throw, Deadlocking
• Finish: 626 Satin Chrome
• Finish Coating: Standard Anti-Microbial

Professional Applications

• Commercial Office Buildings
• Educational Facilities and Schools
• Healthcare Institutions and Hospitals
• Government and Municipal Buildings
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties

Anti-Microbial Option

The Von Duprin LDRXLC99EO 3 features a standard anti-microbial coating embedded in the 626 Satin Chrome finish, designed to inhibit the growth of bacteria on high-touch pushpad surfaces. This makes it particularly well-suited for hygiene-sensitive environments such as healthcare facilities, schools, and public buildings where surface cleanliness is a priority.

Why Choose Von Duprin Quality?

Von Duprin 99 Series rim exit devices deliver professional-grade reliability as the industry standard for high-traffic commercial life safety applications, certified to ANSI/BHMA A156.3 Grade 1 for the highest levels of durability, security, and mechanical performance. The integrated Low Current Request to Exit switch rated at 0.25 Amp @ 24VAC/DC, combined with a 3/4" throw deadlocking latch bolt, Less Dogging security design, and anti-microbial 626 Satin Chrome finish, ensures dependable performance in schools, hospitals, government facilities, and other demanding environments where life safety compliance is essential.
