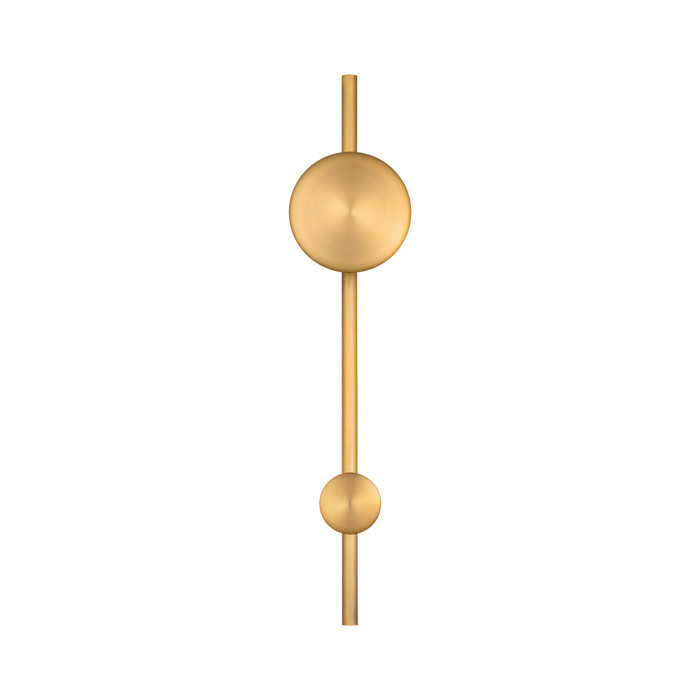

WAC Lighting WS1246 Clocker 4-CCT LED Wall Sconce, Aluminum
The WAC Lighting WS1246 Clocker 4-CCT LED Wall Sconce brings a sculptural, hourglass-inspired silhouette to any interior wall. Built with an Aluminum frame and a Frosted Acrylic diffuser, this fixture delivers a soft, even glow while offering field-selectable 4-CCT color temperature from 2700K to 4000K. A Universal Voltage driver (120V-220V-277V) is concealed in the backplate, and the fixture is ETL & cETL listed for Damp locations, ADA Compliant, and CEC and Title 24 Compliant for use in a wide range of commercial and residential projects.
Key Features
- 4-CCT Color Temperature: Built-in color temperature adjustability lets you switch between 2700K, 3000K, 3500K, and 4000K, with the option to pre-select or adjust color temperature in the field.
- Durable Construction: Aluminum frame paired with a Frosted Acrylic diffuser creates a balanced, hourglass-inspired form with a soft, harmonious glow.
- Universal Voltage Driver: Concealed 120V-220V-277V driver in the backplate simplifies specification across varied electrical systems.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmers for continuous, flicker-free dimming.
- High-Performance LED Engine: Replaceable LED source rated at CRI 90 with 50,000 rated hours and color temperatures spanning 2700-3000-3500-4000K.
- Total Wattage & Output: Draws 32W and delivers 1,720 lumens of flood beam-spread light for consistent wall-wash illumination.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Damp Locations
- ADA Compliant
- CEC and Title 24 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 1720
- Product Type: Indoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Wall Sconce
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 32
- Style: Modern;Transitional
- Mounting: Wall;Any
Typical Applications
- Residential and Commercial Wall Lighting
- Hospitality and Corridor Accent Lighting
- Bathroom and Vanity Wall Illumination
- ADA-Compliant Egress and Public Space Lighting
- Damp-Location Indoor Installations
Why WAC Lighting?
WAC Lighting pairs an Aluminum frame and Frosted Acrylic diffuser with a high-powered, replaceable LED engine rated for 50,000 hours and CRI 90, backed by ETL & cETL Damp location listing, ADA compliance, and CEC and Title 24 compliance. The result is a code-compliant, professional-grade wall sconce built for consistent performance and long service life.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Clocker
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 1720
- Product Type:
- Indoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Acrylic Diffuser
- Subcategory:
- Wall Sconce
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 32
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Wall;Any
- Department:
- Electrical
WAC Lighting WS124628-BK – Frequently Asked Questions
1) Can the WAC Clocker WS1246 sconce be installed in a bathroom near a shower?
The Clocker WS1246 carries a Damp location rating, ETL and cETL listed, so it works for bathroom and vanity walls and other indoor damp spots. Damp is not wet, so keep it out of direct spray and off exterior walls exposed to driven rain.
2) Will the WS1246 Clocker sconce work on 277V commercial circuits?
Yes. The driver is universal voltage, rated 120-240-277V and concealed in the backplate, so the same fixture specs into a 120V residential job or a 277V commercial lighting panel without ordering a different version.
3) Does the Clocker WS1246 meet ADA requirements for a corridor or egress path?
It is ADA compliant, which is why it gets used in corridors, public spaces and egress routes where wall-mounted fixtures have to stay within the allowed projection. It is also noted as CEC and Title 24 compliant for California work.
4) Do I have to pick a color temperature when I order the WS1246, or can the electrician set it on site?
No need to decide at order time. The Clocker is a 4-CCT fixture with 2700K, 3000K, 3500K and 4000K selectable, and the setting can be pre-selected or changed in the field. Handy if you are matching a building that runs 3000K in guest areas and 3500K in back of house off one stocked part.
5) What dimmers work with the WAC Clocker LED sconce?
Use an electronic low voltage (ELV) or TRIAC dimmer. Standard incandescent/magnetic low voltage dimmers are not the right control for this driver, and pairing the wrong one is the usual cause of flicker or a dead bottom end.
6) Is the WS1246 bright enough to be the only light in a hallway or powder room?
It puts out 1,720 lumens at 32W with a flood beam spread, so it washes a wall broadly rather than throwing a tight beam. That output carries a small powder room or works in a run for corridor lighting; for a large room treat it as part of the layer, not the sole source.
7) Do I need to buy bulbs for the WAC Clocker sconce, and what happens when the LED fails?
Bulbs are included. It is an integrated LED module running off a universal driver, rated 50,000 hours, and the LED source is replaceable rather than throw-away, so the fixture body stays on the wall at end of life. It is hardwired, not plug-in, so an electrician and a junction box are required.
8) What finishes does the Clocker WS1246 come in?
Two: Aged Brass and Black. Both are the same aluminum-frame fixture with a frosted acrylic diffuser, so you can mix finishes across a project without any change in output or driver.
9) Is the WS1246 good enough color rendering for hospitality guest rooms and vanity mirrors?
CRI 90, which is the threshold most hospitality and healthcare specs call for and the point where skin tones at a vanity mirror read correctly. Combined with the 2700K option it suits guest rooms; 3500K or 4000K suits back-of-house and corridors.
10) Can the Clocker sconce be mounted sideways or upside down?
Mounting is listed as wall, any orientation, so the hourglass form can go vertical or horizontal depending on how you want the wall wash to fall. Wiring still lands in the backplate where the driver sits.
