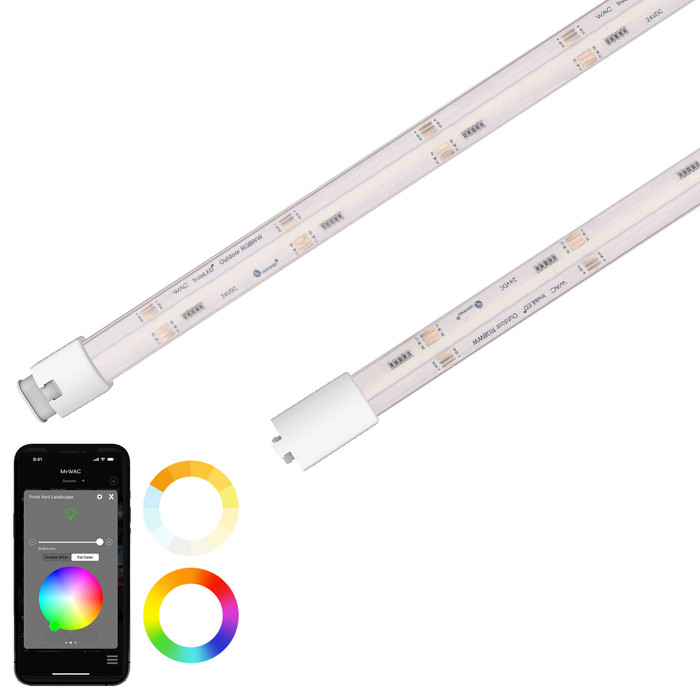

WAC Lighting OD1-01-CC Colorscaping 24V LED RGBWW Snap-On Strip Light
The WAC Lighting OD1-01-CC is part of the Colorscaping system, a fully tunable outdoor LED strip light delivering vibrant RGB color changes and adjustable white light from 2700K to 6500K. Rated IP66 for wet locations and finished with a UV-stabilized clear silicone jacket, this snap-on tape connects to a patented WAC Colorscaping Power Supply and integrates with the myWAC app plus smart platforms like Google Home and Amazon Alexa. Delivering up to 100Lm/ft at 3.6W/ft with an 85 CRI, it's built for professional-grade landscape and architectural accent lighting.
Key Features
- Customizable Length: Cut every 2" and seal ends with WAC End Cap accessories for a tailored fit to any run.
- Weatherproof Construction: IP66 rated clear UV-stabilized silicone jacket for durability against rain, snow, and sleet in wet-location installations.
- Effortless Connectivity: Clean push-in connectors simplify extending and powering the LED tape without specialty tools.
- Tunable Color Range: Adjusts from 2700K to 6500K plus millions of RGB colors, individually controlled or grouped via the myWAC iOS/Android app.
- High-Powered LED Output: Input 9-15V AC, 3.6W/ft (4VA/ft), up to 100Lm/ft, 85 CRI, and a 50,000-hour rated life.
- Smooth Dimming: Continuous dimming to 10% when paired with the Colorscaping Power Supply.
- Roll Length Options: Available in 1ft, 5ft, 10ft, 15ft, and 25ft rolls to suit project needs.
Certifications & Compliance
- UL & cUL 1598 Listed
- IP66 Rated for Wet Locations
Technical Specifications
- Bulb Base: LED Module - Transformer
- Bulb Shape: LED
- Bulbs Included: Yes
- Dimmable: MLV;APP
- Energy Star: No
- Lumens: 150
- Number of Bulbs: 1
- Product Type: Outdoor LED Strip Lighting
- Safety Rating: UL;cUL;IP66
- Shade/Glass Description: Clear UV Stabilized Coating
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Outdoor LED RGBWW Snap On 12V Strip Light
- Avg Rated Hours: 50000
- Beam Spread: 115
- Voltage: 12
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 3.6
- Color Temperature: 2700-6500
- Style: Functional
Typical Applications
- Landscape and Garden Accent Lighting
- Colorscaping Smart Outdoor Lighting Systems
- Architectural Facade and Vignette Lighting
- Walkway, Patio, and Wet-Location Installations
- Retrofit onto Existing 12V Landscape Lighting Systems
Why WAC Lighting?
WAC Lighting engineers the Colorscaping system with a UV-stabilized IP66 silicone jacket, UL & cUL 1598 listing, and PLC-based smart control over standard 12-2 landscape wire, giving installers a reliable, code-compliant path to tunable-white and full-color outdoor lighting. Backed by a 5-year functional and 2-year finish warranty, it's built for long-term performance in demanding outdoor environments.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Transformer
- Bulb Shape:
- LED
- Bulbs Included:
- Yes
- Collection:
- Colorscaping
- Dimmable:
- MLV;APP
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 150
- Number of Bulbs:
- 1
- Product Type:
- Outdoor LED Strip Lighting
- Safety Rating:
- UL;cUL;IP66
- Shade/Glass Description:
- Clear UV Stabilized Coating
- Subcategory:
- Outdoor LED RGBWW Snap On 12V Strip Light
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 115
- Product Voltage:
- 12
- Product Material:
- Silicon
- Location Rating:
- Wet
- Total Wattage:
- 3.6
- Light Temperature:
- 2700-6500
- Product Style:
- Functional
- Department:
- Electrical
WAC Lighting T24-OD1-01-CC – Frequently Asked Questions
1) Can the WAC Colorscaping OD1-01-CC strip light be installed outdoors in direct rain?
Yes. The OD1-01-CC carries an IP66 rating and a Wet location rating, with a clear UV-stabilized silicone jacket over the tape. That covers rain, snow, and sleet on landscape and facade runs. It is also UL and cUL listed.
2) Will the Colorscaping snap-on strip light run off my existing 12V landscape transformer?
No. The tape is a 12V product, but it needs the patented WAC Colorscaping Power Supply to work. That power supply is what carries the PLC control signal over standard 12-2 landscape wire and what provides the continuous dimming to 10 percent. You can reuse existing 12V landscape wiring runs, but a plain magnetic landscape transformer will not drive the color or white tuning.
3) Can I cut this WAC RGBWW tape to length on site?
Yes, it cuts every 2 inches. Any cut end has to be sealed with a WAC End Cap accessory to keep the IP66 integrity, so order end caps with the run. Connections elsewhere use push-in connectors, no specialty tools.
4) What white color temperatures can the Colorscaping OD1-01-CC produce, and can it match the rest of my site lighting?
White output tunes continuously from 2700K to 6500K, so you can set it to match warm 2700K path lights or push it cold for facade work, and it does full RGB color on top of that. CRI is 85. Because it is set in software, you can standardize several runs across a property to one temperature and change it later without swapping tape.
5) How much power do I need to budget per foot for this WAC strip light?
Figure 3.6W per foot, listed as 4VA per foot, with output up to 100 lumens per foot. Use the VA figure when sizing the Colorscaping power supply for a run.
6) How is the Colorscaping tape controlled, and does it work with Alexa or Google Home?
Control is through the myWAC app on iOS or Android, where runs can be addressed individually or grouped, and it integrates with Google Home and Amazon Alexa. The dimming method is listed as MLV and APP, so app control plus magnetic low voltage dimming at the supply.
7) What roll lengths does the WAC OD1-01-CC come in?
Rolls run 1ft, 5ft, 10ft, 15ft, and 25ft. Since the tape cuts every 2 inches, pick the roll above your measured run and trim, then cap the cut end.
8) Do I need to order LEDs or drivers separately for this tape?
The LED module is integral to the tape, so no lamps to buy, and the rated life is 50,000 hours. What you do add separately is the WAC Colorscaping Power Supply, end caps for any cut ends, and connectors for extending the run.
9) How wide does the light spread from this strip, and will it wash a wall evenly?
Beam spread is 115 degrees, which is a wide wash rather than a tight grazing beam. Mount it close to the surface for cove and under-cap accenting; for a narrow grazing effect on a textured facade you would want a tighter-optic fixture instead.
10) Is this WAC Colorscaping tape Energy Star certified for a rebate submission?
No, the OD1-01-CC is not Energy Star rated. Its listed compliance is UL and cUL 1598 plus the IP66 wet-location rating.
