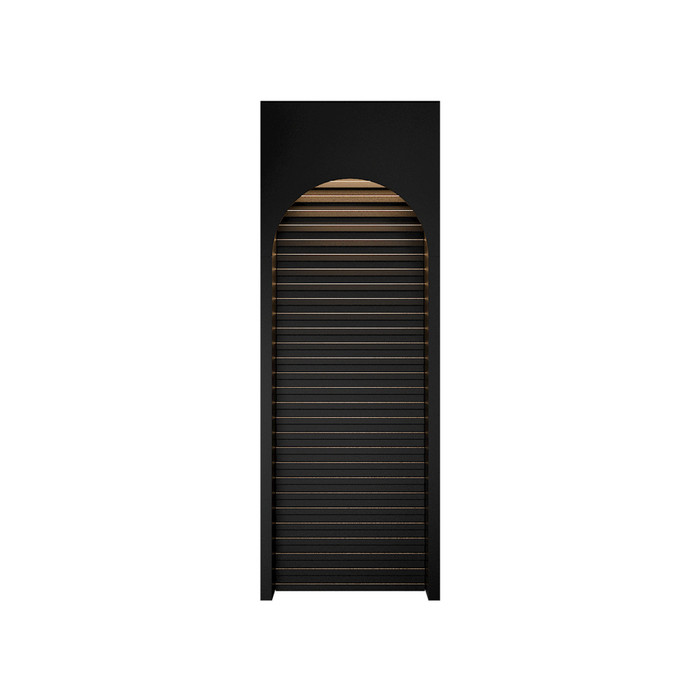

WAC Lighting BK Orlene LED Outdoor Wall Light, Aluminum
The WAC Lighting BK Orlene LED Outdoor Wall Light brings a clean, contemporary profile to entries, porches, and patios, casting a warm 3000K glow through horizontal louvers for downlight-only illumination. Built from durable Aluminum with a Glass diffuser and a weather-resistant Black powder coat, this ADA compliant sconce is ETL and cETL listed for Wet locations, rated 120V / 15.3W with 719 lumens and 90 CRI. AC LED technology needs no separate driver or transformer, mounting easily on a standard pancake junction box.
Key Features
- Durable Construction: Aluminum housing with a Glass diffuser for long-term outdoor performance.
- Weather-Resistant Finish: Powder-coated Black finish adds increased durability against the elements.
- AC LED Technology: No driver or transformer required — fits easily on a standard pancake junction box.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimming for continuous light control.
- High-Performance LED: Replaceable LED source rated for 719 lumens, 90 CRI, 3000K color temperature, and 50,000 rated hours.
- Electrical Rating: 120V, 15.3W total wattage for efficient, hardwired operation.
- Downlight-Only Design: Horizontal louvers direct light downward for subtle architectural style.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Wet Locations
- ADA Compliant
- CEC and Title 24 Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - ACLED
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 719
- Product Type: Outdoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Outdoor Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: Thailand
- Location Rating: Wet
- Total Wattage: 15.3
- Style: Contemporary
- Mounting: Wall;Down
Typical Applications
- Outdoor Wall-Mounted Lighting
- Entryways, Porches, and Patios
- Wet-Location and Exterior Installations
- ADA-Compliant Commercial and Residential Projects
- Pancake Junction Box Retrofits
Why WAC Lighting?
WAC Lighting engineers the Orlene series with Aluminum construction, a Glass diffuser, and a weather-resistant powder-coated finish to withstand demanding outdoor conditions. Backed by ETL and cETL Wet location listings, ADA compliance, CEC and Title 24 compliance, and a 5-year functional / 2-year finish warranty, this fixture delivers dependable, code-compliant performance with efficient AC LED illumination for professional electrical installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - ACLED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Orlene
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 719
- Product Type:
- Outdoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Glass Diffuser
- Subcategory:
- Outdoor Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120
- Product Material:
- Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 15.3
- Light Temperature:
- 3000
- Product Style:
- Contemporary
- Mounting Method:
- Wall;Down
- Department:
- Electrical
WAC Lighting WSW102616-BK – Frequently Asked Questions
1) Does the WAC Lighting Orlene outdoor wall light need a separate LED driver or transformer?
No. The Orlene sconce uses AC LED technology, so there is no remote driver or transformer to find room for. It wires straight to 120V line voltage as a hardwired fixture and mounts on a standard pancake junction box, which is what makes it workable on shallow exterior wall boxes.
2) Can the Orlene LED sconce be installed in an exposed outdoor location like an uncovered patio wall?
Yes. The Orlene is ETL and cETL listed for Wet locations, so it can go on walls that take direct rain, not just covered porches. Housing is aluminum with a glass diffuser and a black powder coat for weather resistance.
3) Will this WAC wall light meet ADA requirements for a corridor or egress path on a commercial building?
The Orlene is listed as ADA compliant, which is what matters when the fixture sits in a walking path or along an accessible route. It is also CEC and Title 24 compliant, so it clears California energy code on commercial and multi-family work.
4) What dimmer should I use with the Orlene AC LED sconce?
Use an electronic low voltage (ELV) or TRIAC dimmer. Those are the two control types the fixture supports for continuous dimming. A standard incandescent/magnetic low-voltage dimmer is not the right pairing here, so if you are replacing an old incandescent sconce, plan on swapping the dimmer too.
5) Does this fixture throw light up and down, or down only?
Down only. Horizontal louvers aim the output at the wall and ground beneath the fixture, with a flood beam spread. That makes it a fit where you want to light a doorway or walkway without uplight, and a poor choice if you were after an up/down wash on the facade.
6) How bright is the WAC Orlene, and what color does the light look?
719 lumens at 15.3W total, in a warm 3000K white with 90 CRI. That is entry and porch brightness rather than area lighting, and the 90 CRI keeps brick, stone, and paint colors reading accurately on a facade. LED source is rated for 50,000 hours.
7) Is the LED replaceable, or is the whole Orlene fixture disposable when the light fails?
The LED source is replaceable, and the fixture ships with the LED module installed, so nothing extra is needed at install. For a property manager standardizing exterior sconces across a site, that means a failed unit can be serviced instead of pulled and rewired.
8) What finish does the Orlene outdoor wall light come in?
Black only, as a powder coat over the aluminum body. If you are matching a run of exterior sconces across multiple entries, every unit lands at the same black finish, so there is no finish code to get wrong on the order.
9) Is the WAC Orlene Energy Star certified?
No, the Orlene does not carry Energy Star. It is CEC and Title 24 compliant, which covers California exterior lighting code, but if your rebate program or spec sheet specifically calls for Energy Star, this fixture will not satisfy that line.
10) Is there an installation guide for the WAC Orlene outdoor sconce?
Yes, WAC publishes an installation guide for the Orlene, available at https://zensupply.com/content/pdf/wac-lighting/installation-guide-98df26.pdf. It covers the hardwired 120V connection and the pancake box mounting.
